GF07.61-P-3007KE ME-SFI Maximum Engine Speed Limitation, Function

GF07.61-P-3007KE ME-SFI Maximum Engine Speed Limitation, Function
- up to model year 08

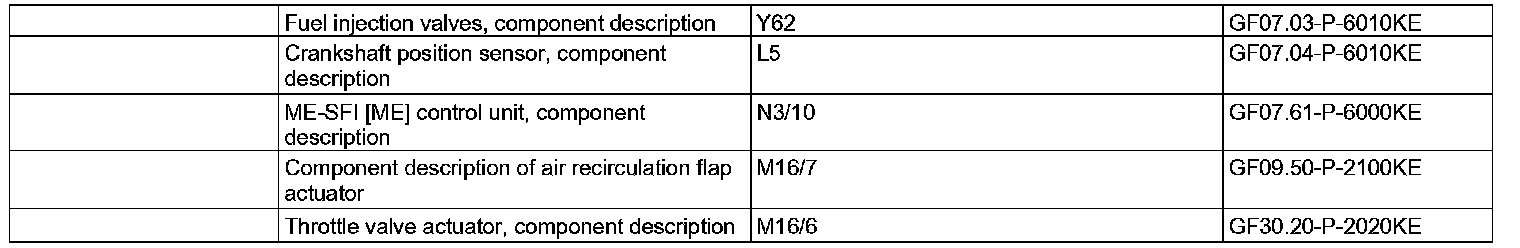

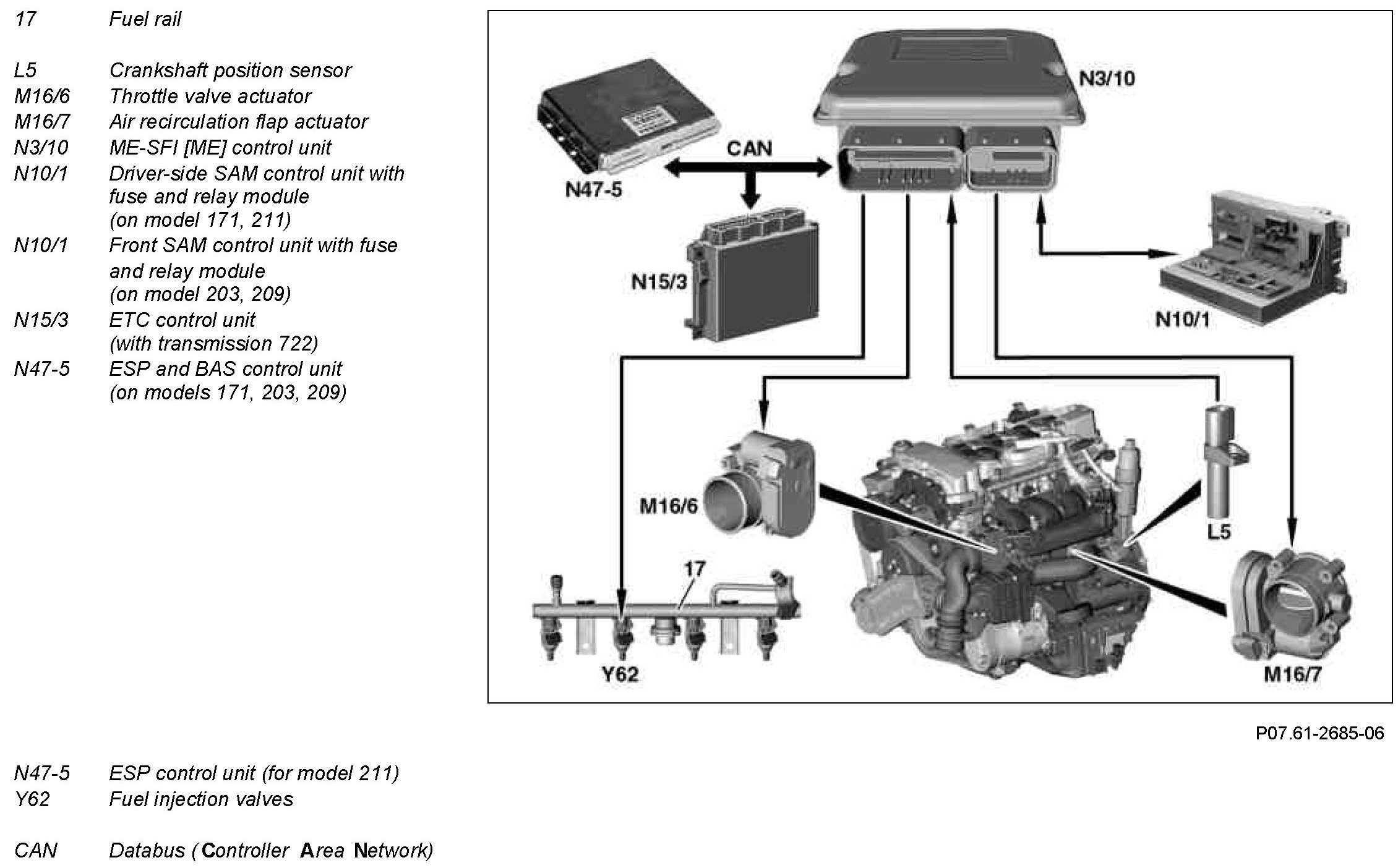

Component Identification:

The ME control unit detects the engine speed via the crankshaft position sensor signal. For protection of the engine and the drive train the maximum engine speed is limited, by:
^ Reducing the opening angle of the throttle valve actuator
^ Increasing the opening angle of the air recirculation flap actuator
^ Taking back the ignition angle
^ Cut-out of fuel injection valves

1. Transmission overload protection
1.1 Torque convertor protection (with transmission 722)
In order to protect the torque converter in selector lever positions P or N (no power flow) from excessive static internal pressure, the maximum engine speed is limited to approx. 4200 rpm.

1.2 Manual transmission protection (for transmission 716)
The engine speed is limited to approx. 4000 rpm to avoid damage to the transmission.

2. Limiting maximum engine speed when driving
In order to protect the engine from the consequences of impermissibly high engine revs, the engine speed is limited to approx. 6000 rpm.
The driving mode is detected from the vehicle speed signal.

3. Throttle valve actuator defective
In the event of a defective throttle valve actuator, the maximum engine speed is limited in idle to approx. 1400 rpm and in driving mode to approx. 1800 rpm.

4. Missing variant coding
If no variant coding exists, maximum engine speed is limited to 2400 rpm.
