Powertrain Management: Locations

GF07.61-P-0001-01PE (ME-SFI) Motor Electronics Fuel Injection And Ignition System, Location Of Components
- on the vehicle side model 203

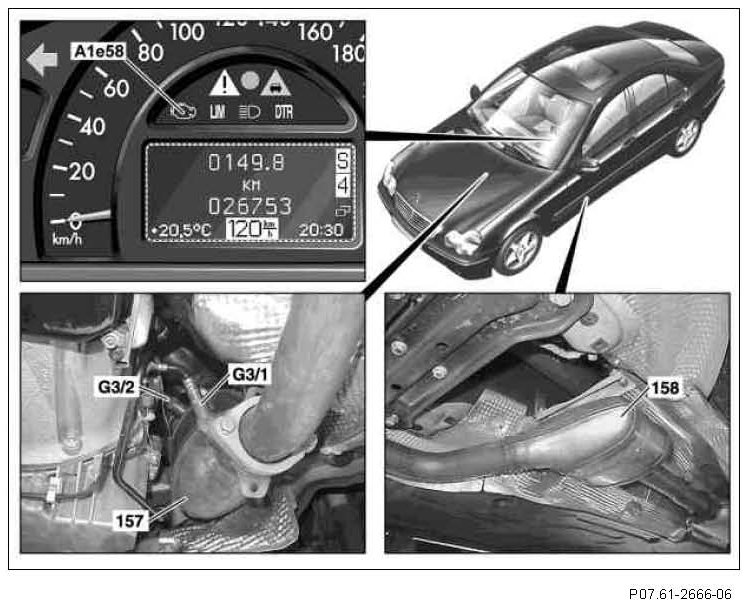

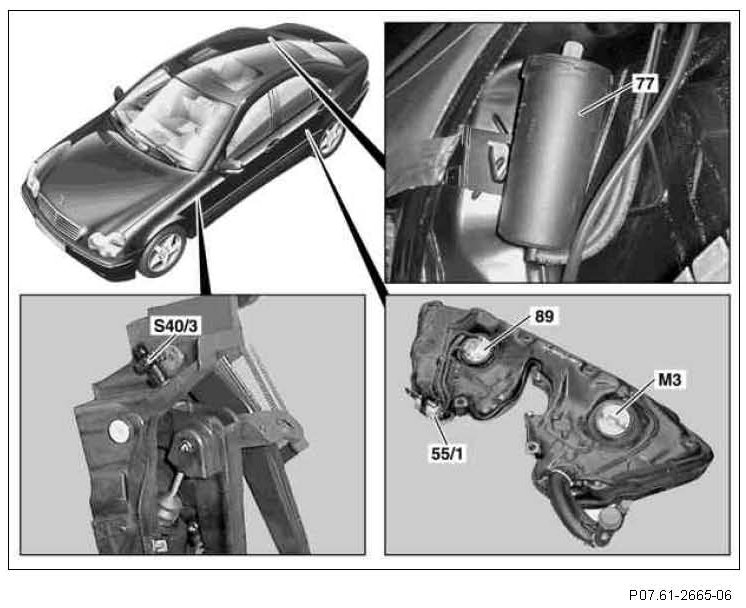

55/1 Fuel filter with integrated fuel pressure regulator
77 Activated charcoal canister (in wheel well at the right rear)
89 Left closing plate
M3 Fuel pump
S40/3 Clutch pedal switch (with transmission 716)





B37 Accelerator pedal sensor

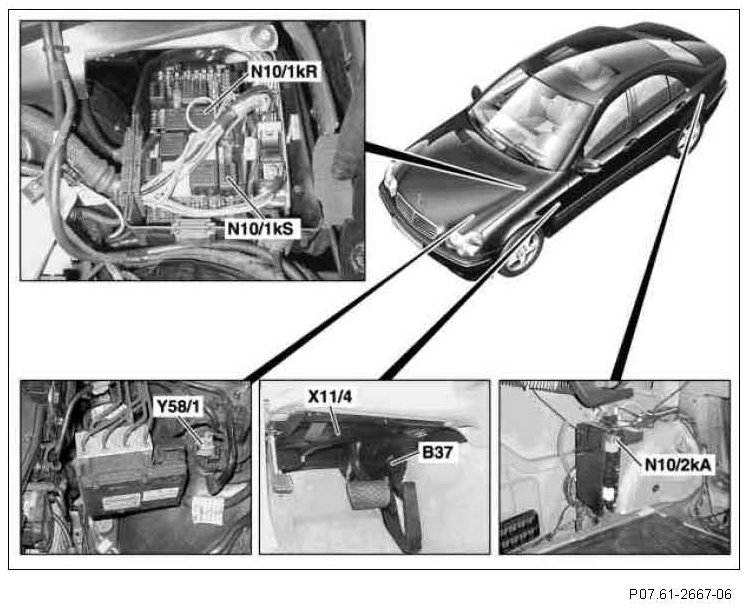

N10/1kR Circuit 87 relay, engine
N10/1kS Starter relay
N10/2kA Fuel pump relay
X11/4 Data link connector
Y58/1 Purge control valve
