A. Installation Preparation

1. Read these installation instructions in their entirety before proceeding.

2. Install the following relays and fuses if not present:

^ N10/1kP relay in the front SAM (N10/1)

^ N10/2kF relay in the rear SAM (N10/2)

^ N10/1f44, 5 amp fuse in the front SAM (N10/1)

^ N10/2f13, 5 amp fuse in the rear SAM (N10/2)

^ F34f40, 7.5 amp fuse in the interior fuse box (F34)

^ F34f36, 7.5 amp fuse in the interior fuse box (F34)

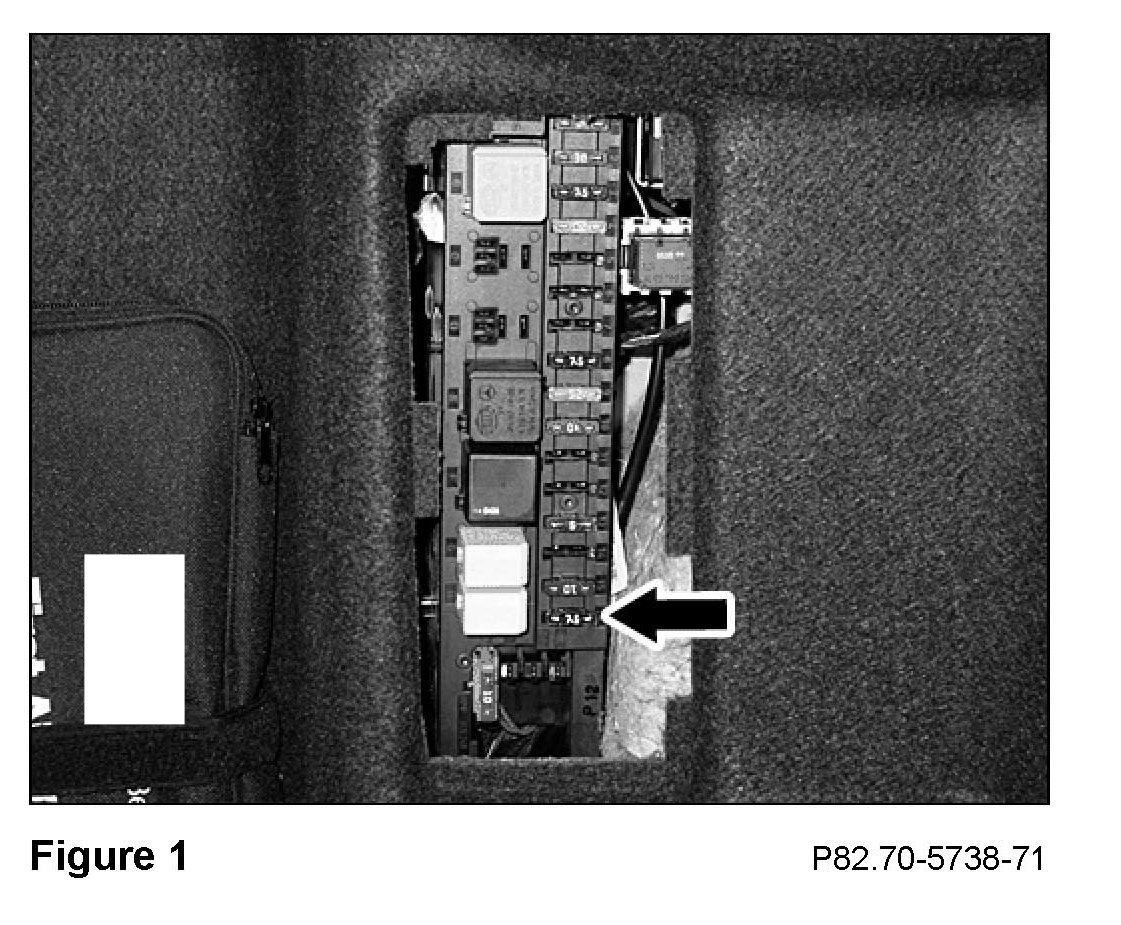

3. Insert the kit-included 7.5 amp fuse in slot # 16 (Figure 1) of the rear SAM control unit with fuse and relay module.

4. Unpack and compare the installation kit contents against the Parts Information list-Section M.

5. Place the operating guides and customer accessories in the glove box or appropriate storage or stowage compartment.

6. Expose the transmission tunnel area by pulling back the passenger side floor covering where it runs under the center console.

7. At the front of the trunk, remove the floor paneling, right side paneling, and plastic cover over the electronics compartment.

^ See WIS document AR68.30-P-4600P, Removing and installing paneling in trunk"
