D. Mounting and Connecting the Antenna Switch (Only If Equipped With Tele Aid)

1. Find the mounting area and antenna cable connectors for the antenna switch at the right side of the exposed electronics compartment at the front, right side of the trunk (Figure 5).





2. At the right side of the electronics compartment, disconnect the Tele Aid antenna lead from the main antenna lead (Figure 6).

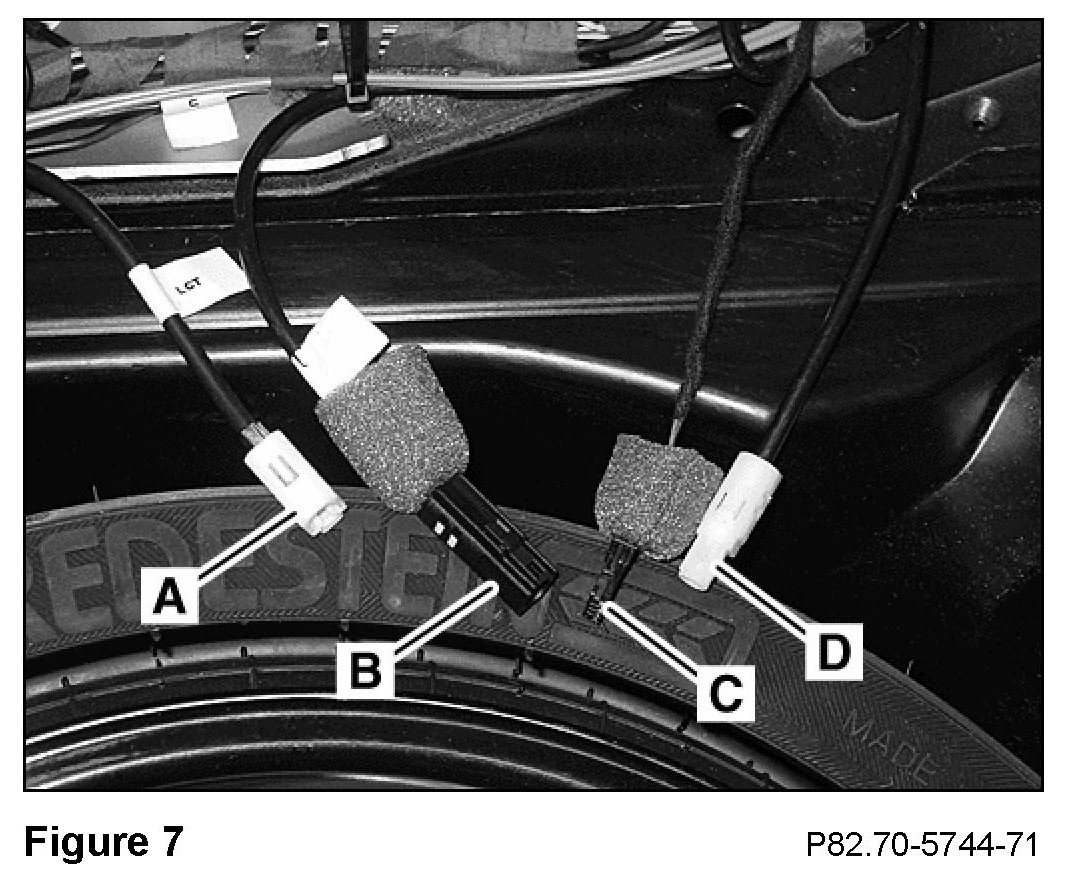

3. At the right side of the electronics compartment, remove or fold back the foam sleeves to expose the connectors and identify the:





^ Tele Aid lead (female, white FAKRA) (A, Figure 7)

^ Telephone lead (female, black FAKRA) (B, Figure 7)

^ 4-pin power supply connector (C, Figure 7)

^ Main antenna lead (white, male FAKRA) (D, Figure 7)





4. At the right side of the electronics compartment, mount the antenna switch to the fixed floor bracket with two self-tapping Phillips screws (Figure 8).





5. Connect the telephone lead (female, black FAKRA) to the antenna switch jack labeled "BOOSTER" (A, Figure 9).

6. Connect the Tele Aid lead (female, white FAKRA) to the antenna switch jack labeled "LCT" (B, Figure 9).

7. Connect the main antenna lead (male, white FAKRA) to the antenna switch jack labeled "ANTENNA" (C, Figure 9).

8. Connect the 4-pin power supply cable to the antenna switch (D, Figure 9).
