Cooling System - 'Coolant Level Too Low' Message

Date: June 20 2007

Order No.: P-B-01.40/18

Superceded:

Group: 01

SUBJECT:
Models 203.040/740

Equipped with M271 Engine, Up to engine number 271### 30 876341

Warning Message in Instrument Cluster: "Coolant Level Too Low" No External Coolant Loss

If you receive customer reports in the above model vehicles of the below warning message in the instrument cluster display, this may be caused by the sealing rings for the coolant ducts of the coolant pump between timing case and crankcase leaking which allows coolant to enter the oil pan via the timing case.

Warning Message in Instrument Cluster Display:

"Coolant level too low; and no external coolant loss detectable; engine oil level may be too high"

To resolve, perform the following procedure.

1. Remove the cylinder head cover.

2. Pressurize the cooling system.

3. Check whether coolant emerges at the relevant separation point between the timing case cover and the crankcase.

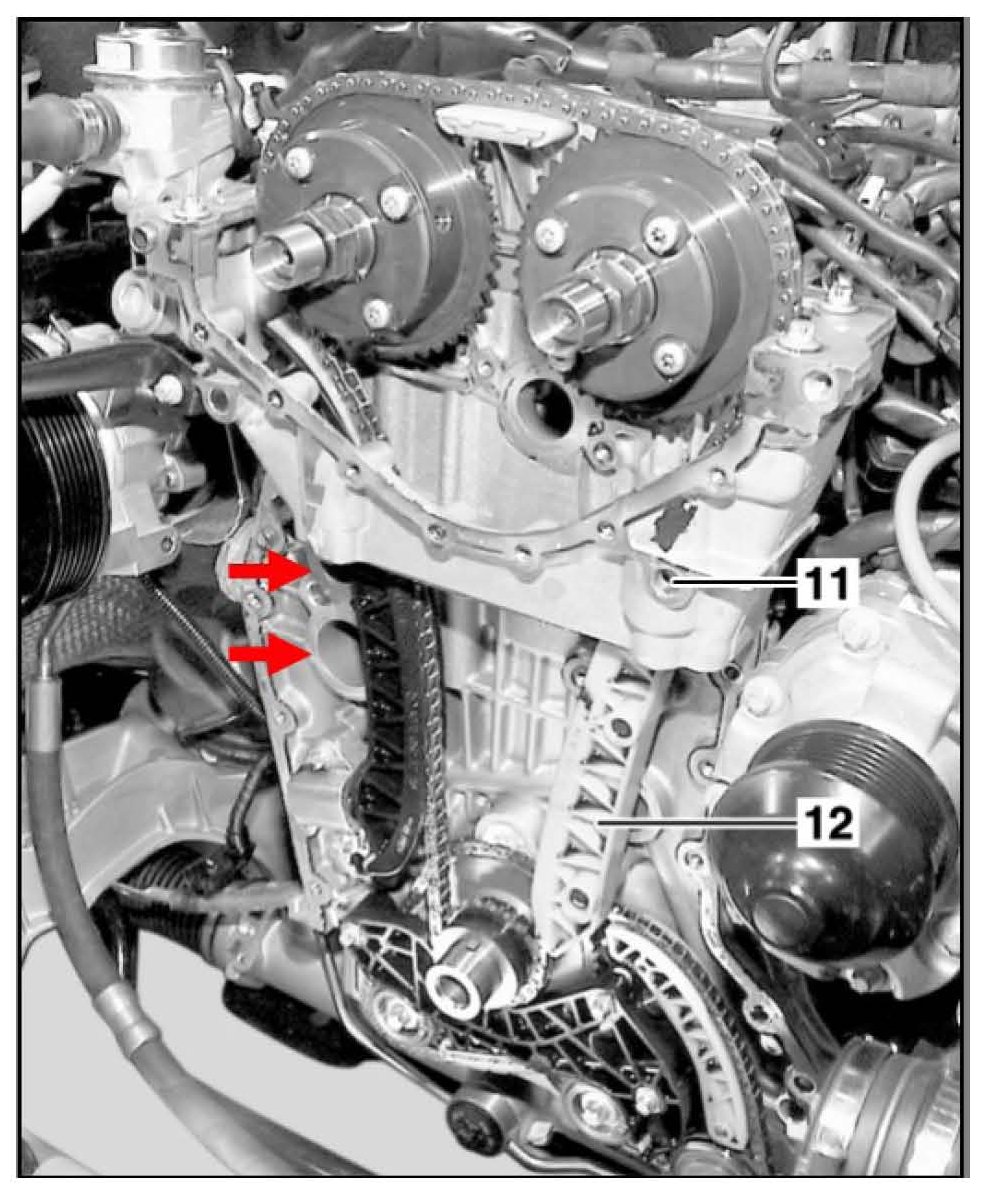

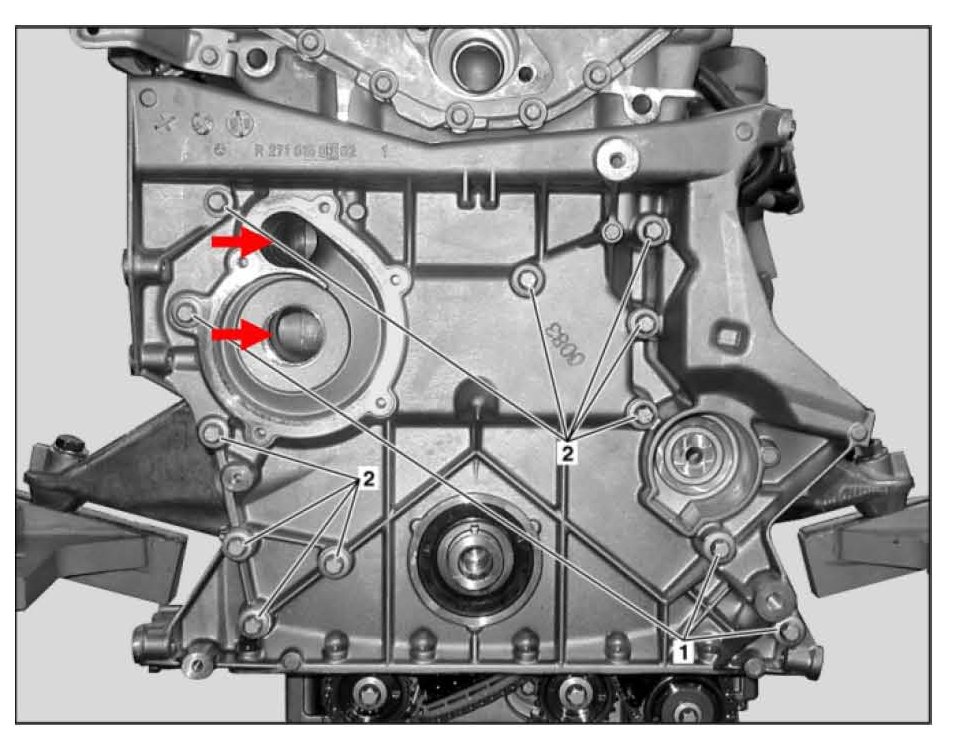

4. If coolant is emerging, remove and install the timing case cover and replace sealing rings. Refer to Figure 1 for seal locations and Figure 2 for sealing surfaces.

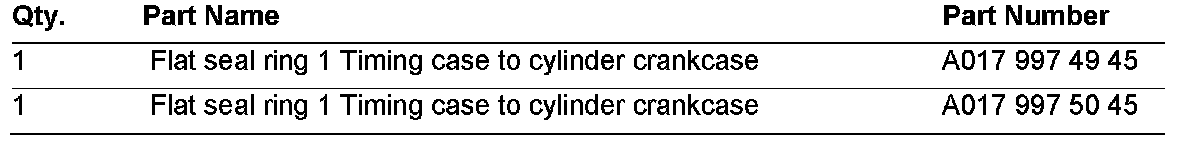

Parts Information

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on June 20, 2007. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.





In Case of Warranty, use the table.
