Suspension - Rear Axle Knocking Noises

Date: December 4, 2008

Order No.: P-B-32.20/69

Supersedes:

Group: 32

SUBJECT:
All Model 203 Vehicles

VIN Range A279000 up to A283305 and F213965 up to F214690

Knocking Noise from Rear Axle

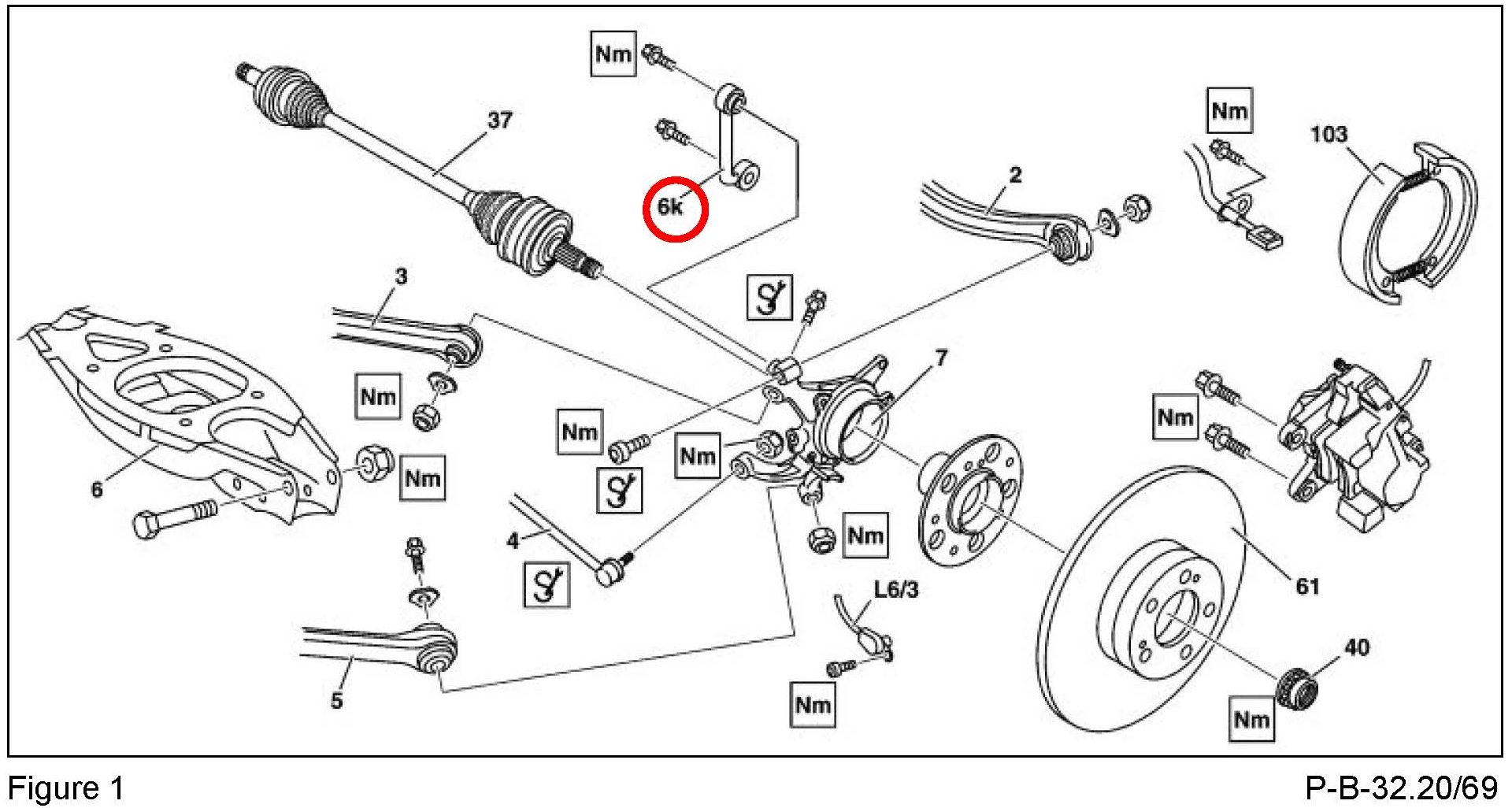

If you receive customer reports in the above model vehicles of a knocking noise from the rear axle area during normal driving operation, inspect the torsion bar link rod (Figure 1, 6k, circle) at the top of the attachment point to wheel carrier for axial play and replace the corresponding bolt if necessary. Refer to WIS document AF32.20-P-1500AG.

NOTE:
Torque for bolt -- link rod to wheel carrier 40 Nm (WIS document BA32.20-P-1005-04C).

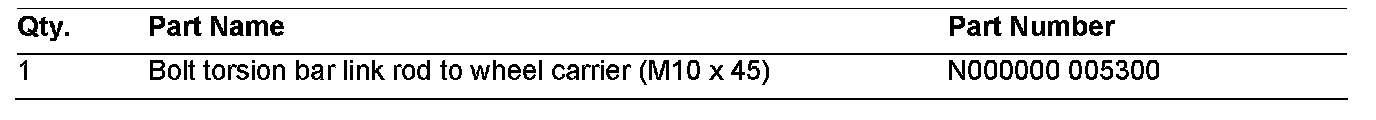

Parts Information

NOTE:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on December 4, 2008. Please refer to Netstar -> Star TekInfo -> Star Time for the most current labor time allowance.

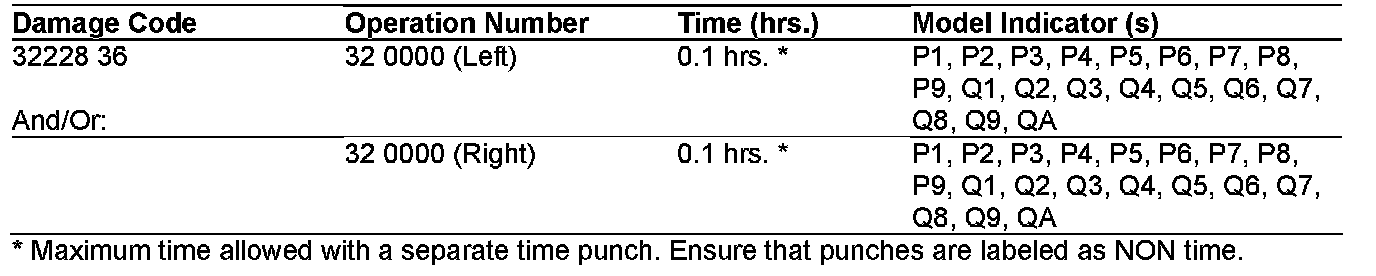

In Case of Warranty

Operation: Replace torsion bar link bolt (32-0000)
