Wipers/Washers - Wiper Arm Scraping/Striking Hood

Date: March 29, 2007

Order No.: P-B-82.30/572

Supersedes:

Group: 82

SUBJECT:
Model 203.040/052/054/056/061/064/065/076/081/084/092

Wiper Arm Scraping/Striking Engine Hood

If you receive customer reports in the above model vehicles of the wiper arm scraping or striking the bottom side of the engine hood during wiping sequence, this may be due to the wiper system being adjusted incorrectly. To resolve, check and adjust wiper system as per WIS document AR82.30-P-6400-01P.

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair.

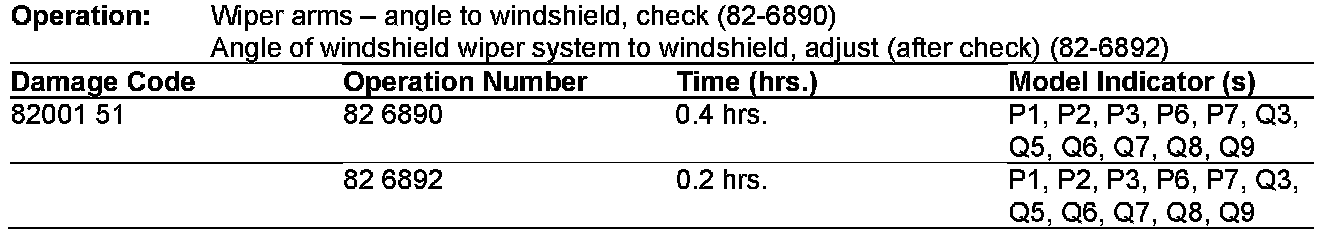

In Case of Warranty, use the table.
