Wiper Arm: Service and Repair



AR82.30-P-6100P Remove/Install Wiper Arm

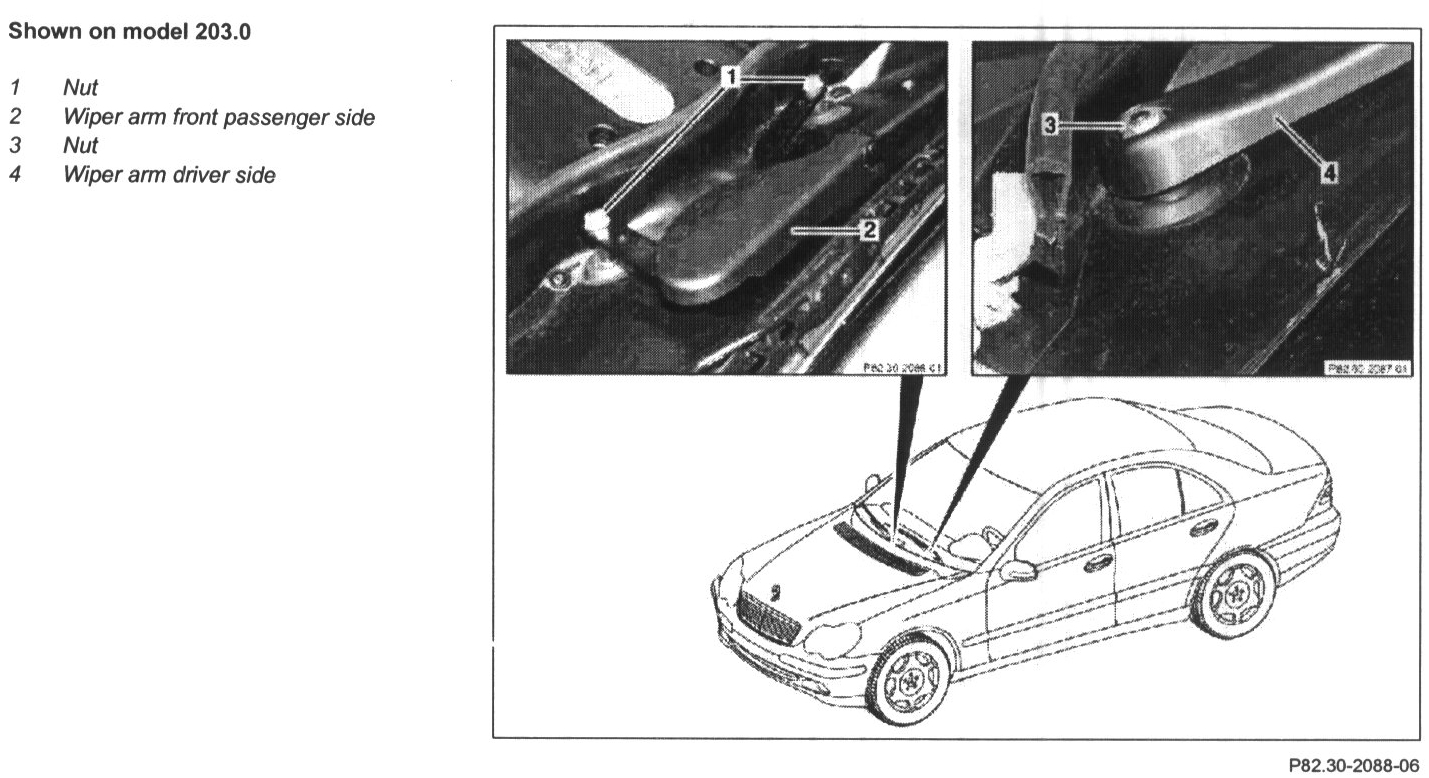

Shown On Model 203.0:






Shown On Model 203.0:






Removing


DANGER:
Injury Hazard Windshield wiper mechanism can pinch, crush or, in extreme cases even sever extremities.
- Always remove ignition key when working on windshield wiper mechanism.


1 Move wiper arms to park position
2 Open engine hood
3 Unscrew nuts (1)
4 Remove wiper arm (2)
5 Unscrew nut (3)
6 Remove wiper arm (4)

Installing
7 Move wiper motor to parking position
8 Place wiper arm (4) onto wiper system bevel gear

CAUTION: Wiper blade must lie exactly on mark A in the windshield screen printing

9 Screw on nut (3)

Nut on Wiper Arm - 20 N.m

10 Place wiper arm (2) onto wiper system bevel gear

CAUTION: The wiper blade must be positioned directly on the marking B in the printed screen of the windshield.

11 Screw on nuts (1)

Nut on Wiper Arm - 20 N.m

12 Close engine hood
13 Carry out operational check
