AZ54.65-P-0001-06PB Route Wiring Harness And Connect

AZ54.65-P-0001-06PB Route Wiring Harness And Connect












5 Adapter connector for right-hand rear lamp
6 Power supply wiring harness
7 Adapter plug for right-hand rear lamp
9 Connector for PTS control unit
10 Connector for wiring harness of power supply
11 Plug, quiet speaker
12 Plug, center speaker
13 Plug, loud speaker

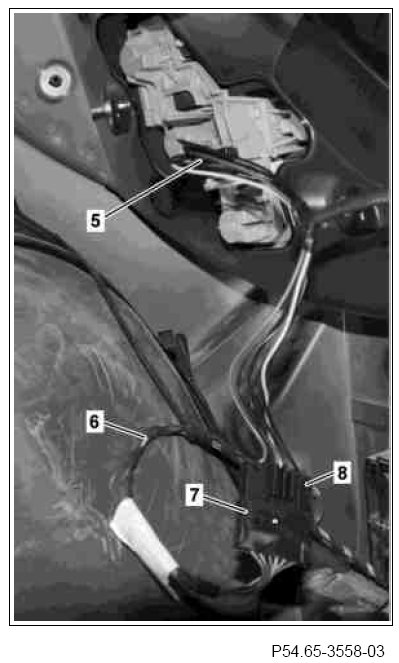

1 Disconnect vehicle's own connector from rear lamp and connect to adapter plug of right rear lamp (7) of the wiring harness of power supply (6).
2 Contact adapter connector for right rear lamp (5) of wiring harness of power supply (6) to right rear lamp.






3 Fasten PTS control unit (14) to side piece using double sided adhesive tape as per picture.
Bonding surfaces must be pretreated in accordance with adhesive tape manufacturer's instructions.

4 Contact connector of PTS control unit (9) with the PTS control unit (14).
The connector of the PTS control unit (9) is coded and only fits the PTS control unit (14) once.

5 Contact connector of wiring harness of power supply (10) of wiring harness of power supply (6) with plug of wiring harness of sensors of wiring harness of sensors.

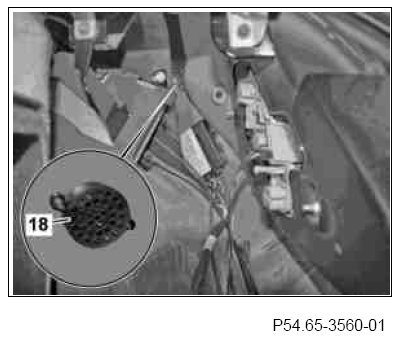

6 Stick double-sided adhesive tape (25 mm wide) to entire back of warning signal speaker (18) and stick warning signal speaker (18) to body as shown in the diagram.
Bonding surfaces must be pretreated in accordance with adhesive tape manufacturer's instructions.

7 Contact speaker connector of speaker to plug of center speaker (12).
The warning tone volume can be switched over to "loud" or "quiet" depending on the customer request.
