Cabin Air Filter / Purifier: Testing and Inspection

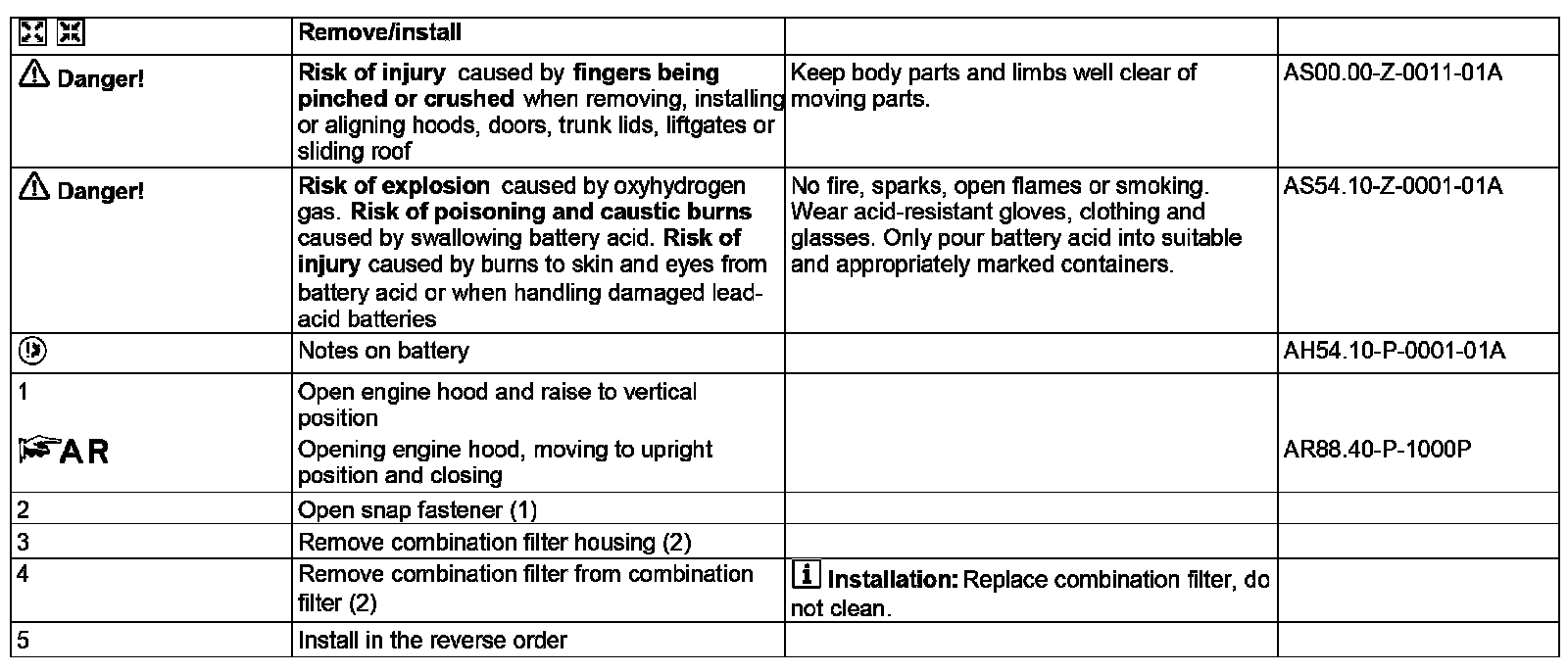

AP83.00-P-8384PC Replace Combination Filter
- MODEL 203.7## #E






1 Snap lock
2 Combination filter housing
