Compressor HVAC: Service and Repair

AR83.55-P-5300AC Remove/install Refrigerant Compressor
- with CODE (580) Automatic air conditioning
- with CODE (581) Convenience automatic air conditioning

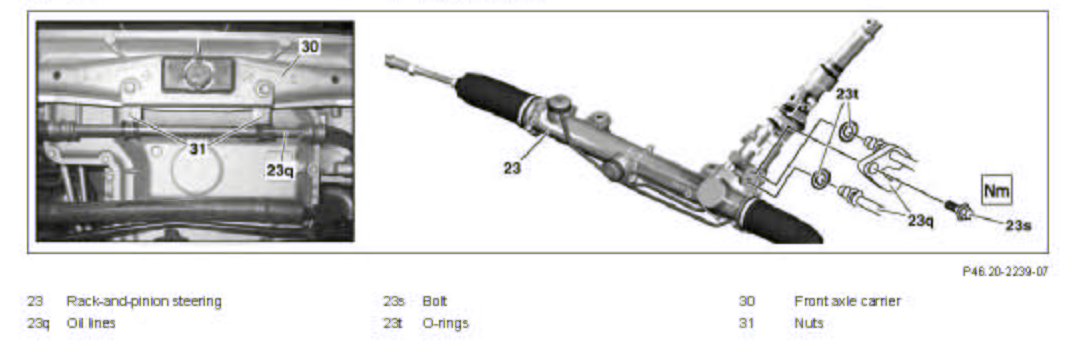

Component Identification:

Component Identification:

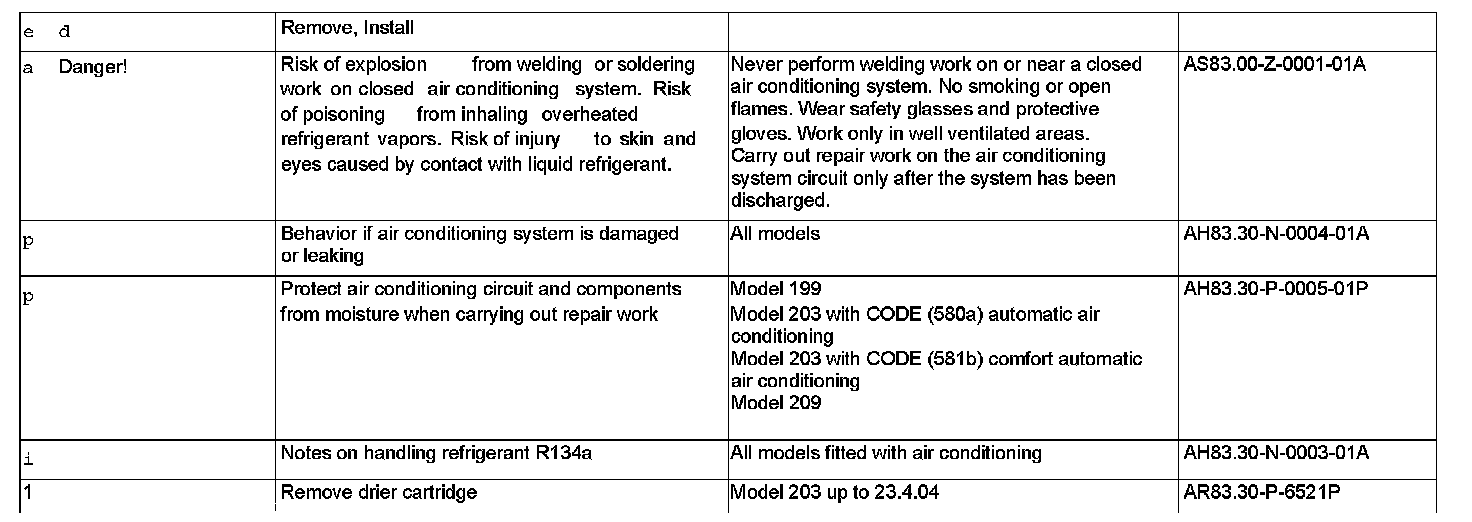

Step 1:

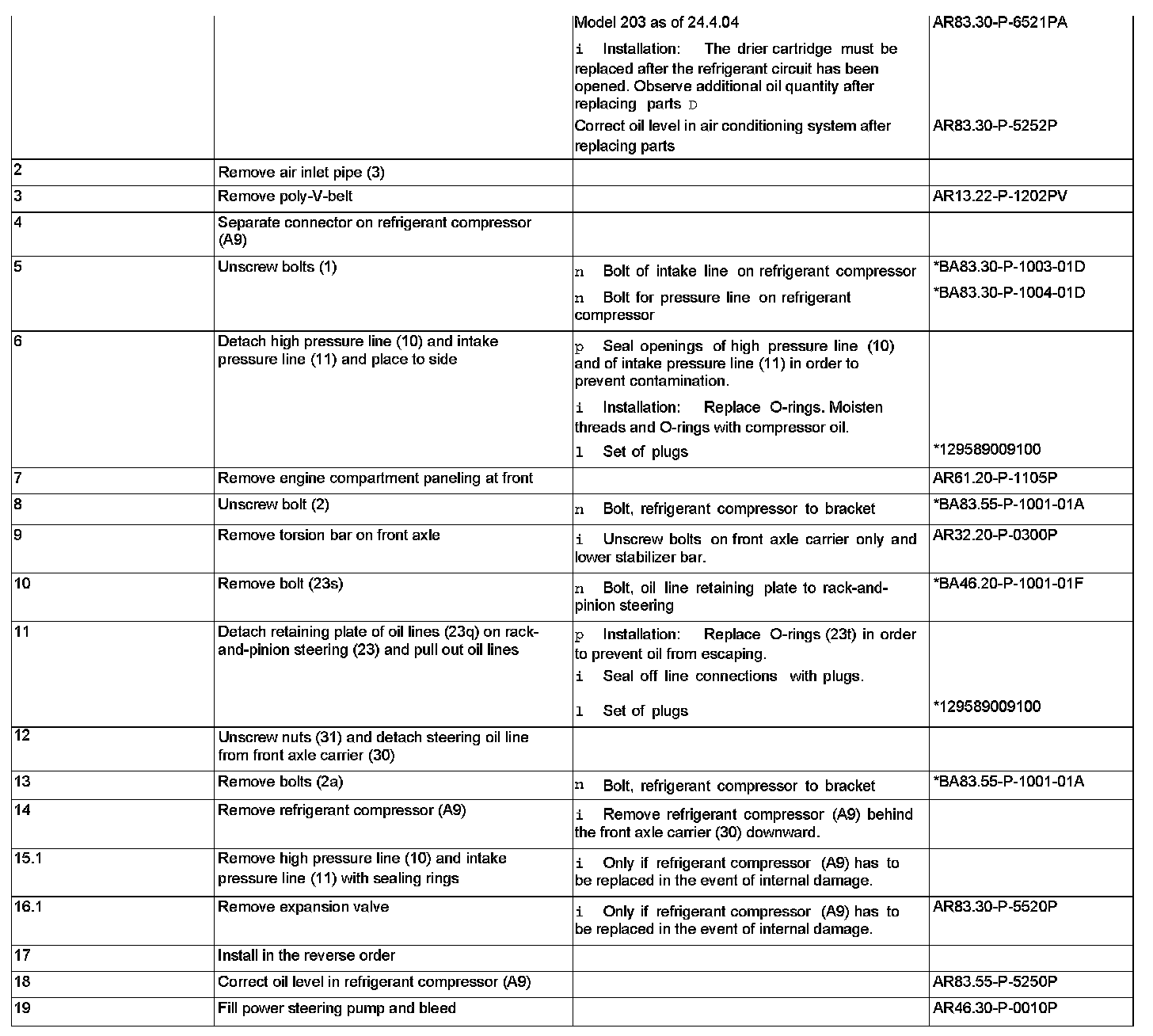

Step 2 - 19:

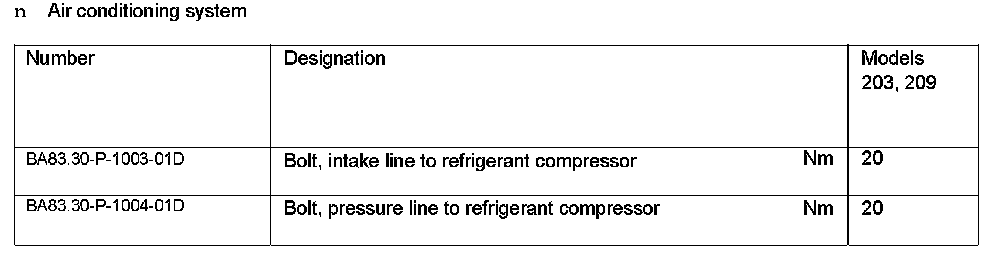

Air Conditioning System:

Refrigerant Compressor:

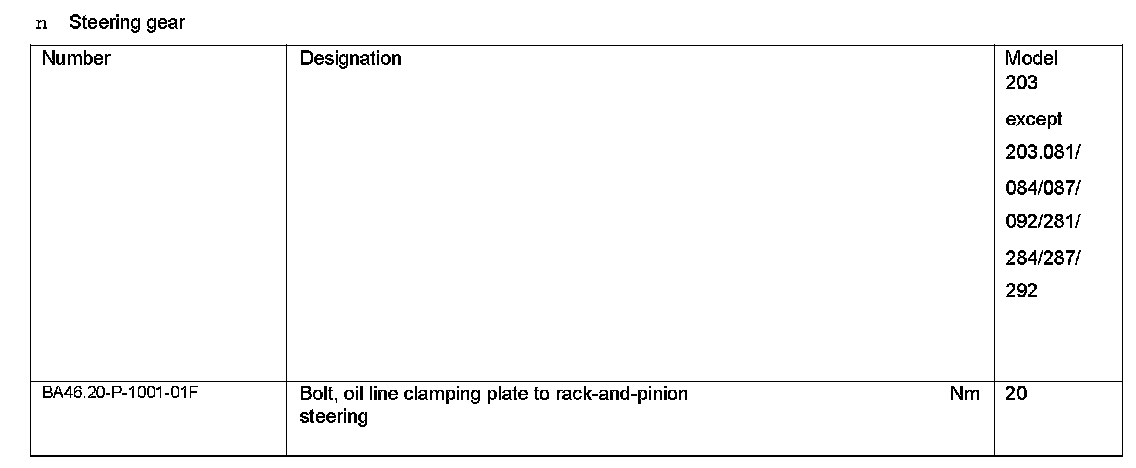

Steering Gear:

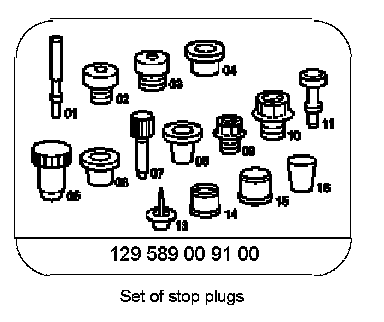

Special Tools:
