AP13.22-P-1352L Check Poly-V-Belt In Visible Area For Wear



AP13.22-P-1352L Check poly-V-belt in visible area for wear

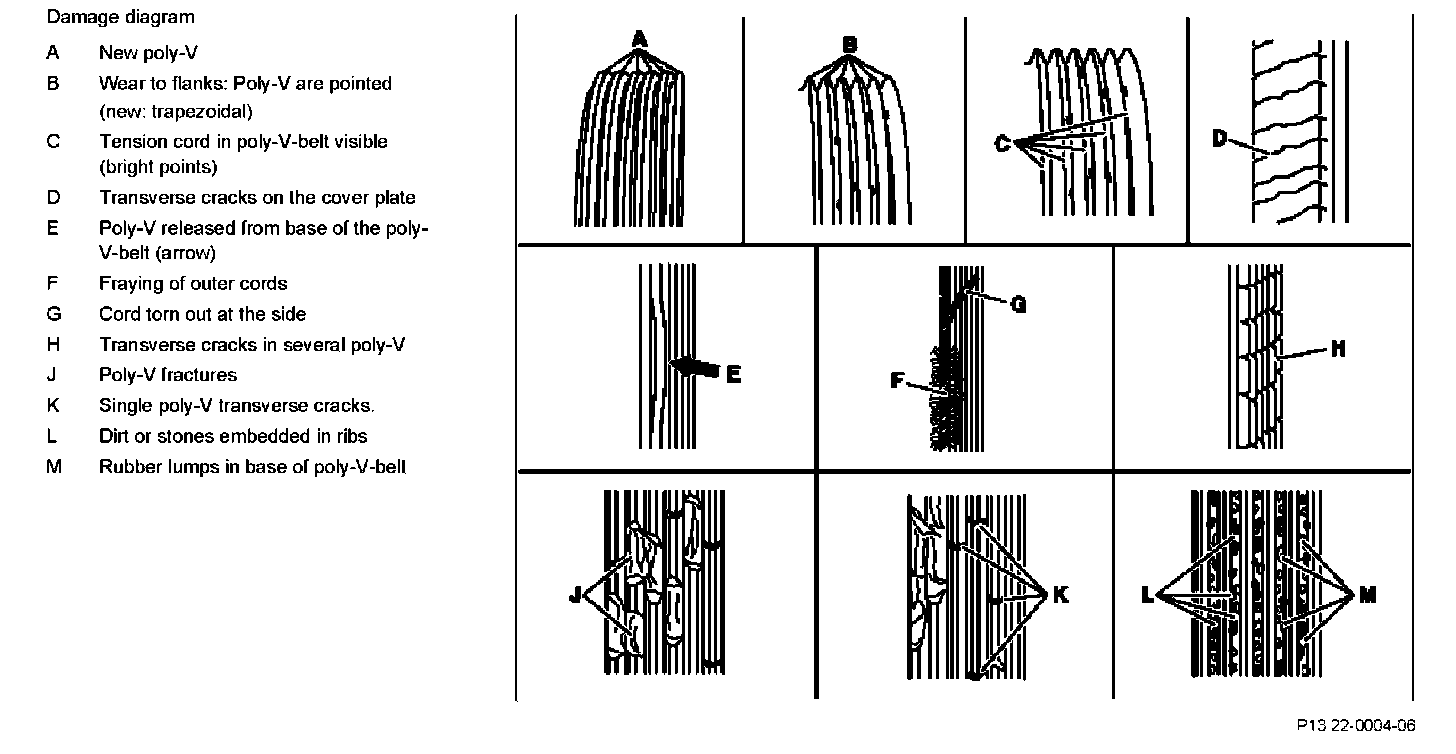

Component Identification:




Component Identification:

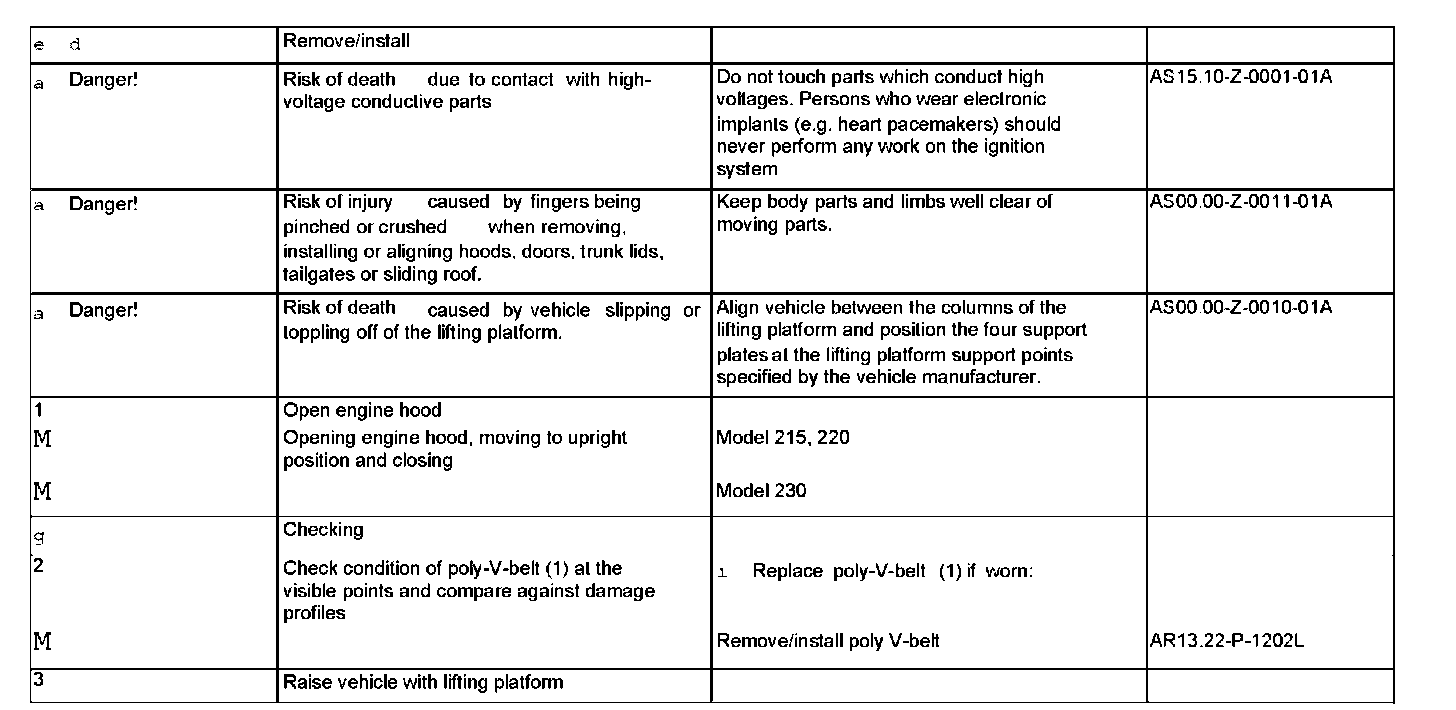

Steps 1 - 3:

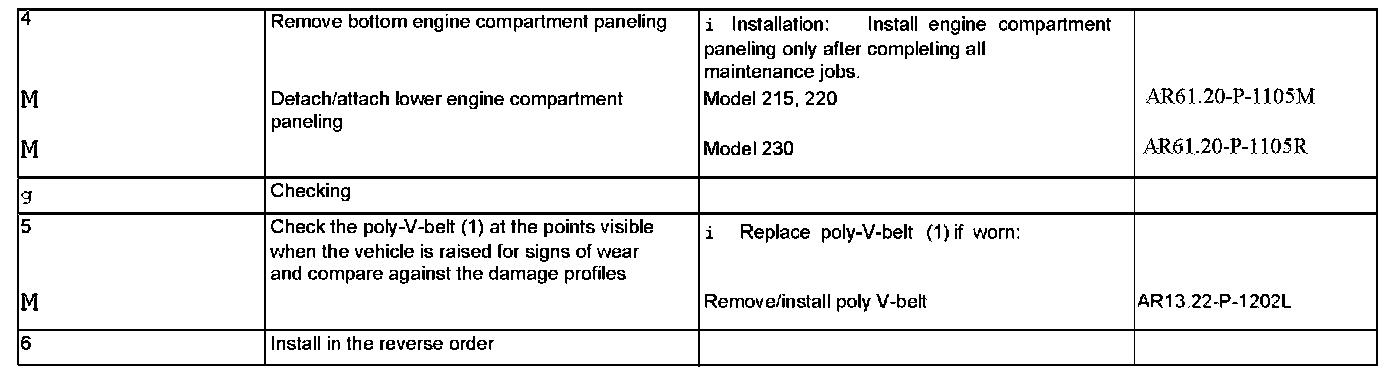

Steps 4 - 6:
