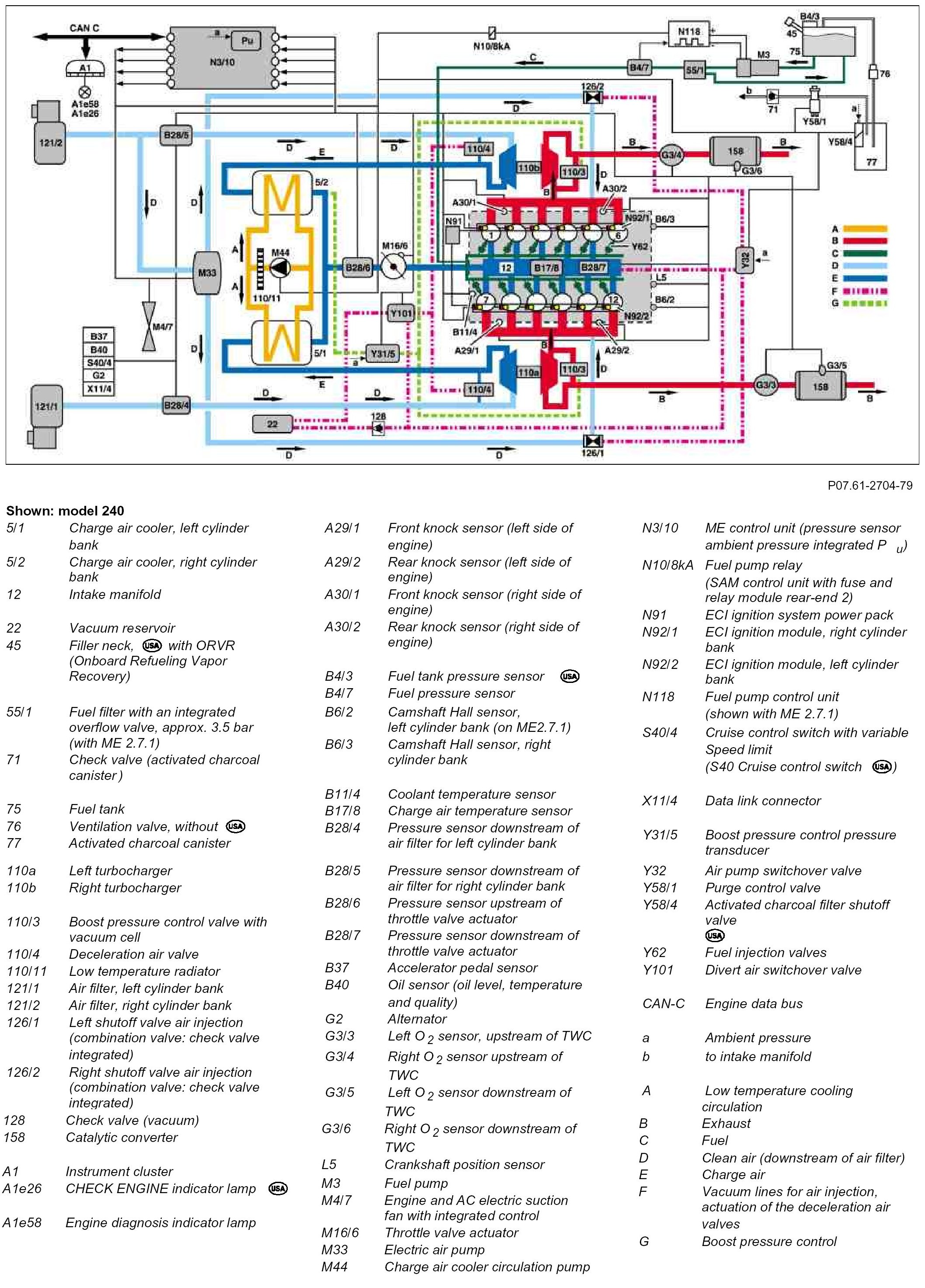

GF07.61-P-0001-02M Motor Electronics (ME-SFI) Fuel Injection and Ignition System Function Diagram



GF07.61-P-0001-02M Motor Electronics (ME-SFI) Fuel Injection And Ignition System Function Diagram


Component Identification:
