Body - Trunk Partition Panel Hinge Pin Broken

Date: November 1, 2007

Order No.: P-B-68.30/44a

Supersedes: P-B-68.30/44 dated November 2, 2005

Revision History

Revision Date Purpose

a 11/1/07 Warranty Information Updated

- 11/2/05 Initial issue

SUBJECT:
Model 209.465/475/476

Hinge for Trunk Partition Panel Broken

If you receive customer reports in the above model vehicles that the hinge for the trunk partition panel is broken and the panel is out of its normal position, follow the below steps to replace the hinge pin which will resolve this condition.

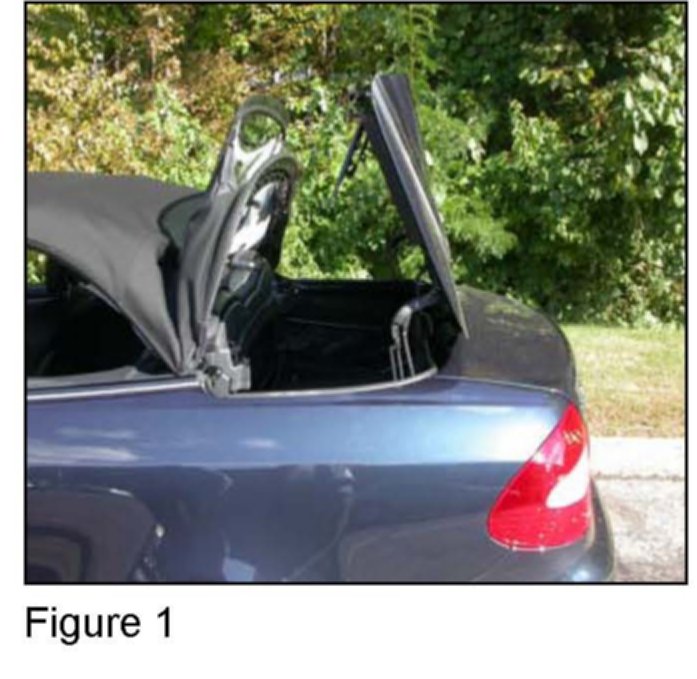

1. Open roof to the position shown (Figure 1).





2. Remove broken hinge pin(s) (Figure 2, arrow).





Note:
Hinge pin has a predetermined break point (Figure 3, circle).

3. Insert new hinge pin towards the center of the car.





Parts Information

Note:
The following allowable labor operations should be used when submitting a warranty claim for this repair. This information has been generated on November 1, 2007. Please refer to Netstar --> Star TekInfo --> Star Time for the most current labor time allowance.





In Case of Warranty, use the table.
