F. Configuring the MOST Optical Fiber Ring

NOTICE!
Improper handing of optical fibers can damage the fibers.

Damaged optical fibers can cause component malfunction.

Handle optical fibers with care to prevent cuts, nicks, abrasions, and crushing.

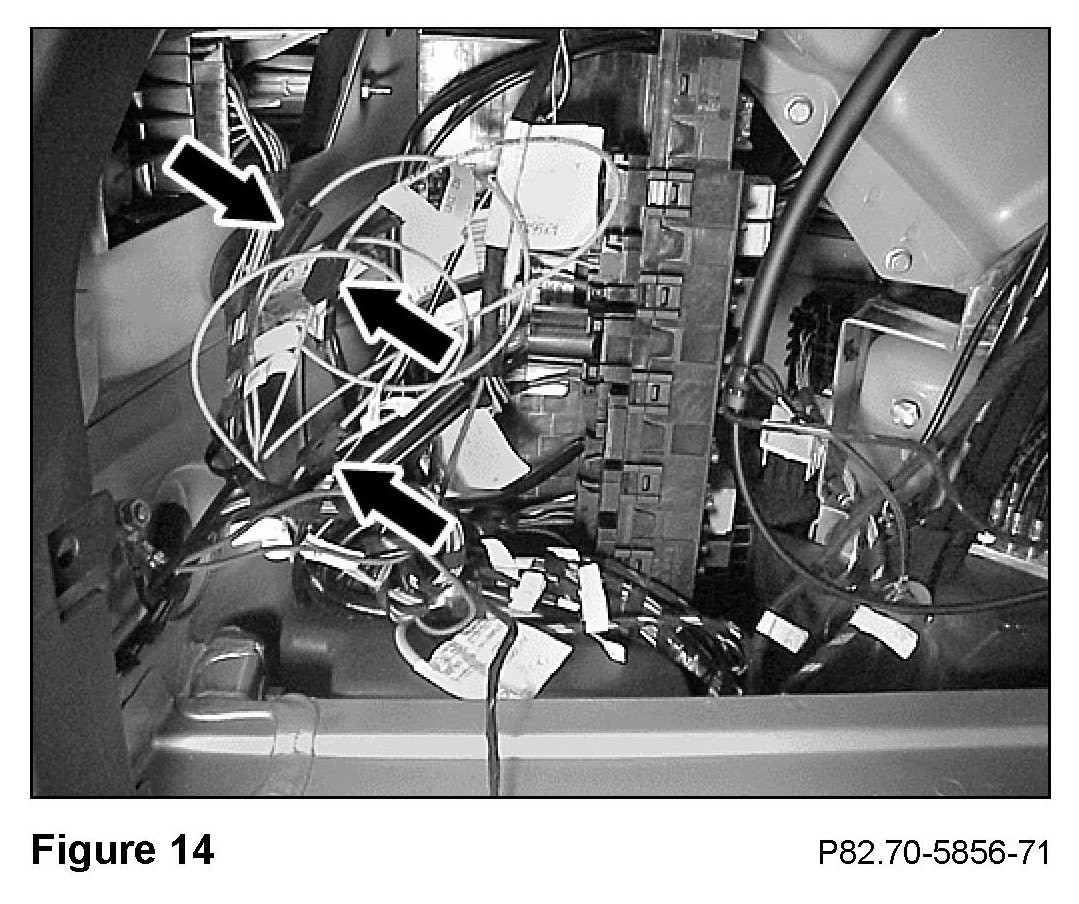

1. In the exposed left side well of the trunk, configure the MOST optical fiber ring (Figure 14) according to Figure 32.
