Home >> Mercedes Benz >> 2005 >> CLK 55 AMG Cabriolet (209.476) V8-5.5L (113.987) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Gear >> Service and Repair >> Procedures >> Replace Bottom Radial Shaft Sealing Ring on Control Head [AR46.20-P-0003Q]

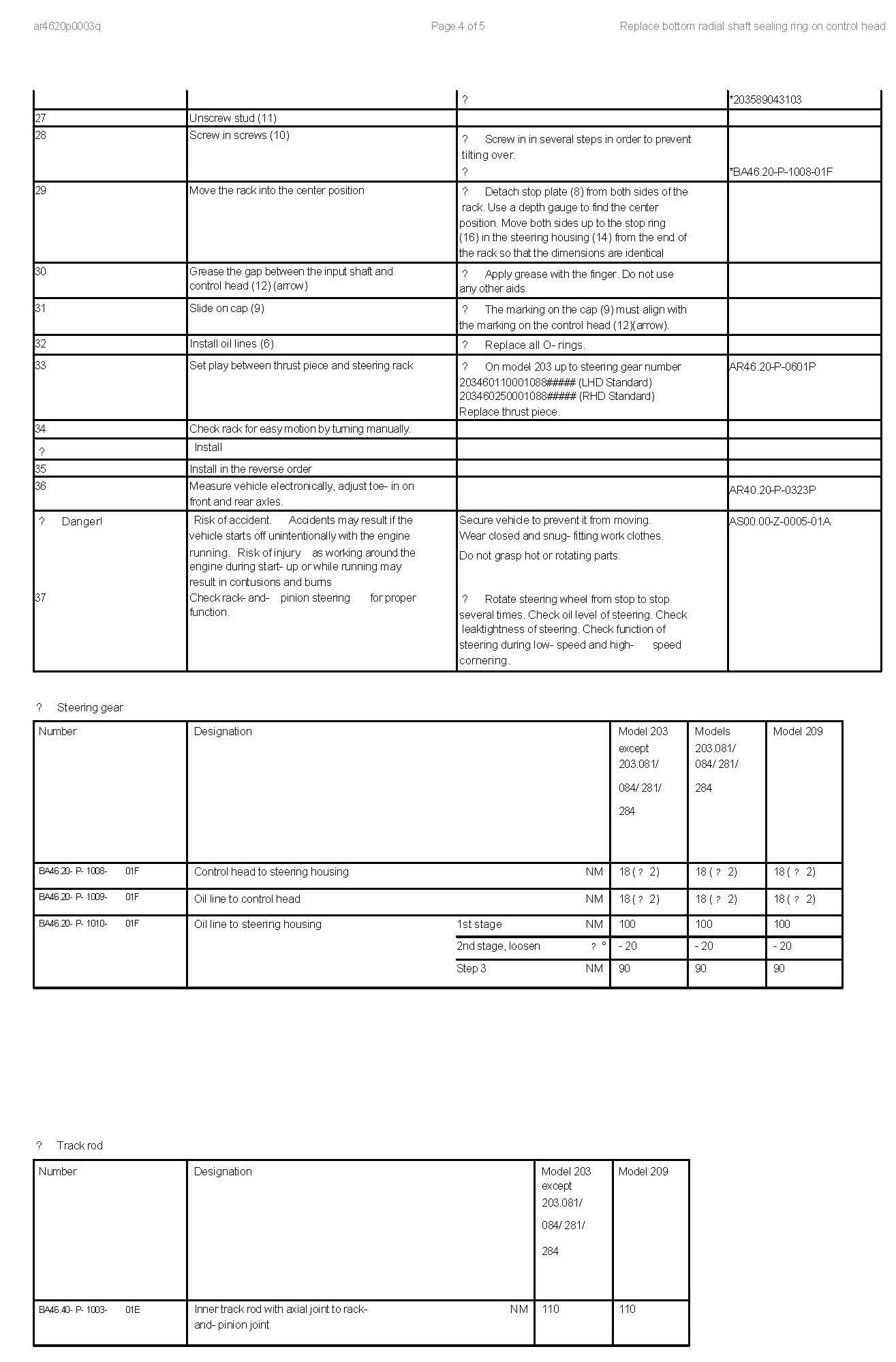

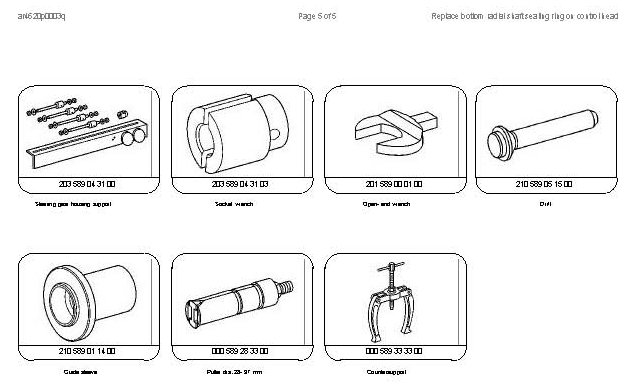

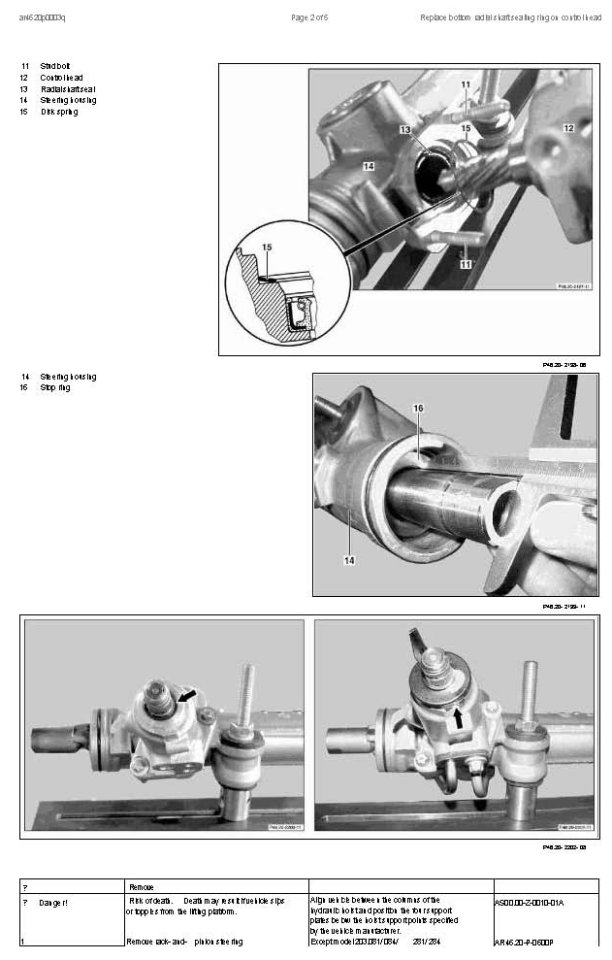

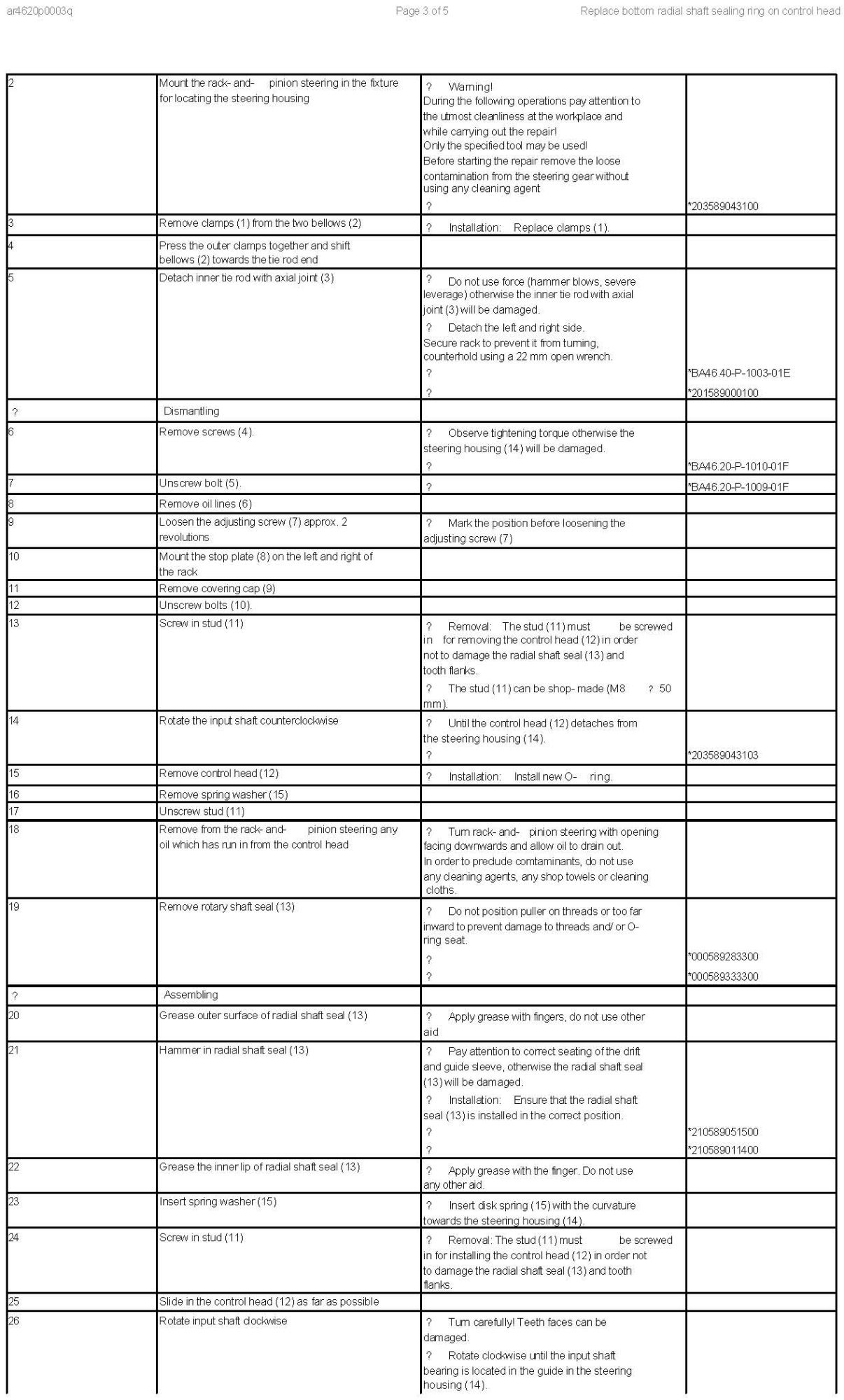

Replace Bottom Radial Shaft Sealing Ring on Control Head [AR46.20-P-0003Q]


Replace bottom radial shaft sealing ring on control head
