AR40.20-P-0263PW Adjust Camber and Caster At The Front Axle

Component Identification:

Component Identification:

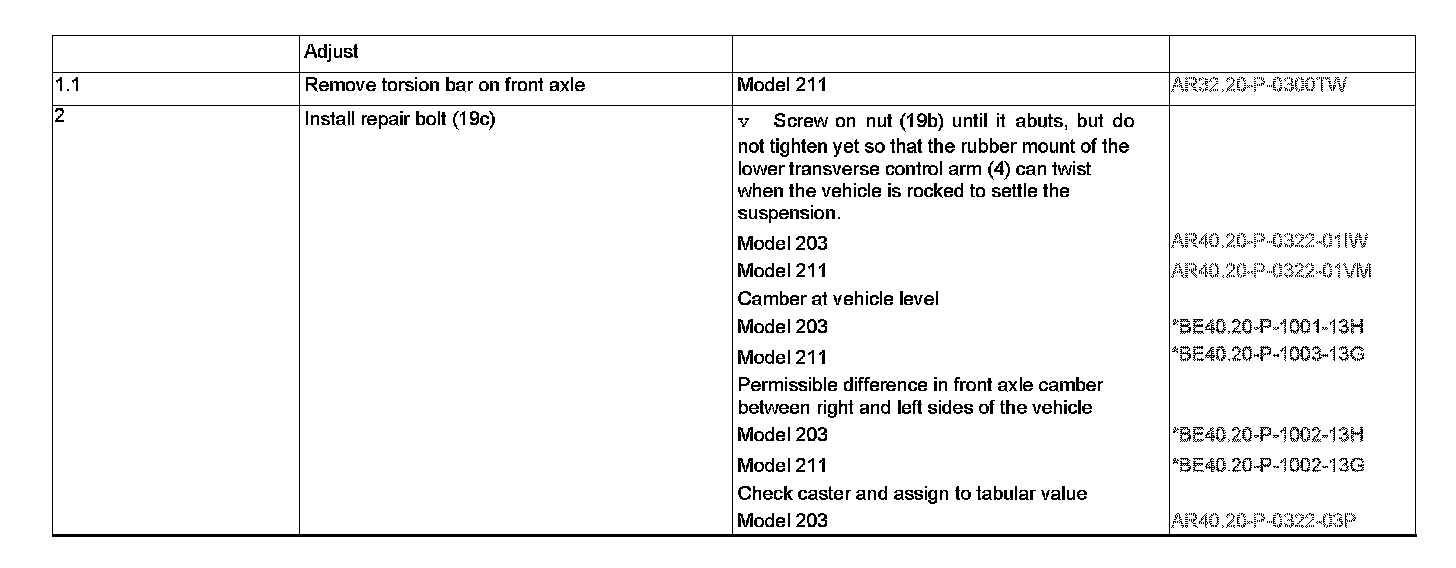

Steps 1-2:

Remove/install Steps 3-5:

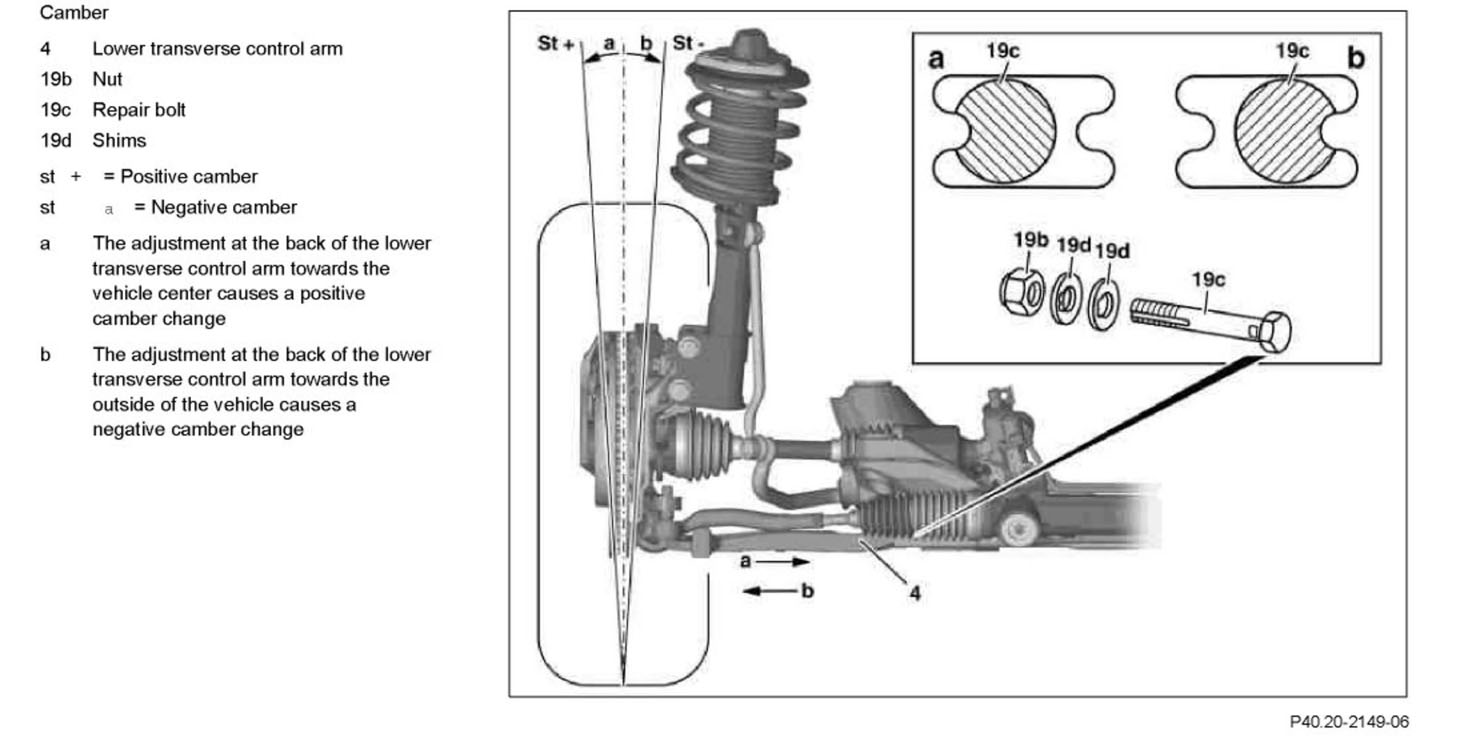

Inspection and adjusting values for front-axle camber:

Check values for front-axle camber:

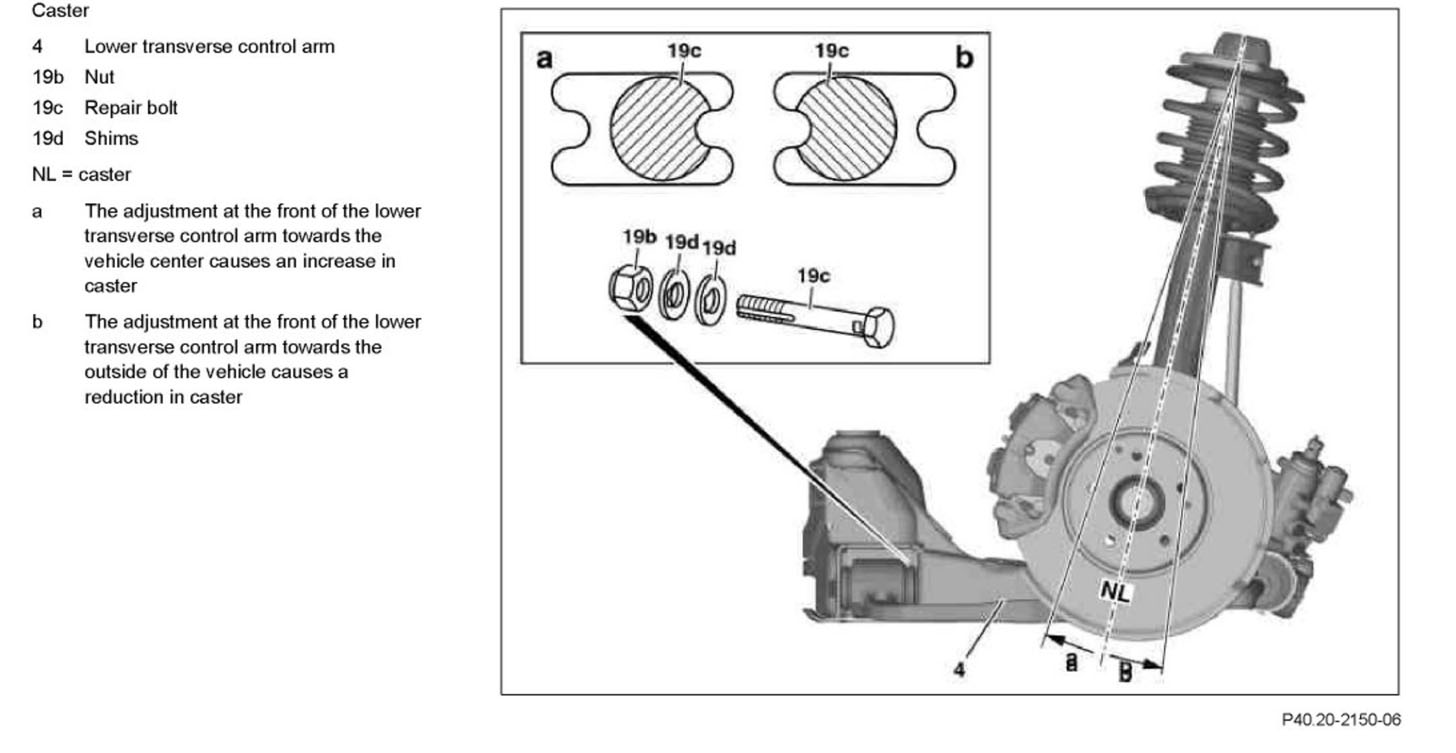

Check and adjustment values for caster:

Wheel Location, Hub:

Wheel Location, Hub:
