AR40.20-P-0322VM Check and Adjust Camber and Caster at Front Axle
AR40.20-P-0322VM Check and Adjust Camber and Caster at Front Axle

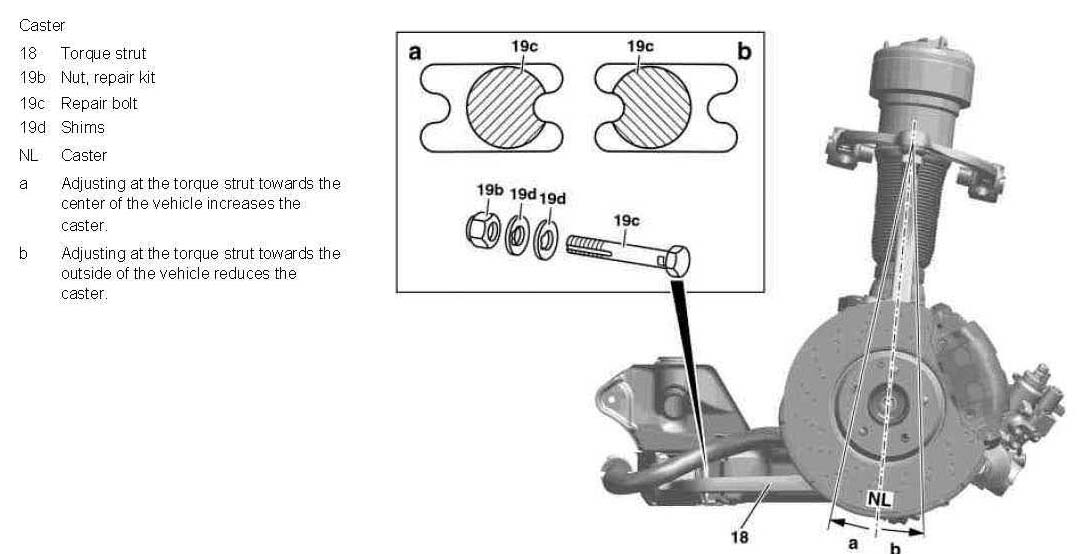

AR40.20-P-0322VM Checking and adjusting camber and caster at front axle

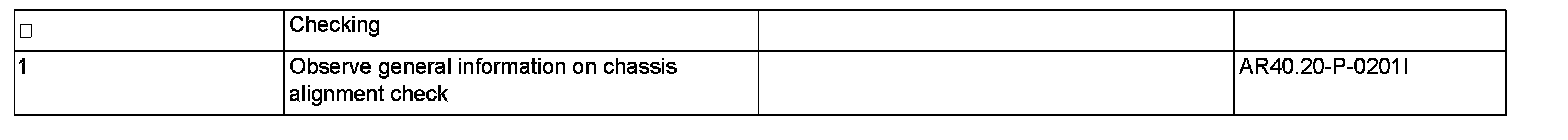

Step 1:

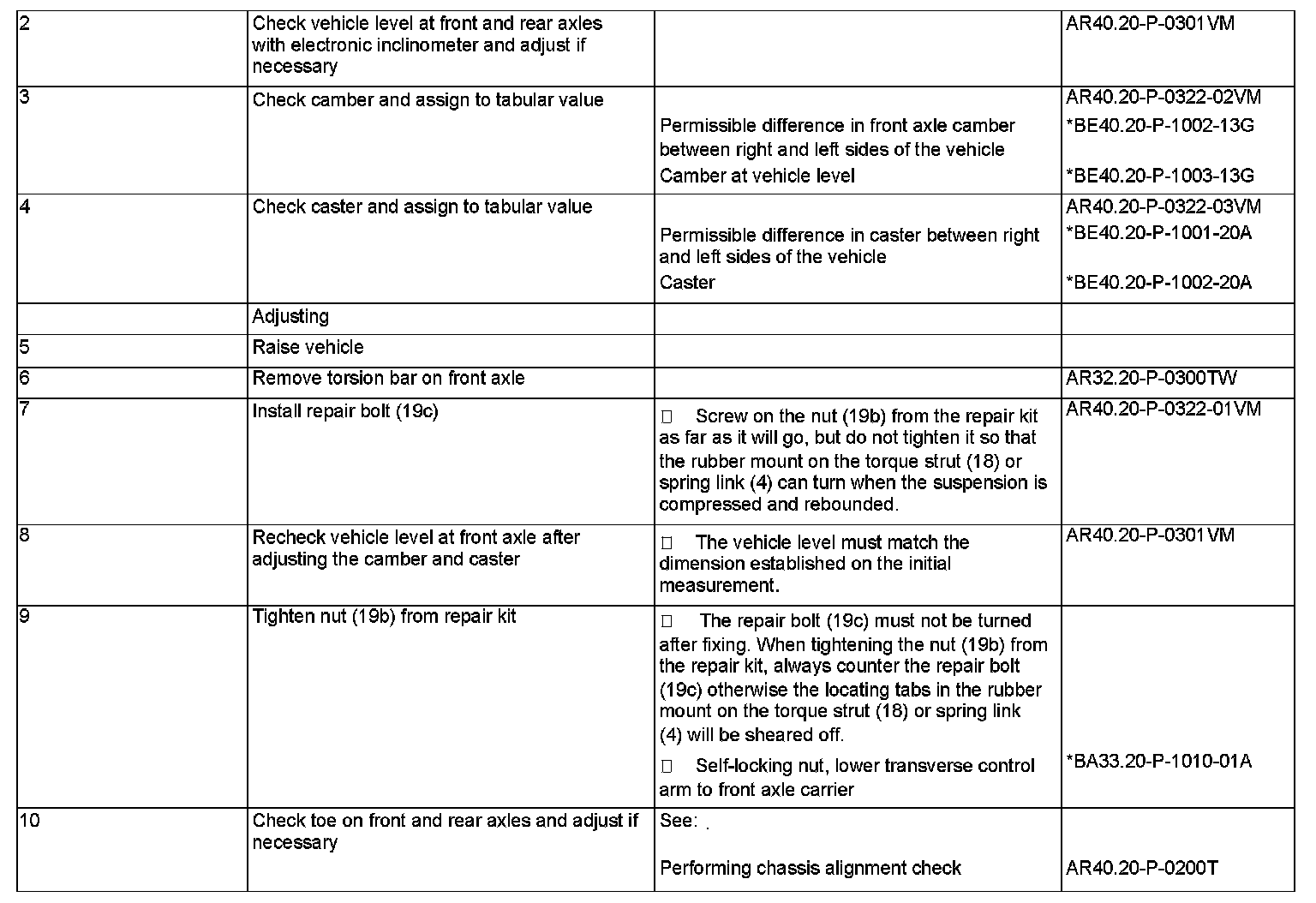

Steps 2-10:
