Overhaul

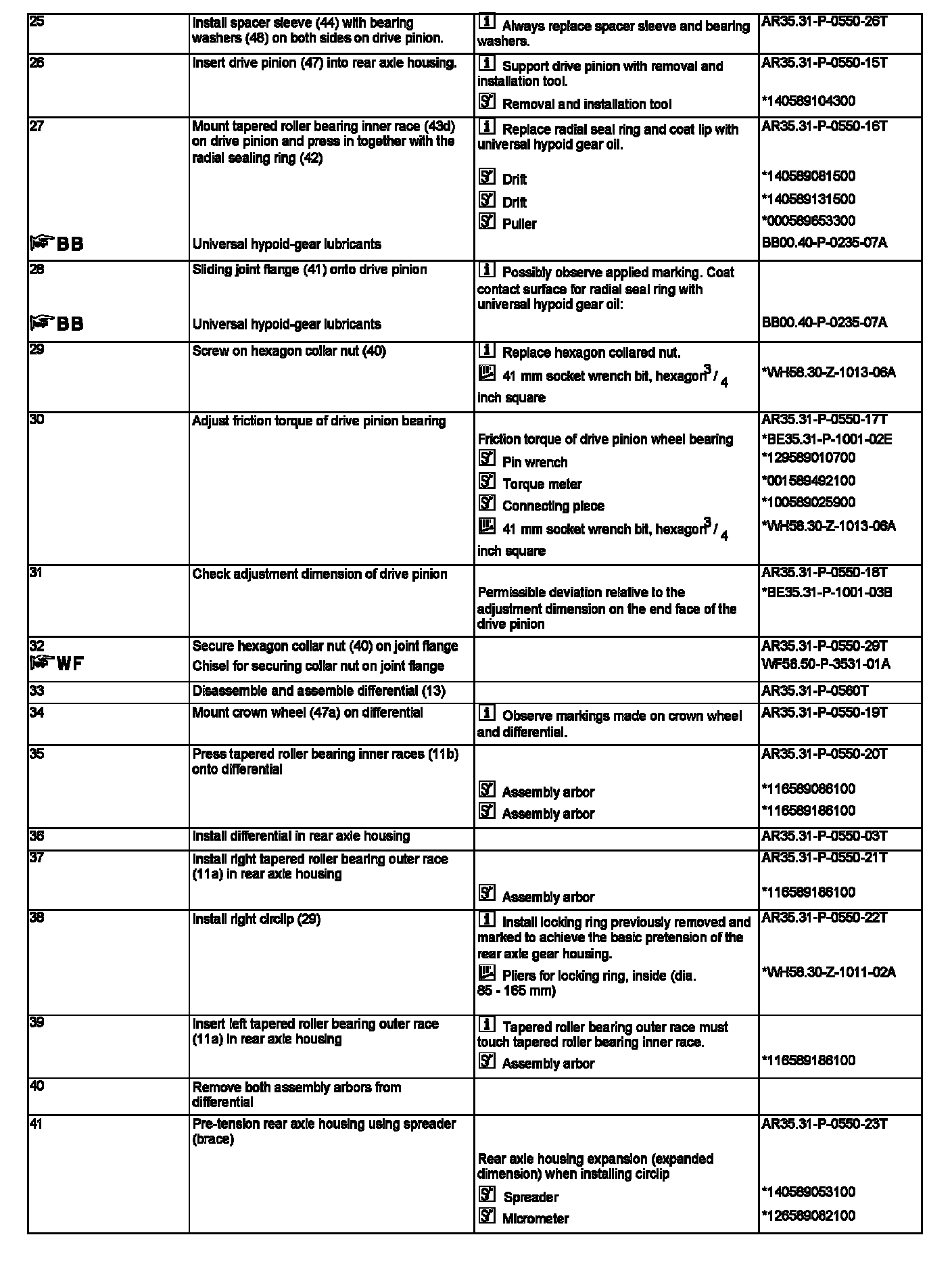

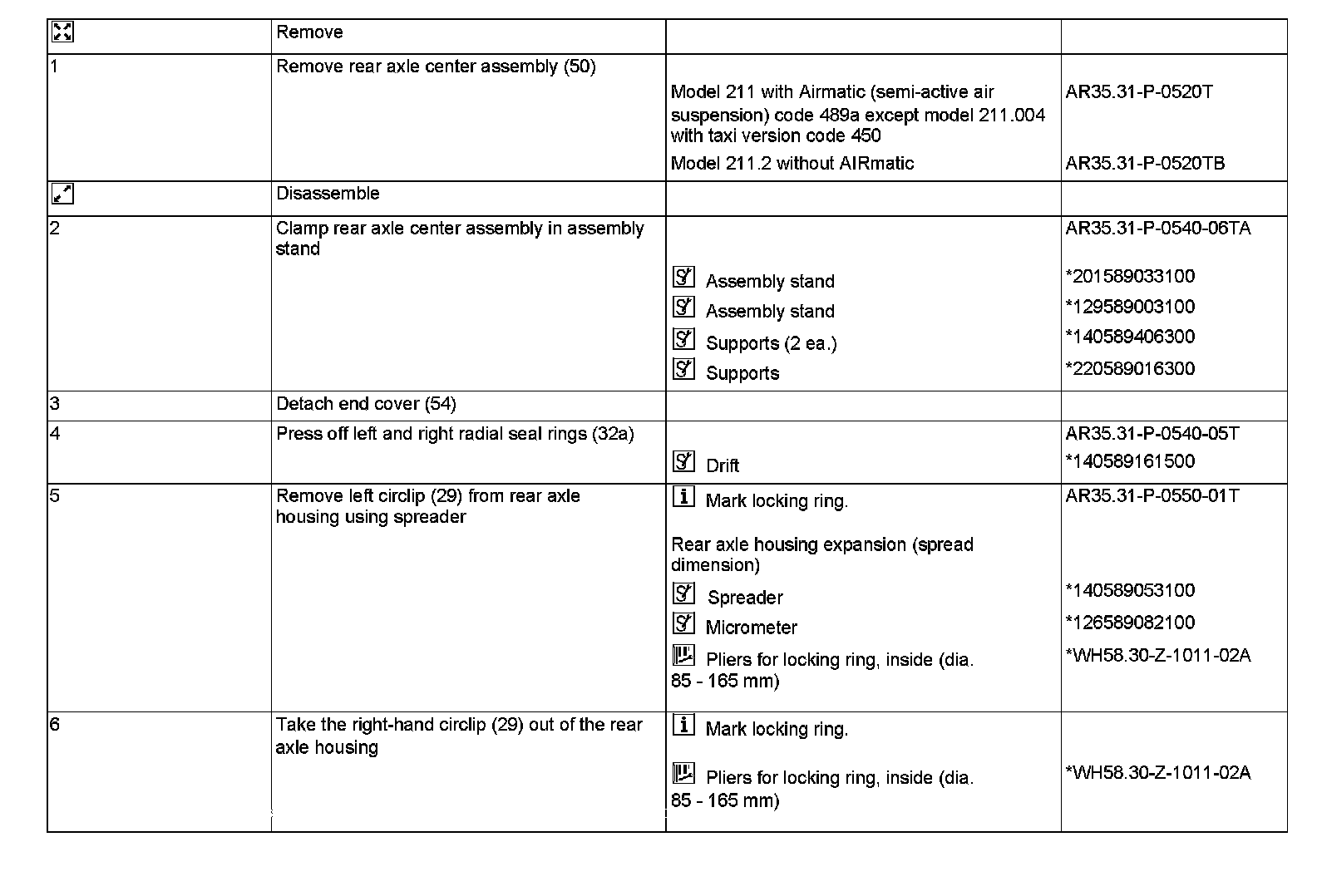

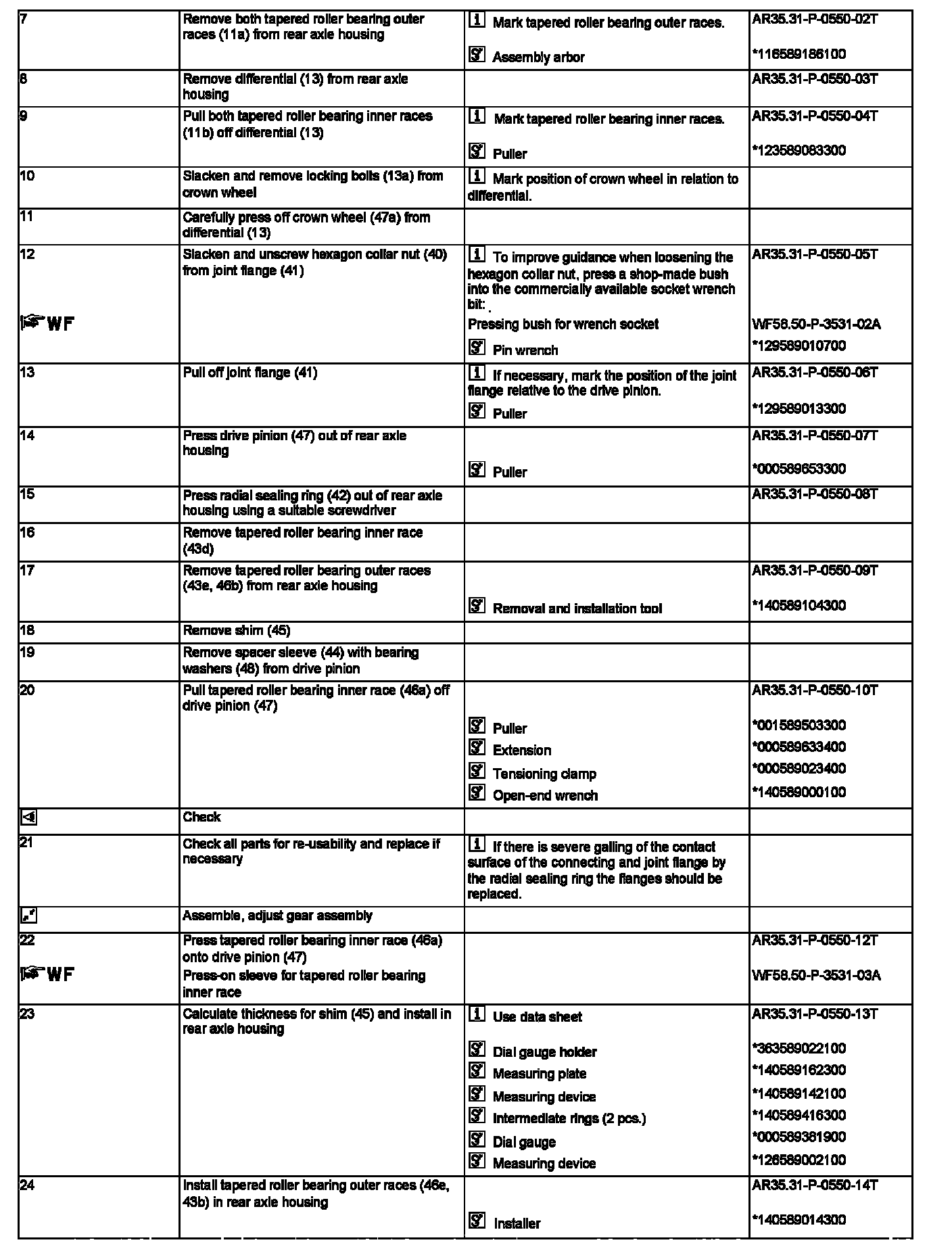

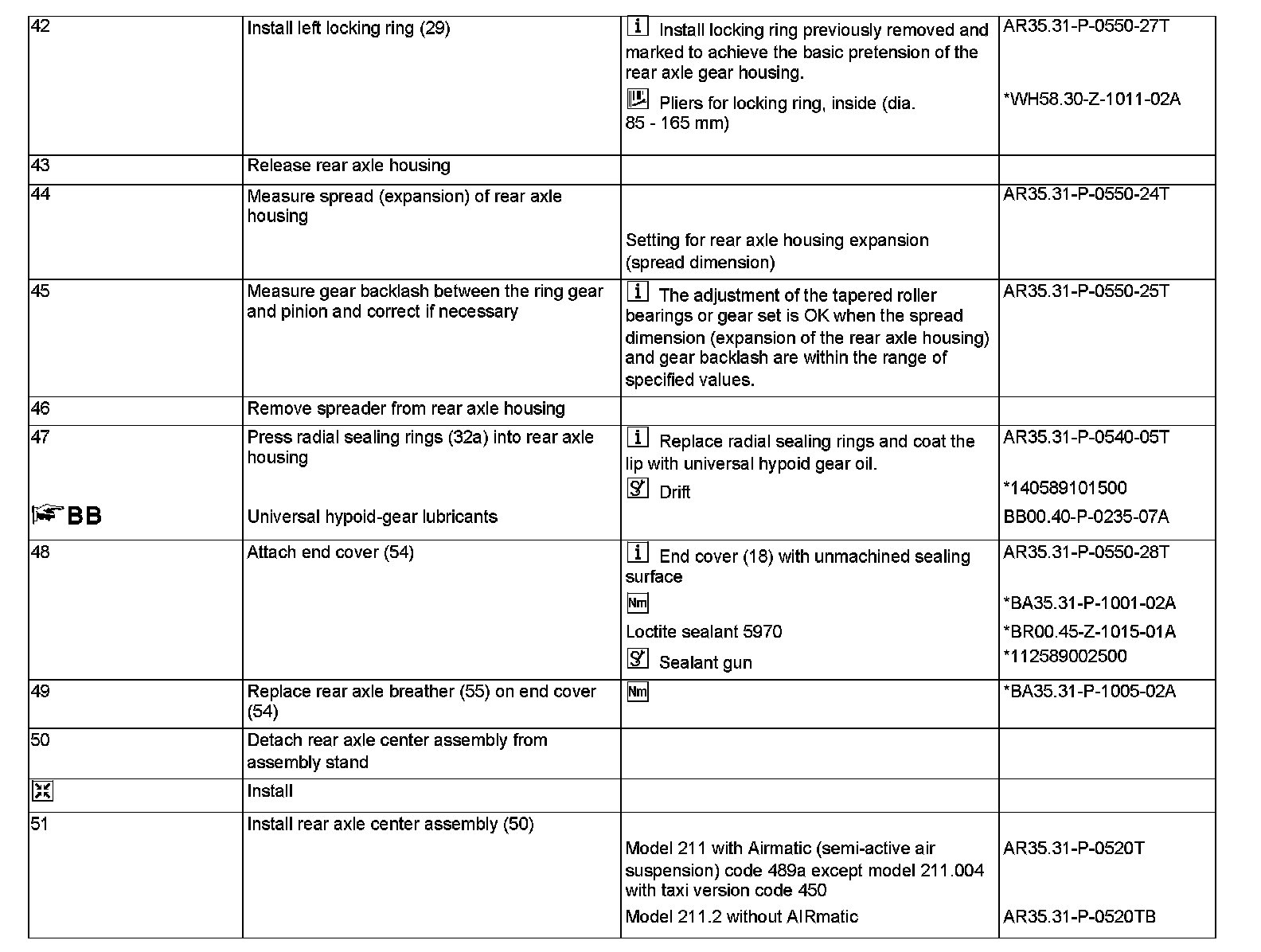

Disassemble/assemble rear axle center assembly, adjusting gear set

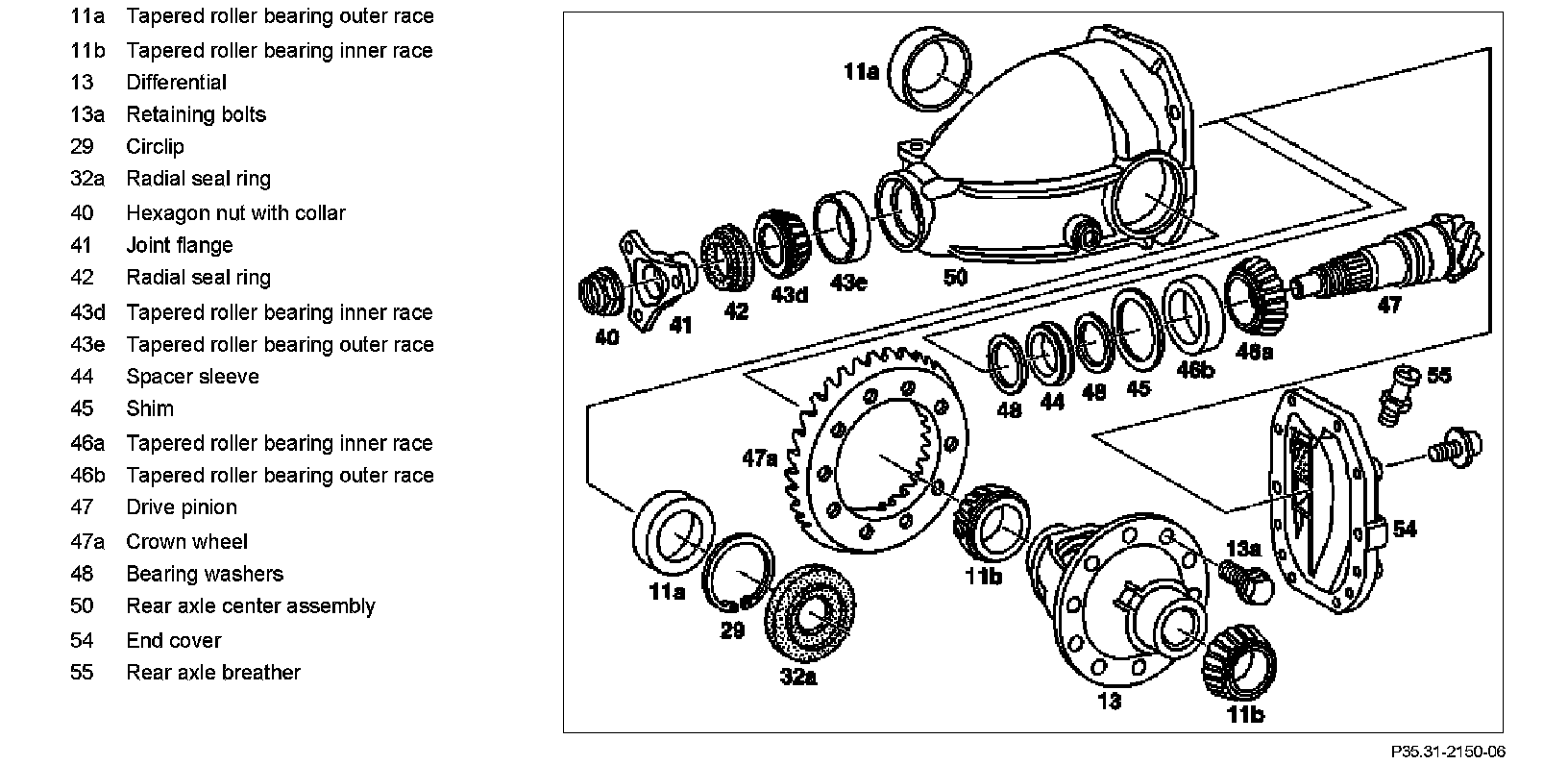

- Rear axle center assembly dia. 198
