AZ54.65-P-0001T Retrofit Ultrasonic Back-Up Assist
AZ54.65-P-0001T Retrofit Ultrasonic Back-Up Assist
AZ54.65-P-0001T Retrofit Ultrasonic Back-up Assist
Component Identification:

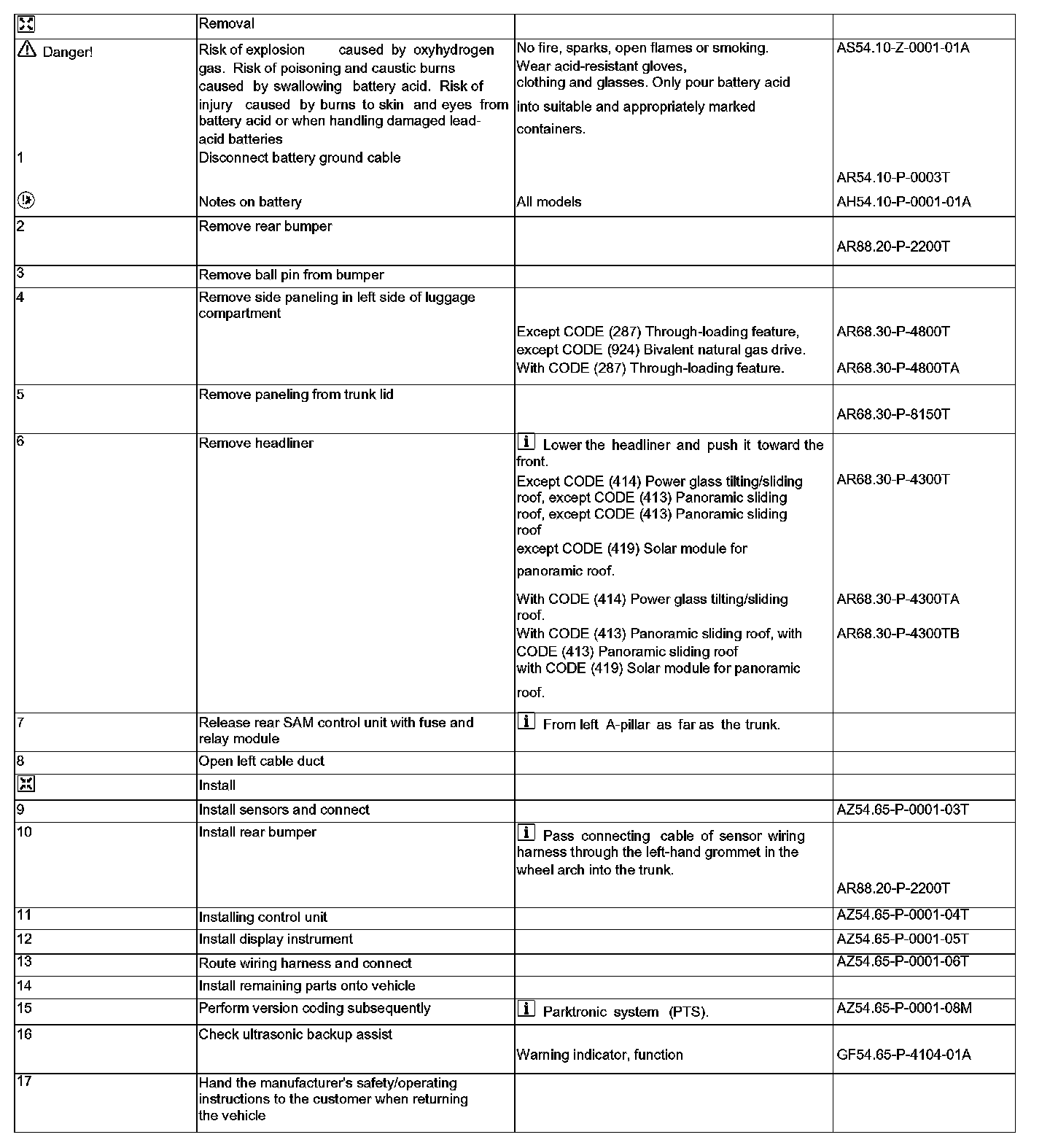

Steps 1 - 17:

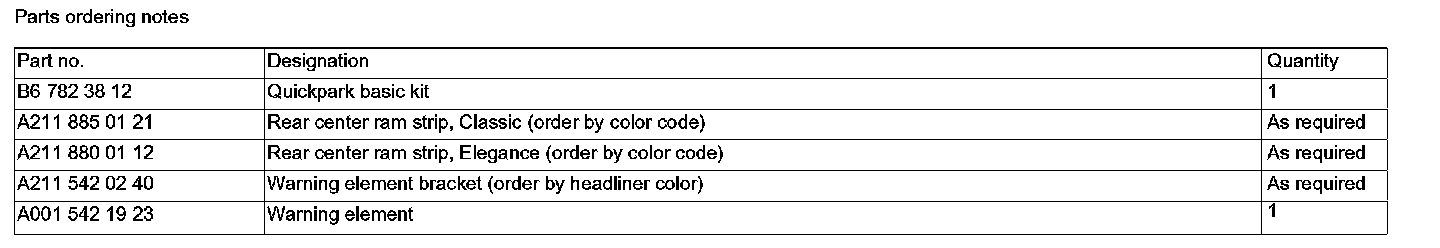

Parts Ordering Notes:
