Electrical Diagrams

TELE AID System PE82.95-U-2050SL
- with CODE (359) TELE AID emergency call system
- control module N123/4

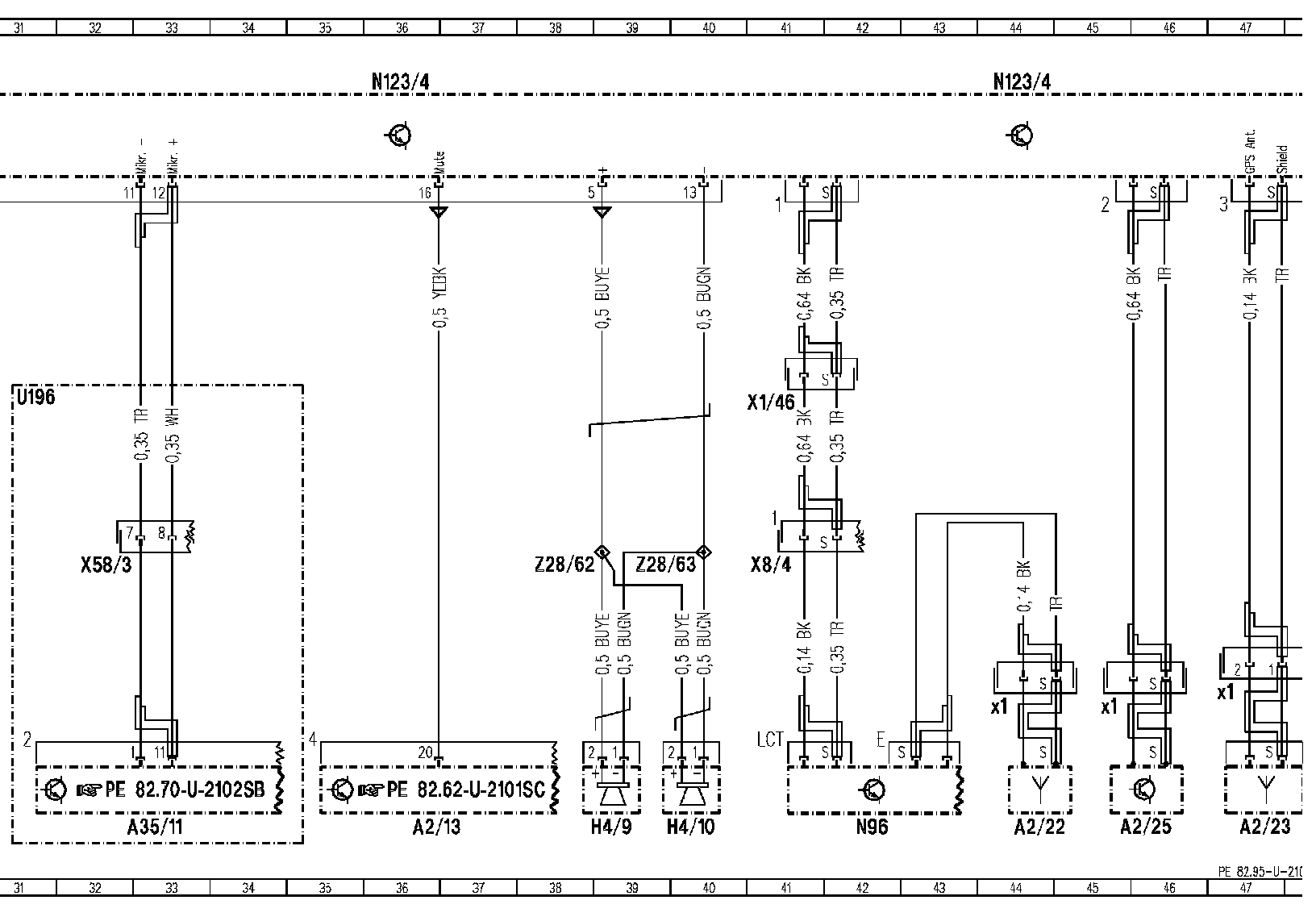

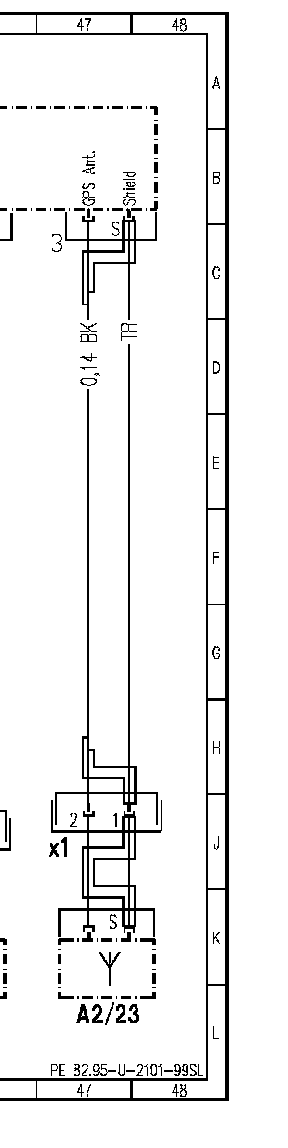

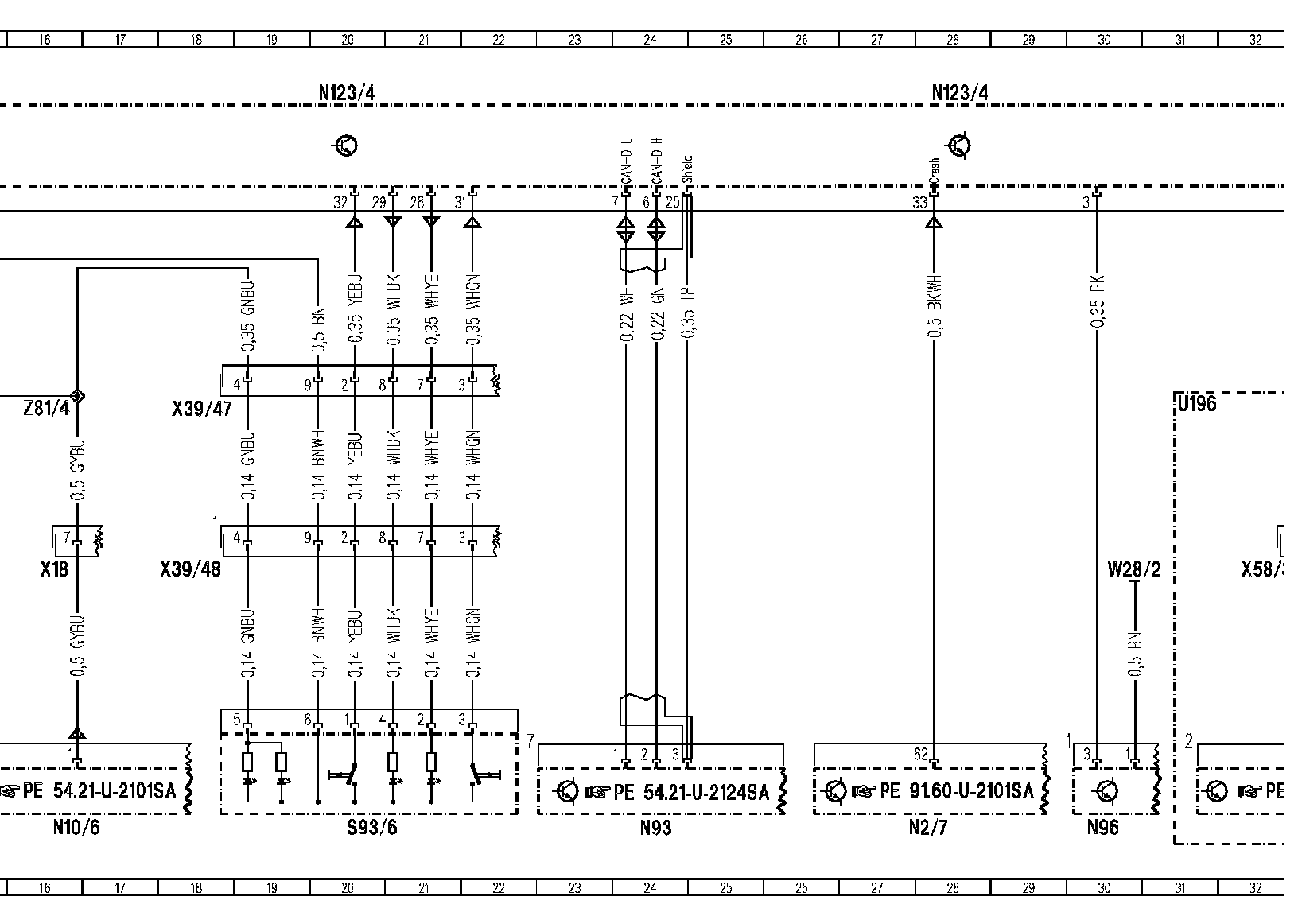

Wiring Diagram, Part 1:

Wiring Diagram, Part 2:

Wiring Diagram, Part 3:

Wiring Diagram, Part 4:

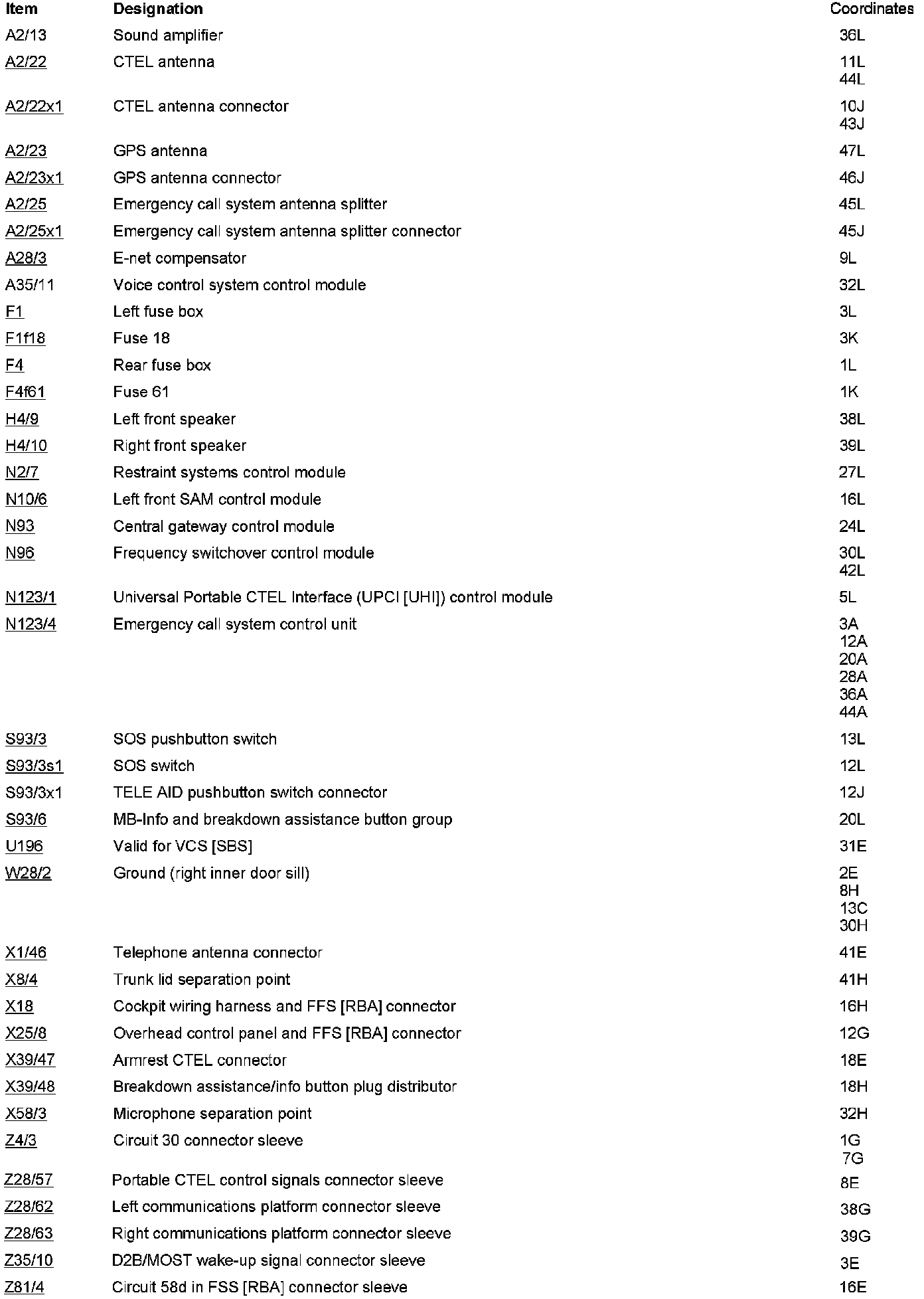

Component Description/Coordinates, A2/13 To Z81/4:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
