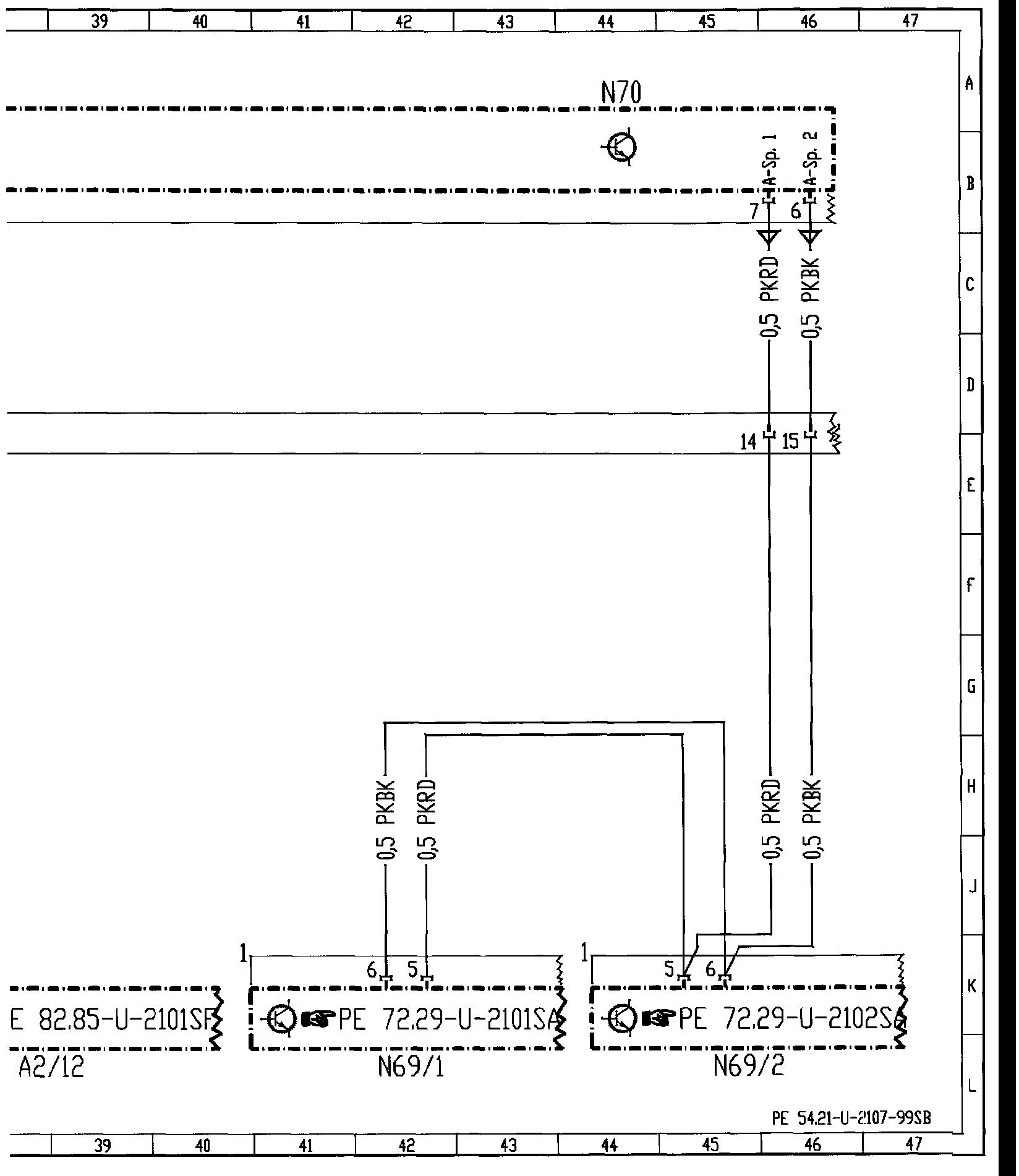

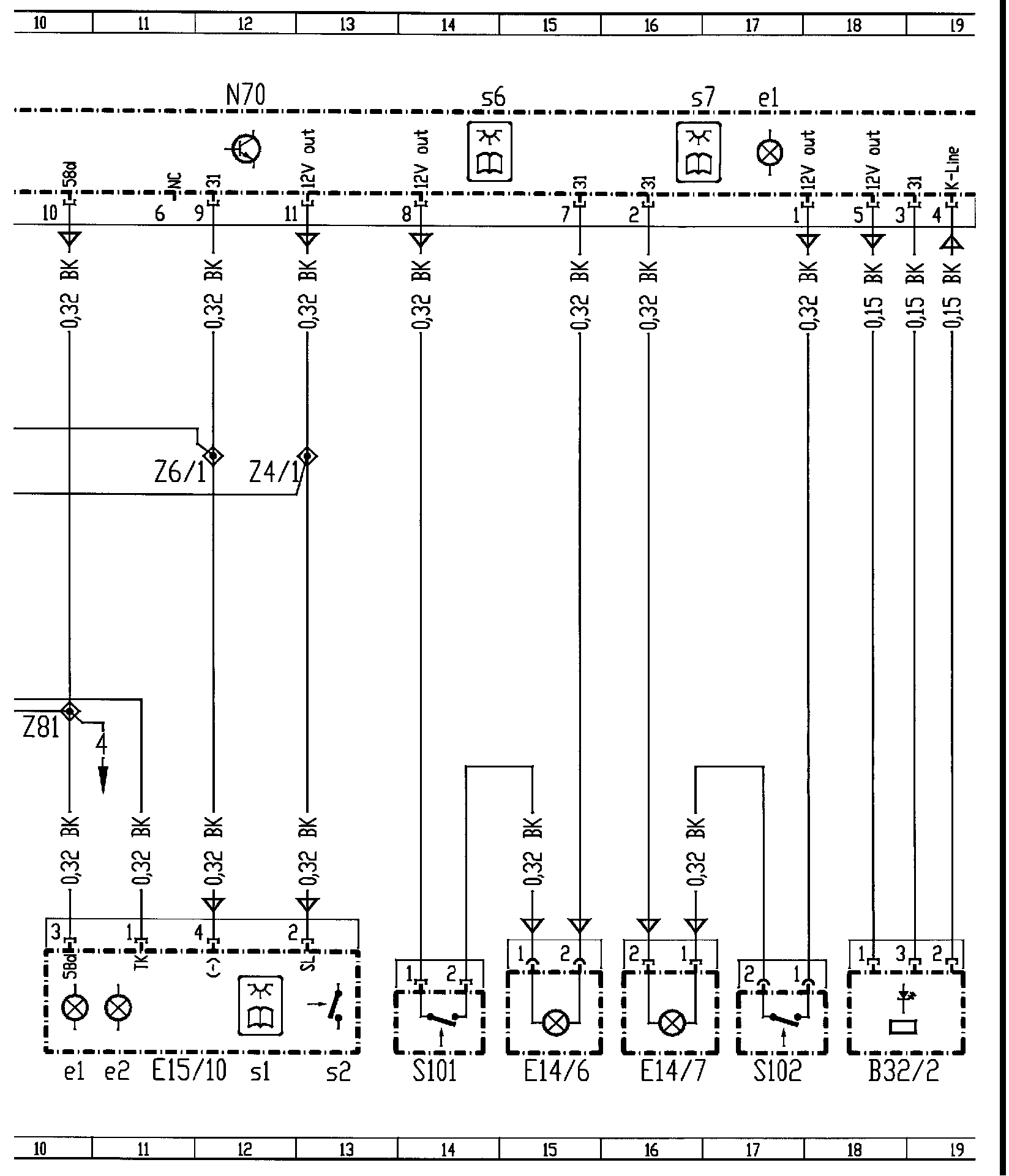

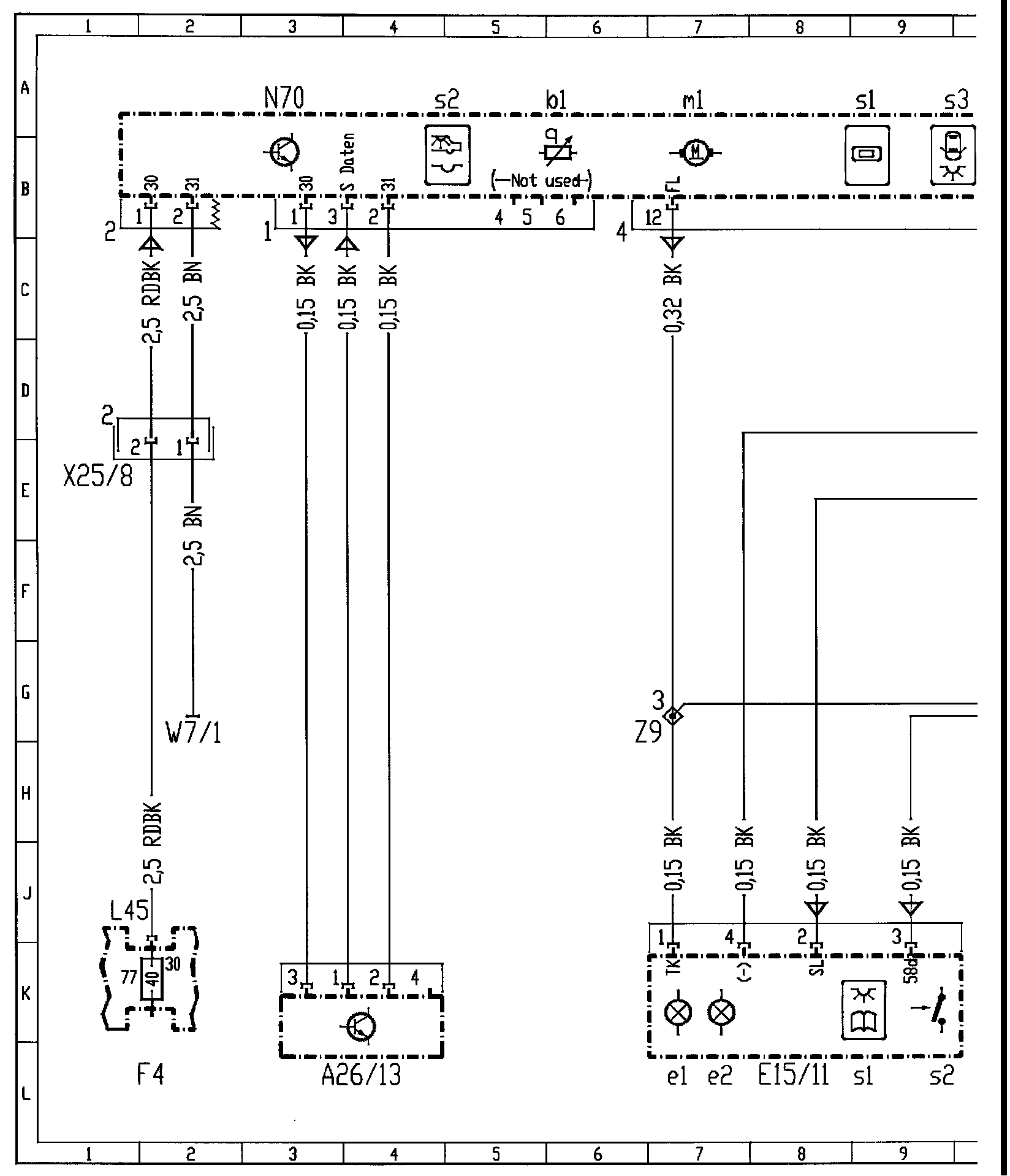

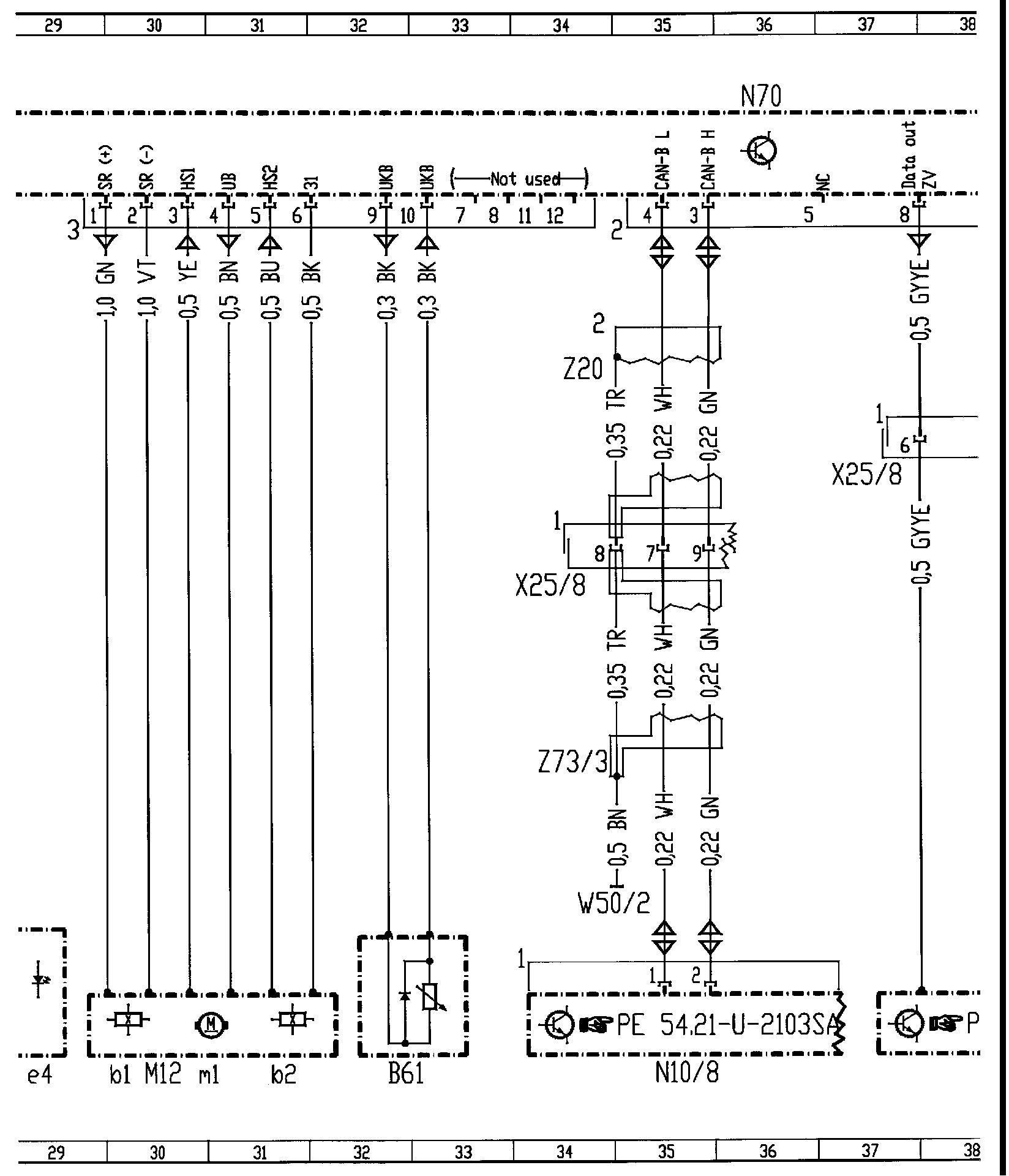

Overhead Control Panel (OCP) PE54.21-U-2107SB

Overhead Control Panel (OCP) PE54.21-U-2107SB
- control module N70

Overhead Control Panel (OCP) Control Module:

Overhead Control Panel (OCP) Control Module:

Overhead Control Panel (OCP) Control Module:

Overhead Control Panel (OCP) Control Module:

Overhead Control Panel (OCP) Control Module:

(PART 1) Legend For Overhead Control Panel (OCP) Control Module:

(PART 2) Legend For Overhead Control Panel (OCP) Control Module:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
