Headlamp Range Adjustment (HRC) PE82.10-U-2101SA

Headlamp Range Adjustment (HRC) PE82.10-U-2101SA
- with CODE (612) Xenon headlamp unit
- with CODE (614) Bi-xenon headlamp unit
- control module N71

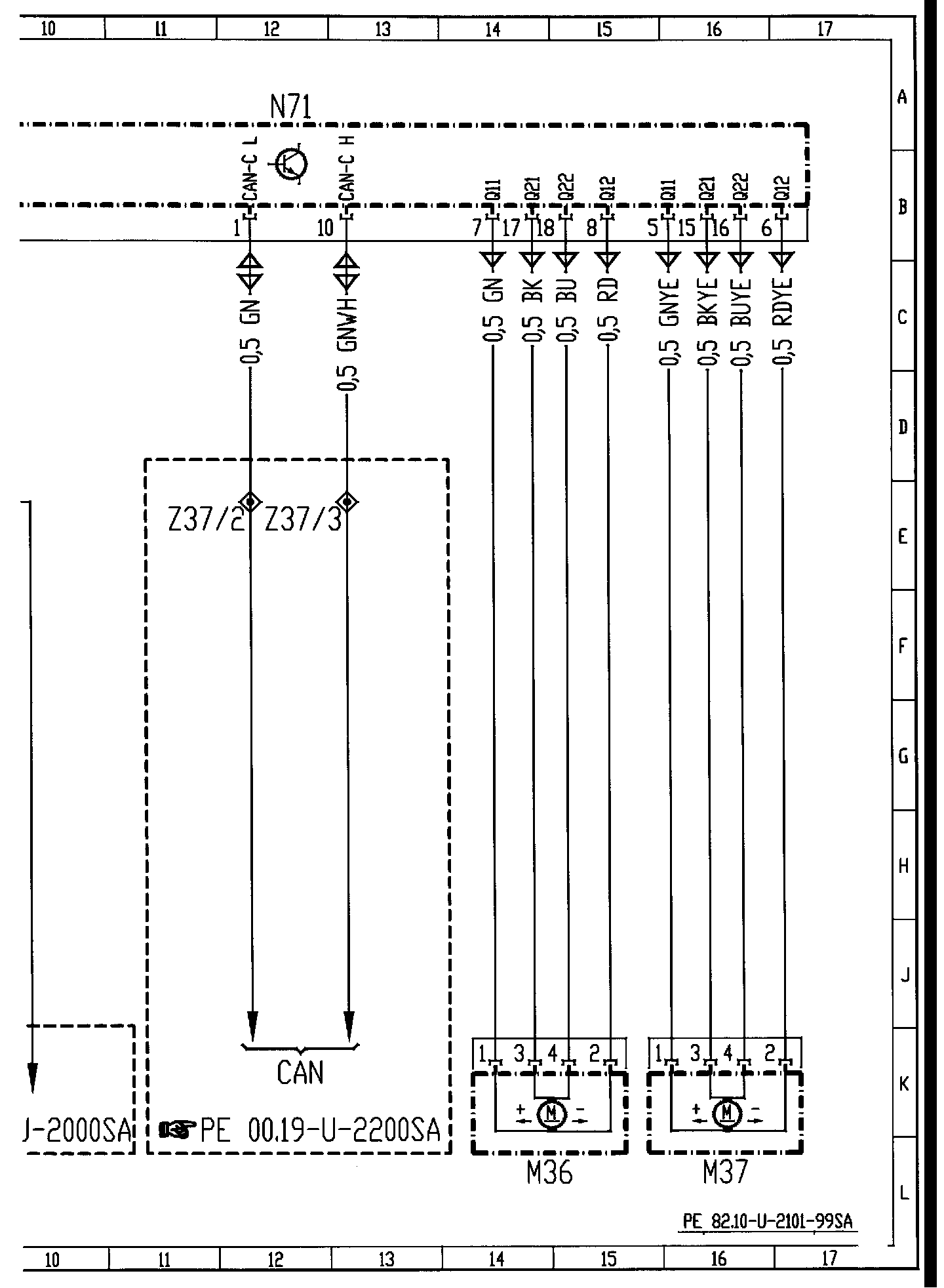

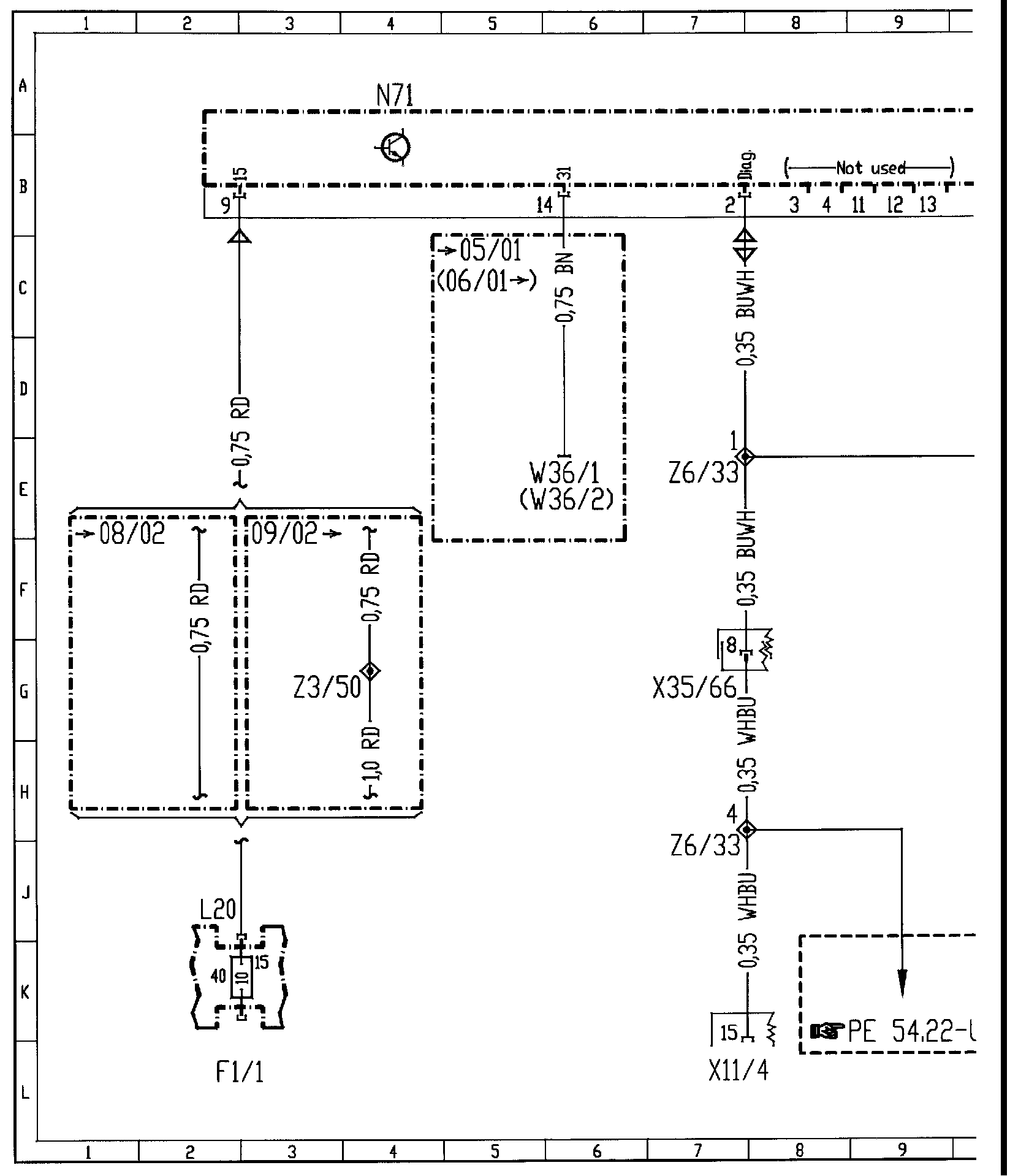

Headlamp Range Adjustment (HRC) Control Module:

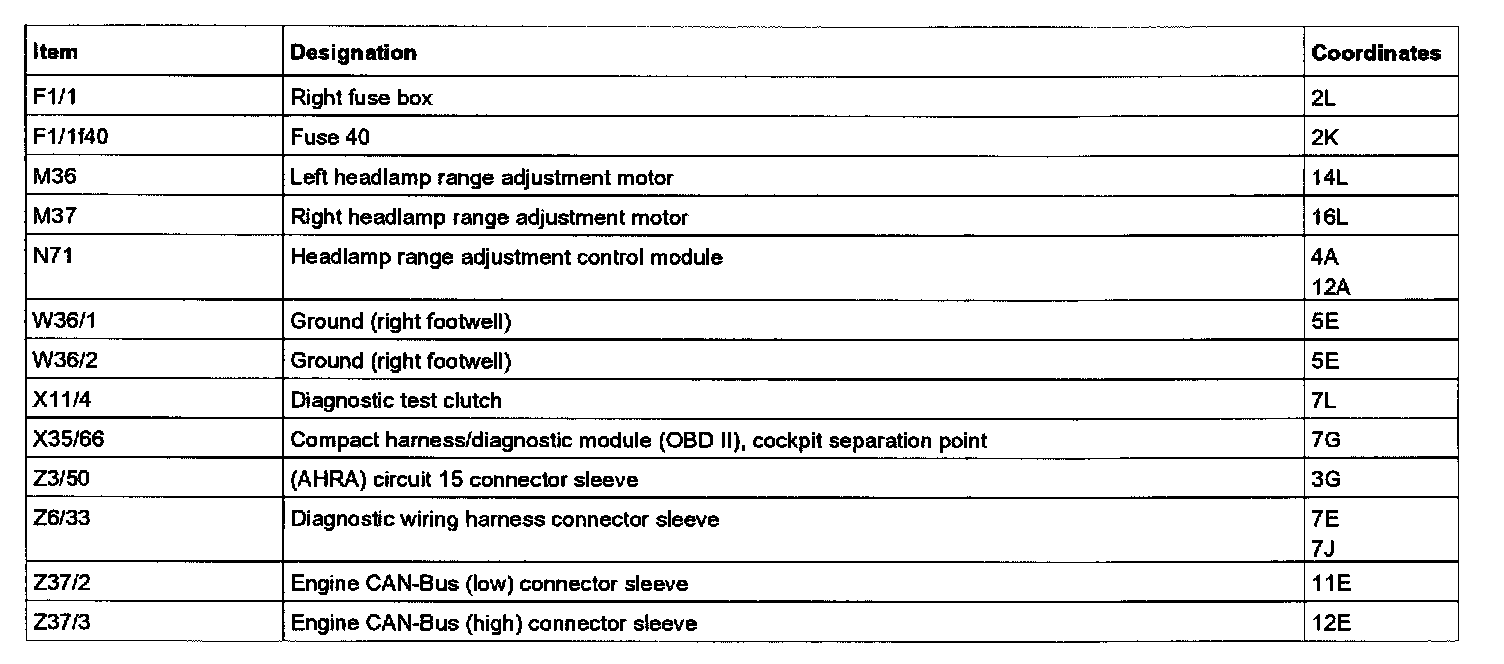

Legend For Headlamp Range Adjustment (HRC) Control Module:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
