Seat Belt Comfort Feature PE91.40-U-2000SA



Seat Belt Comfort Feature PE91.40-U-2000SA
- With CODE (432a) Seat belt with automatic comfort-fit

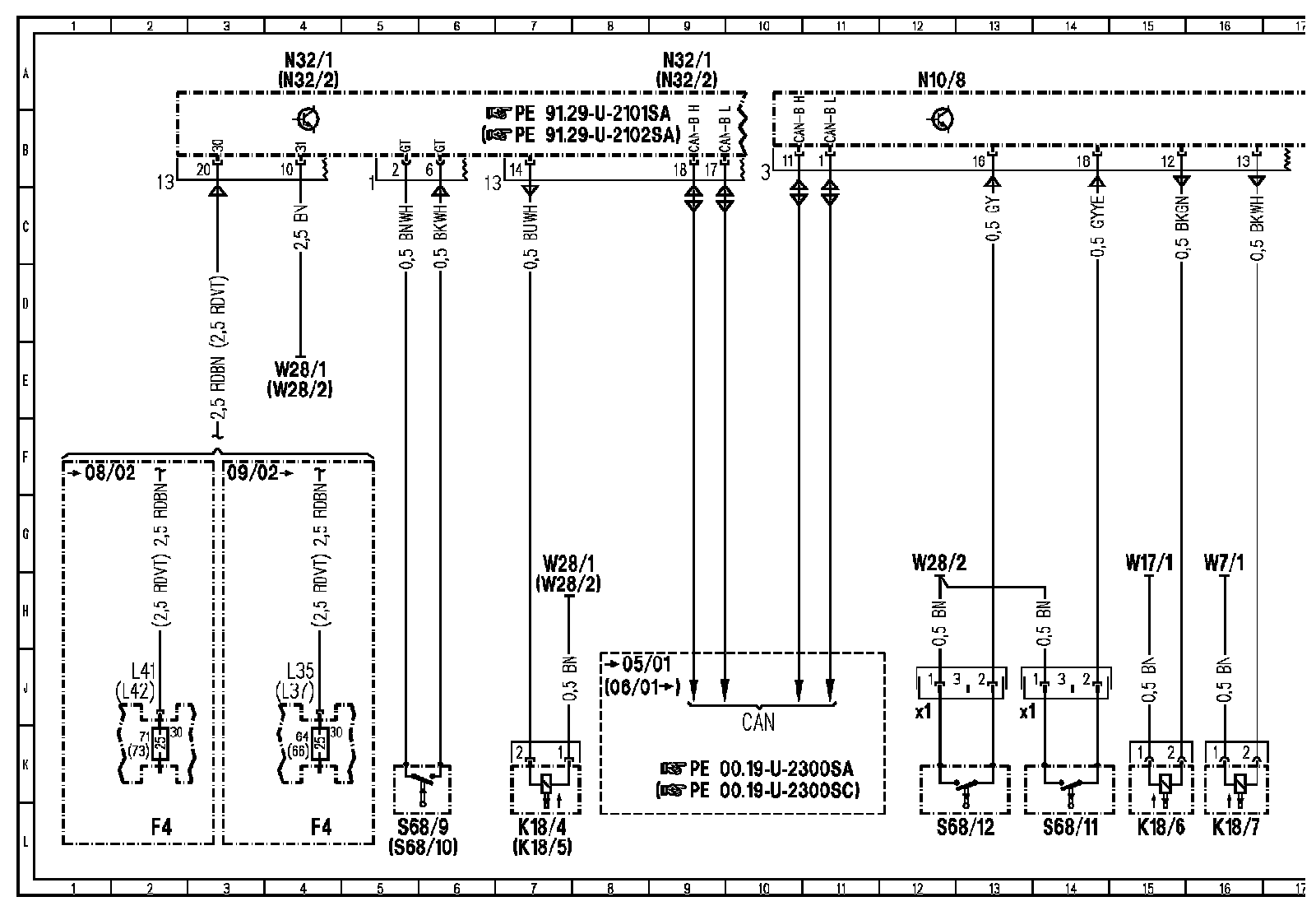

Wiring Diagram, Part 1:

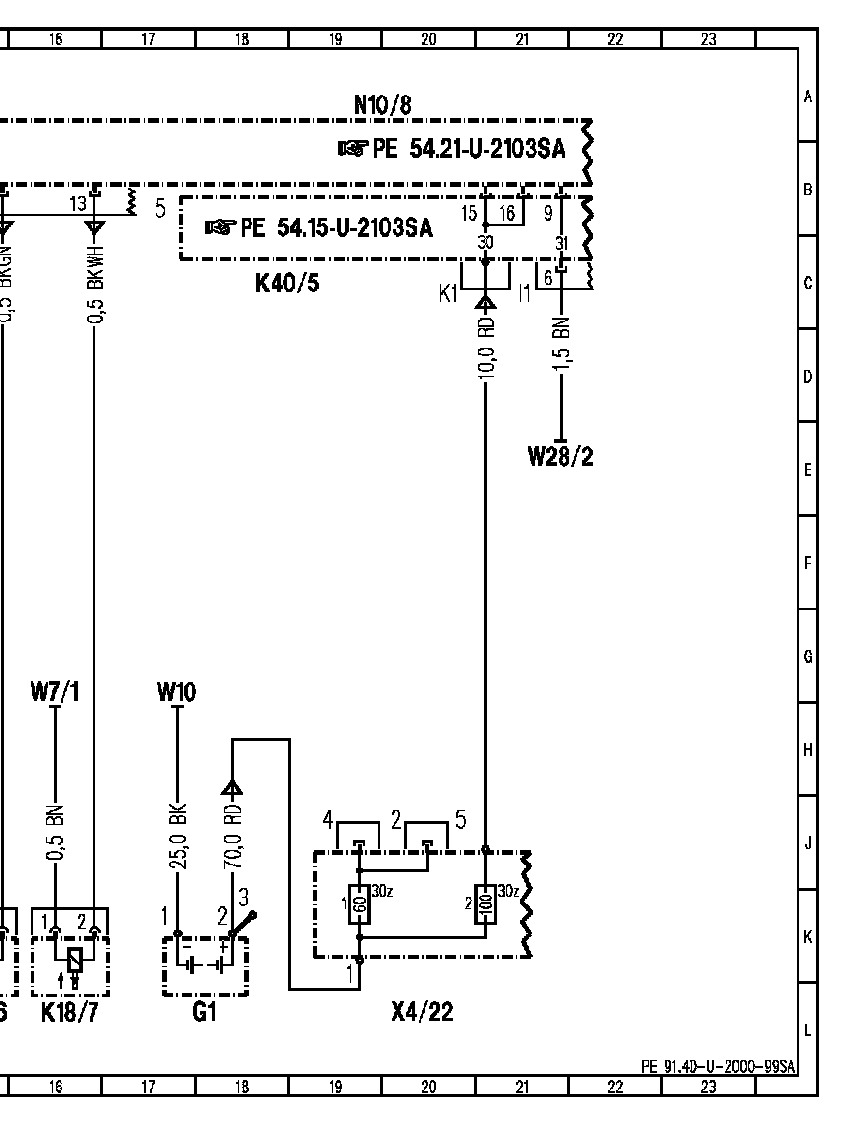

Wiring Diagram, Part 2:

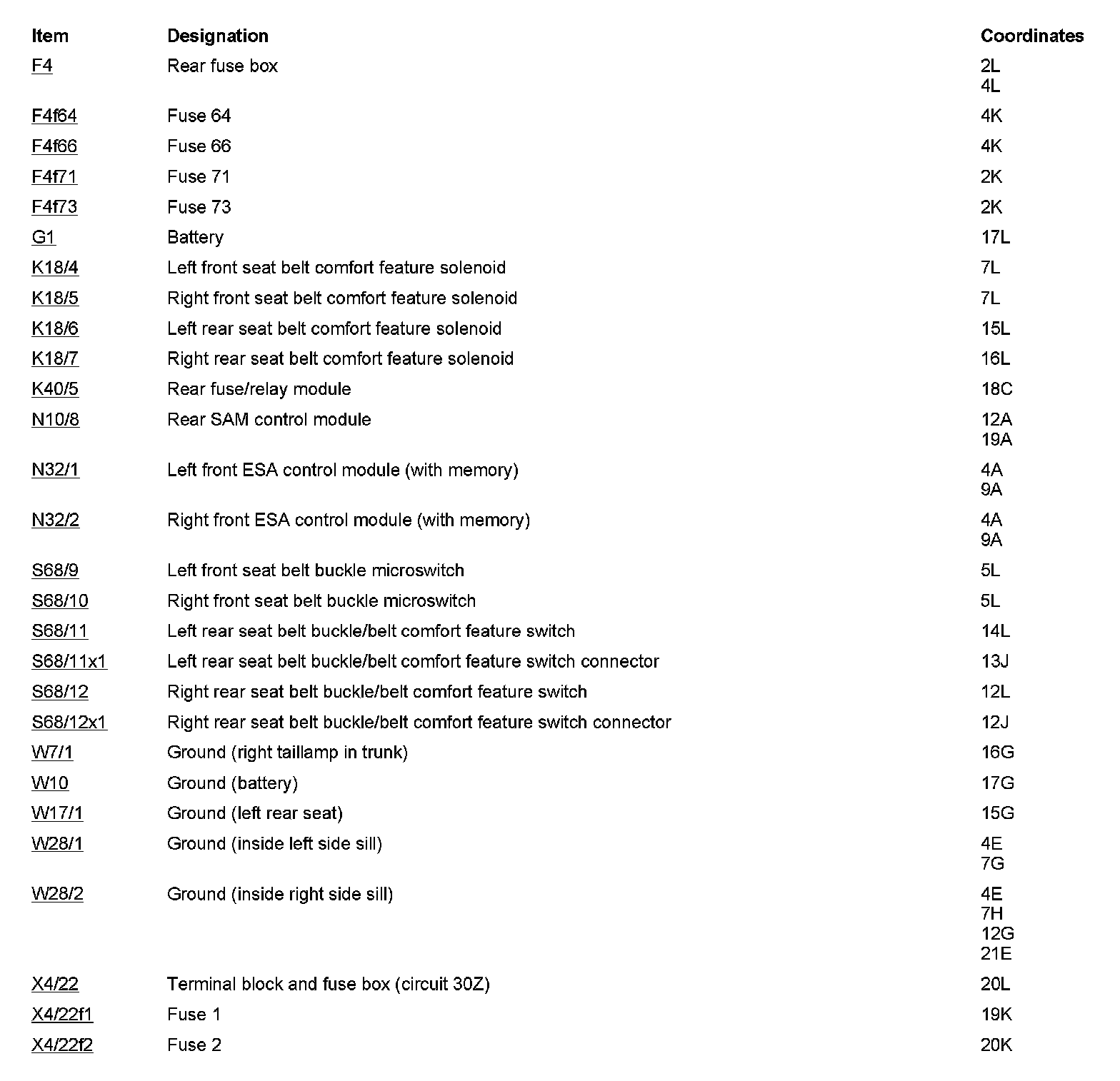

Component Description/Coordinates, F4 to X4/22f2:







Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
