Flex Plate: Service and Repair
Remove/install flywheel/drive plate

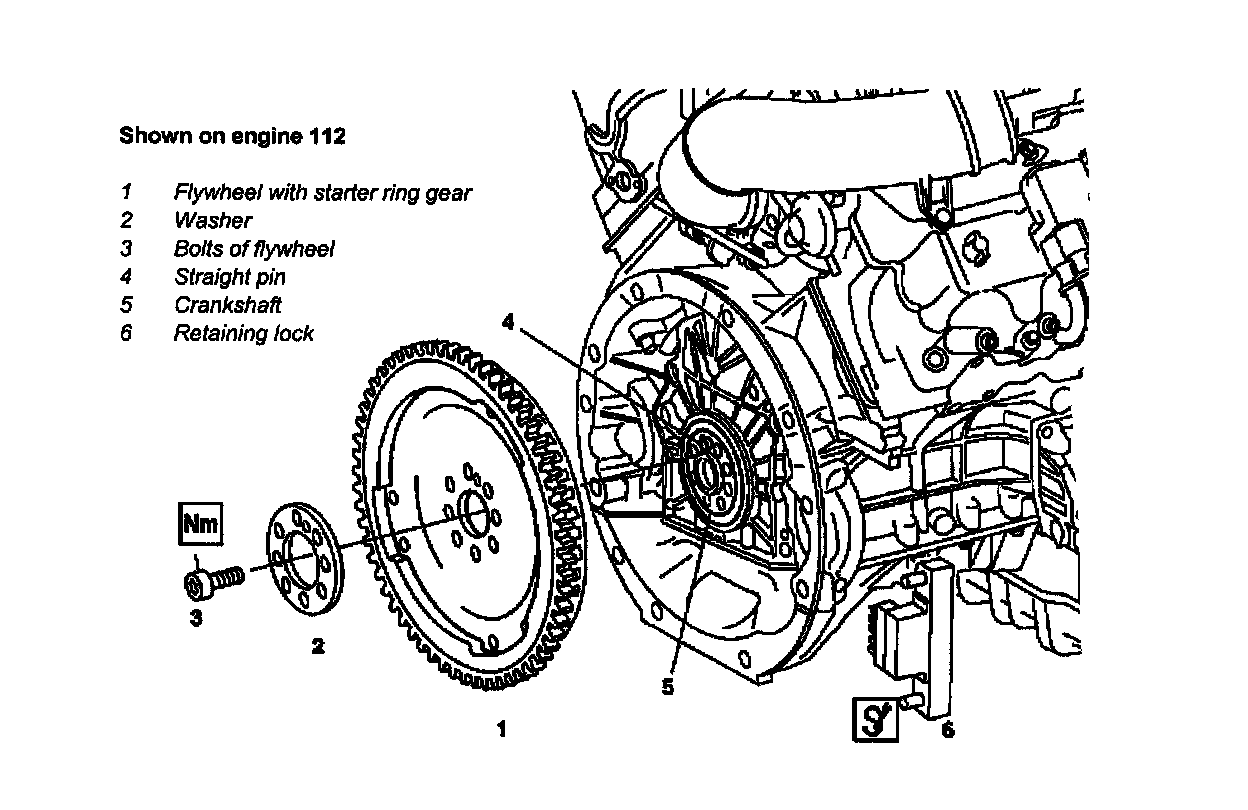

Component Identification:

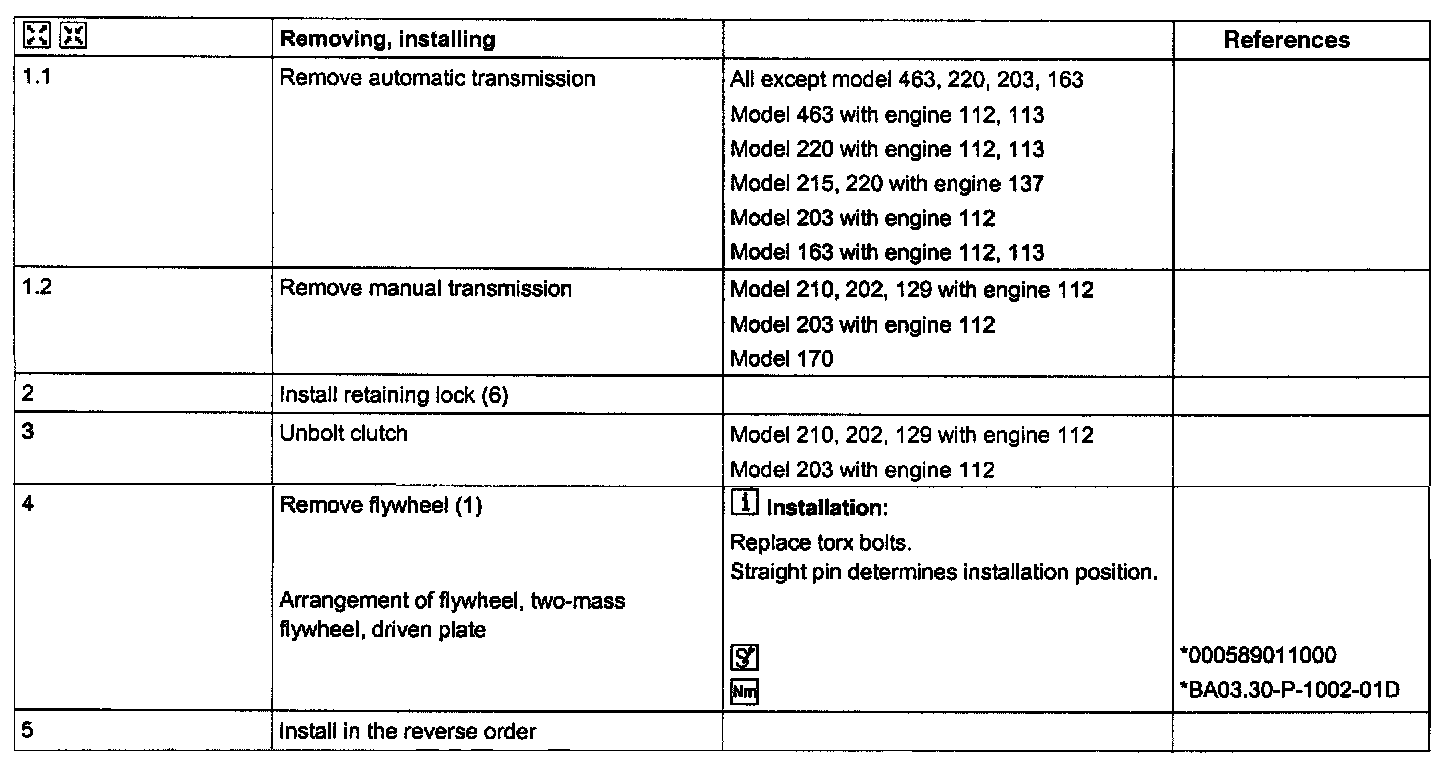

Removing, Installing, Steps 1.1 - 5:
References (BA), Flywheel, Driven Plate:

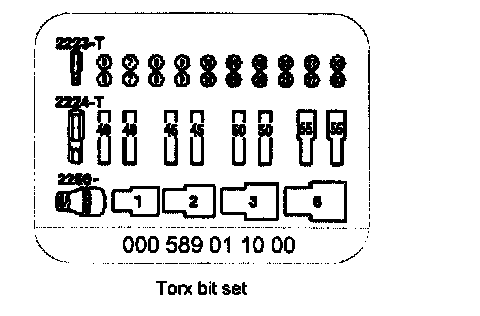

References, Special Tools:
