BE03.20-P-1000-03E Inspection Data of Crankshaft Main Bearing Shells



BE03.20-P-1000-03E Test specifications for crankshaft main bearing shells

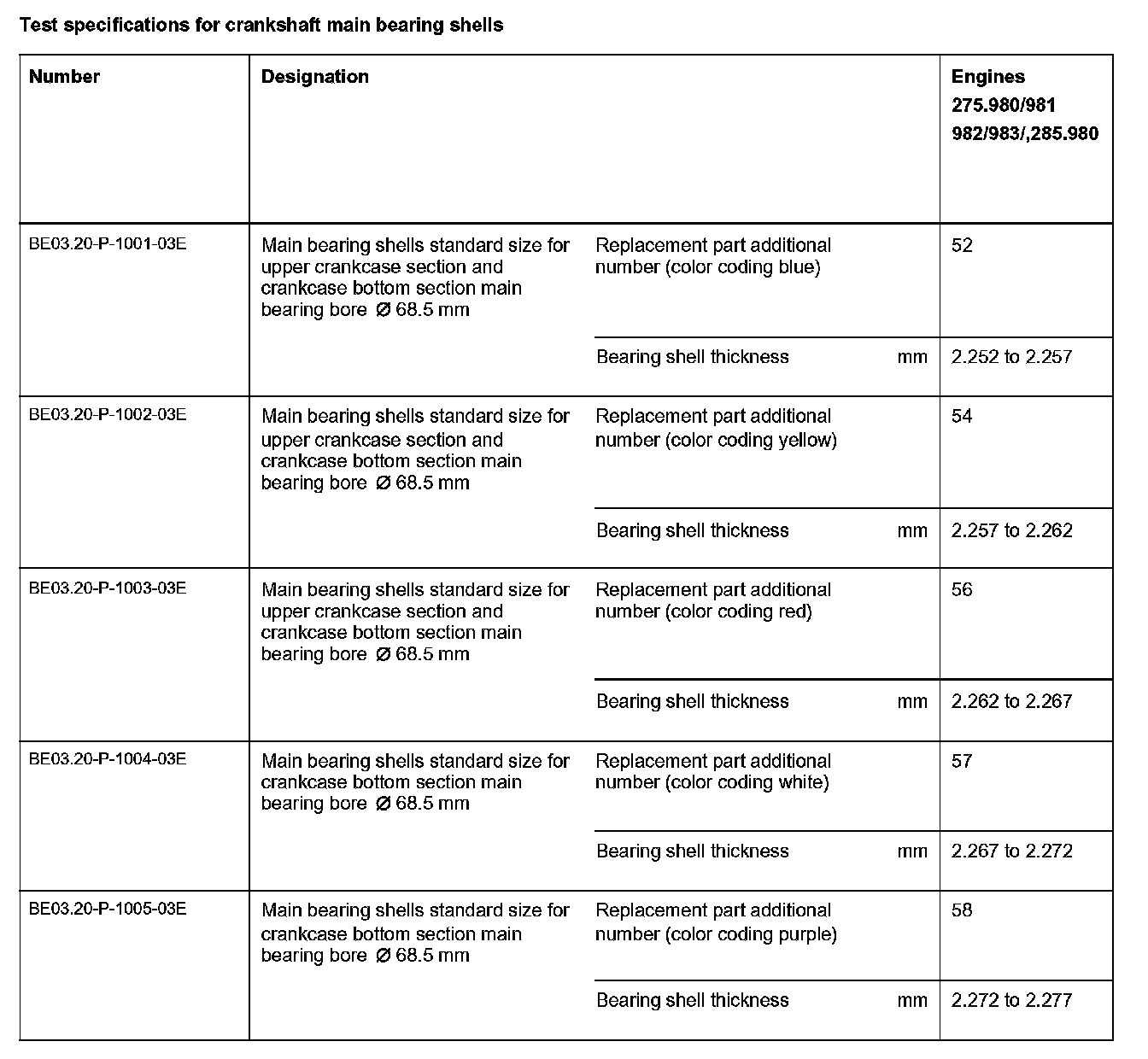

Test specifications for crankshaft main bearing shells:




Test specifications for crankshaft main bearing shells:
