Starter, Generator PE15.00-U-2000KB (Part 2)
Starter, Generator PE15.00-U-2000KB

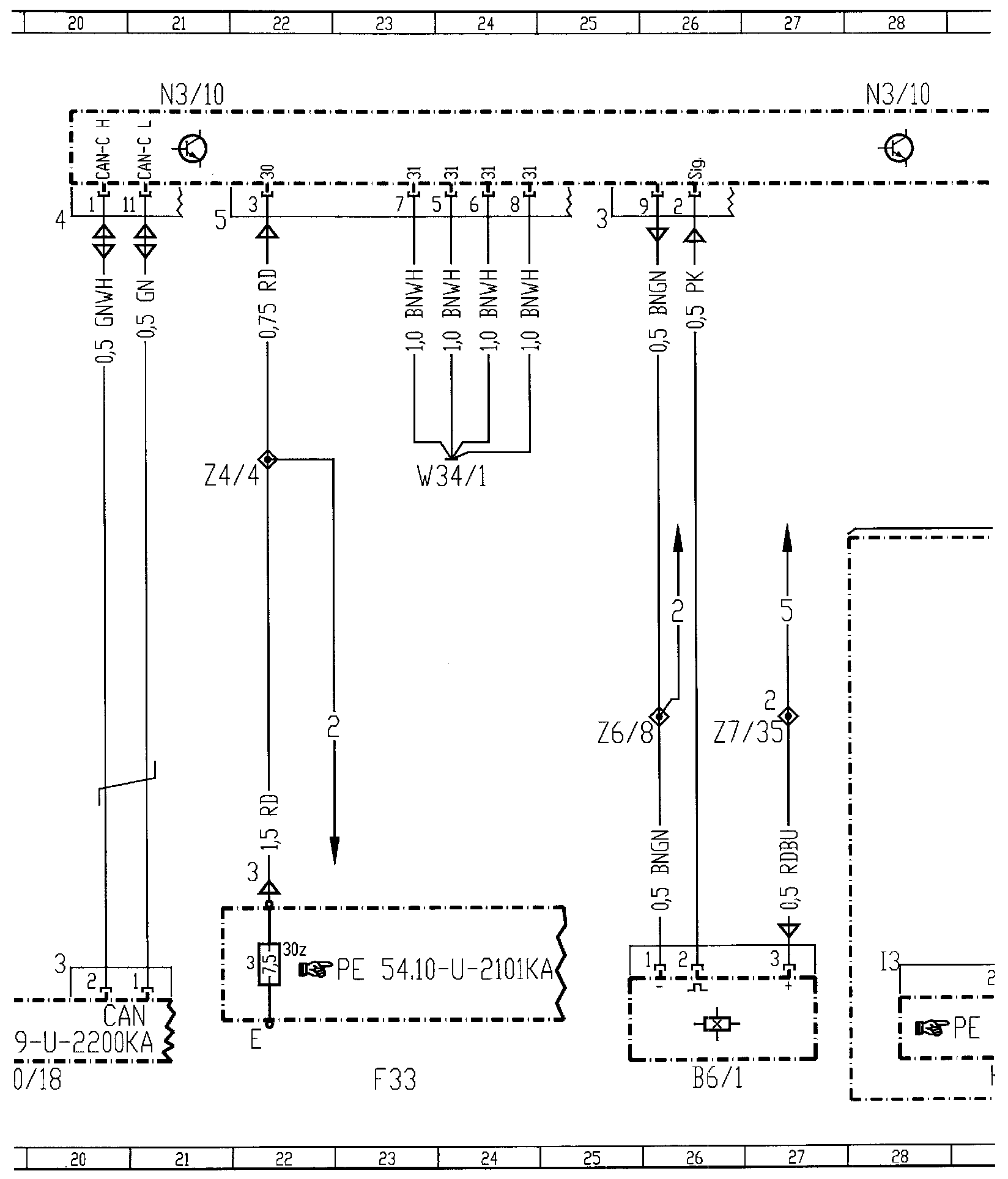

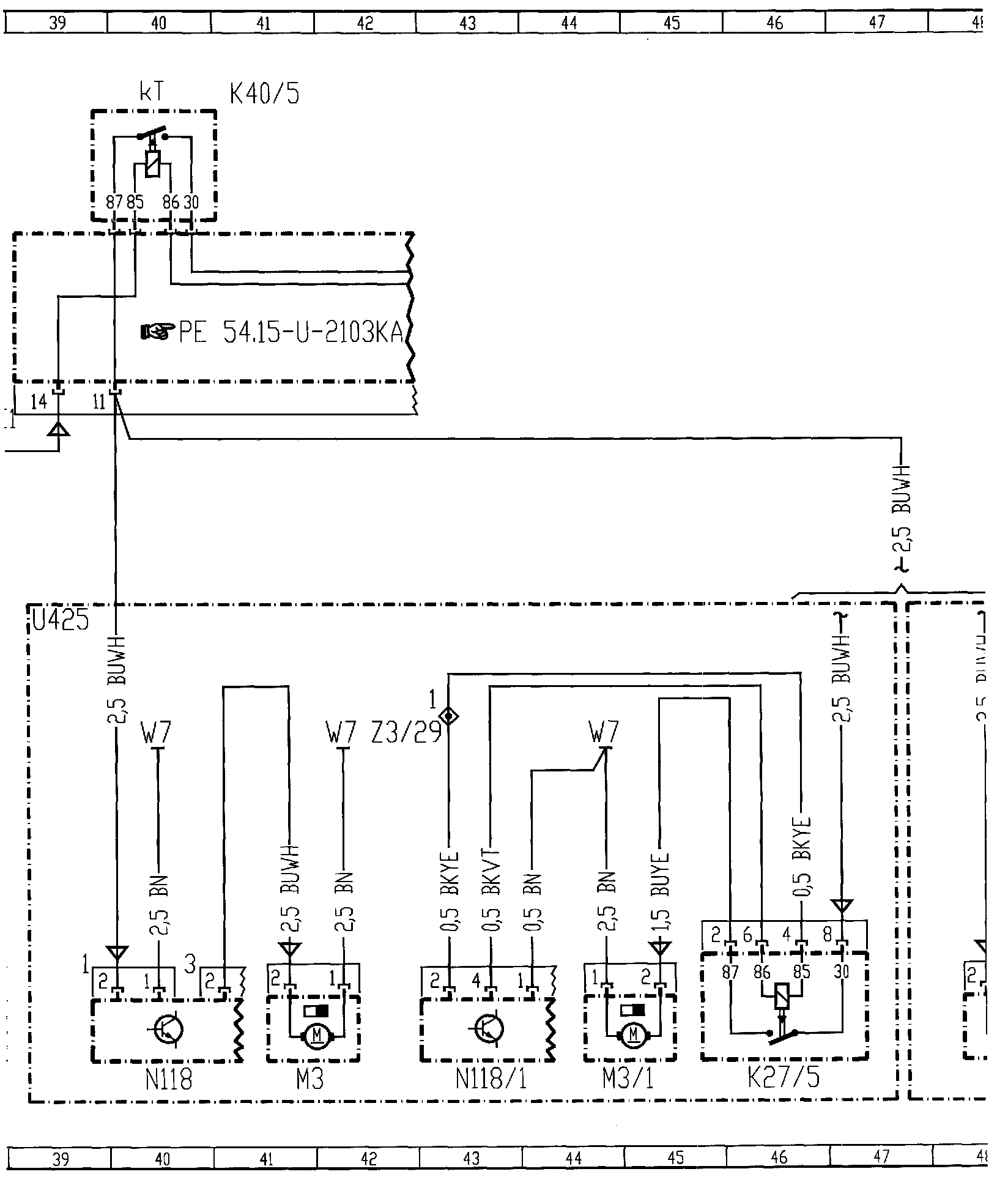

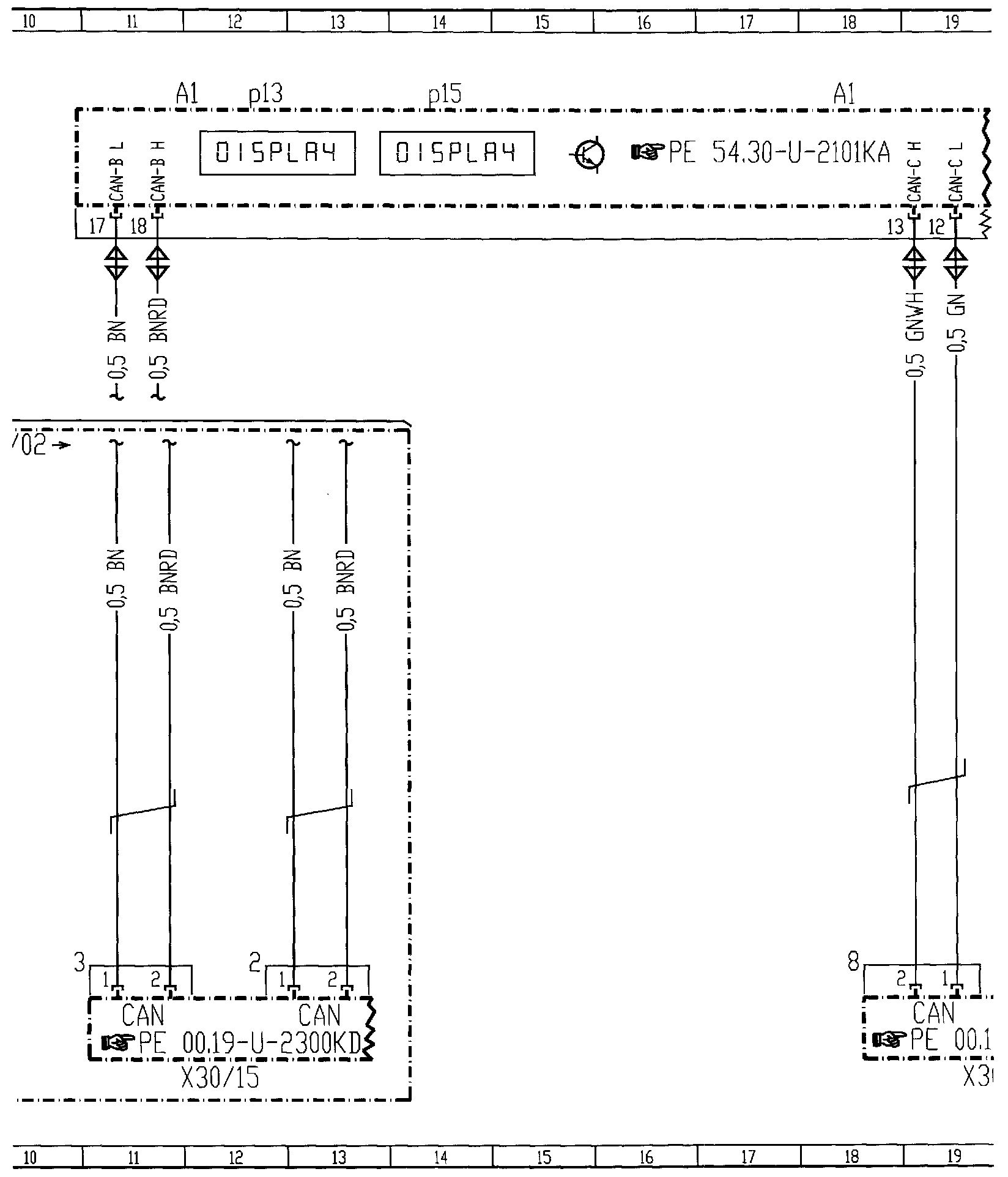

Diagram, Part 1:
Diagram, Part 2:
Diagram, Part 3:
Diagram, Part 4:
Diagram, Part 5:
Diagram, Part 6:

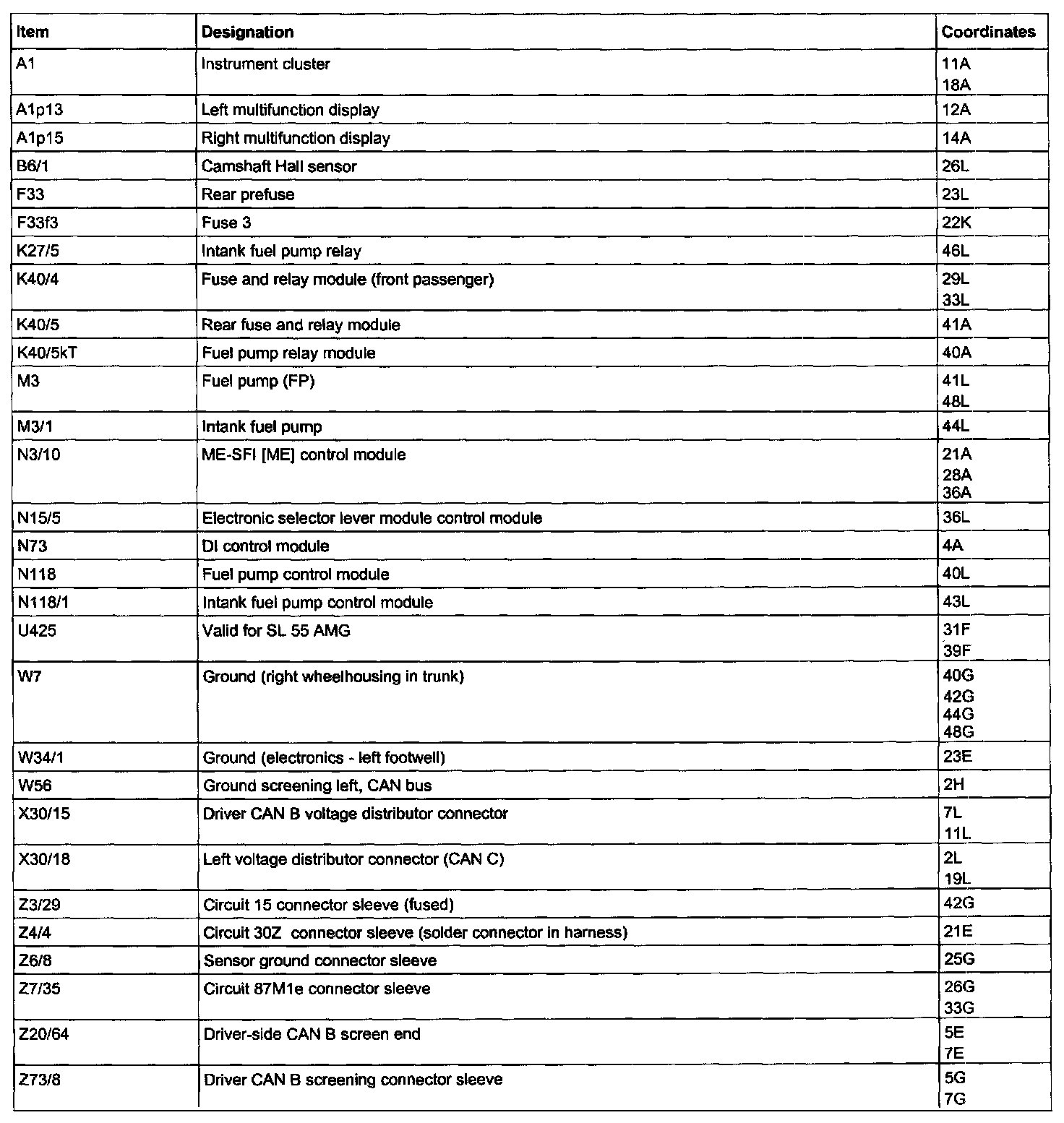

Component Description/Coordinates, A1 - Z73/8:
Starter, Generator PE15.00-U-2000KB
