E. Finding, identifying, and connecting the microphone array connectors





1. Fold back the floor covering (Figure 19) at the left, front to expose the area under the emergency brake pedal.

2. Remove the two plastic panels to expose the wiring harness (Arrows, Figure 19).

3. Within the wiring harness, locate and identify the:

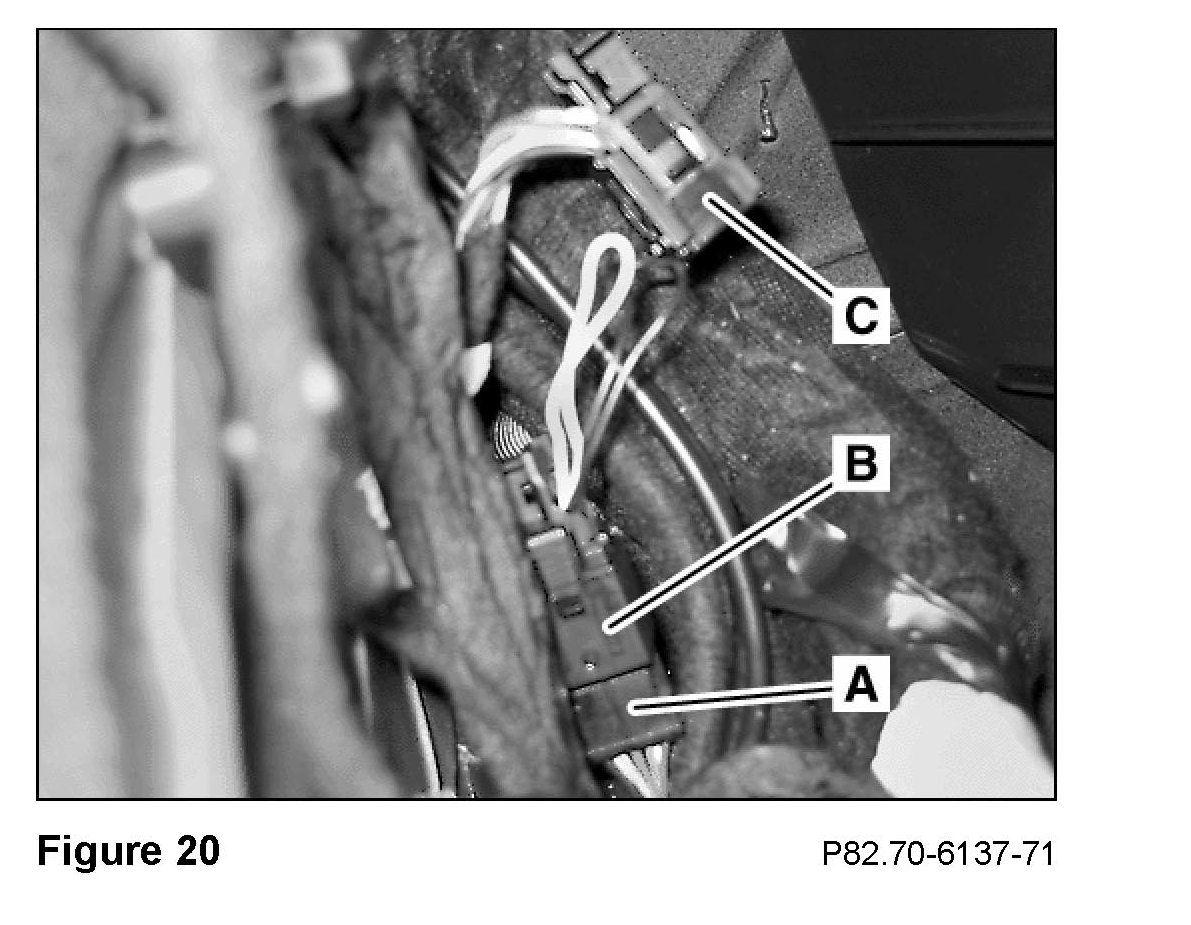

^ Tele Aid microphone array female connector (A, Figure 20) and connected male jumper (B, Figure 20) with black and white looped wires

^ Telephone/VCS microphone array male connector (C, Figure 20)

4. Disconnect, from the Tele Aid microphone array female connector (A, Figure 20), the male jumper (B, Figure 20) and discard it.

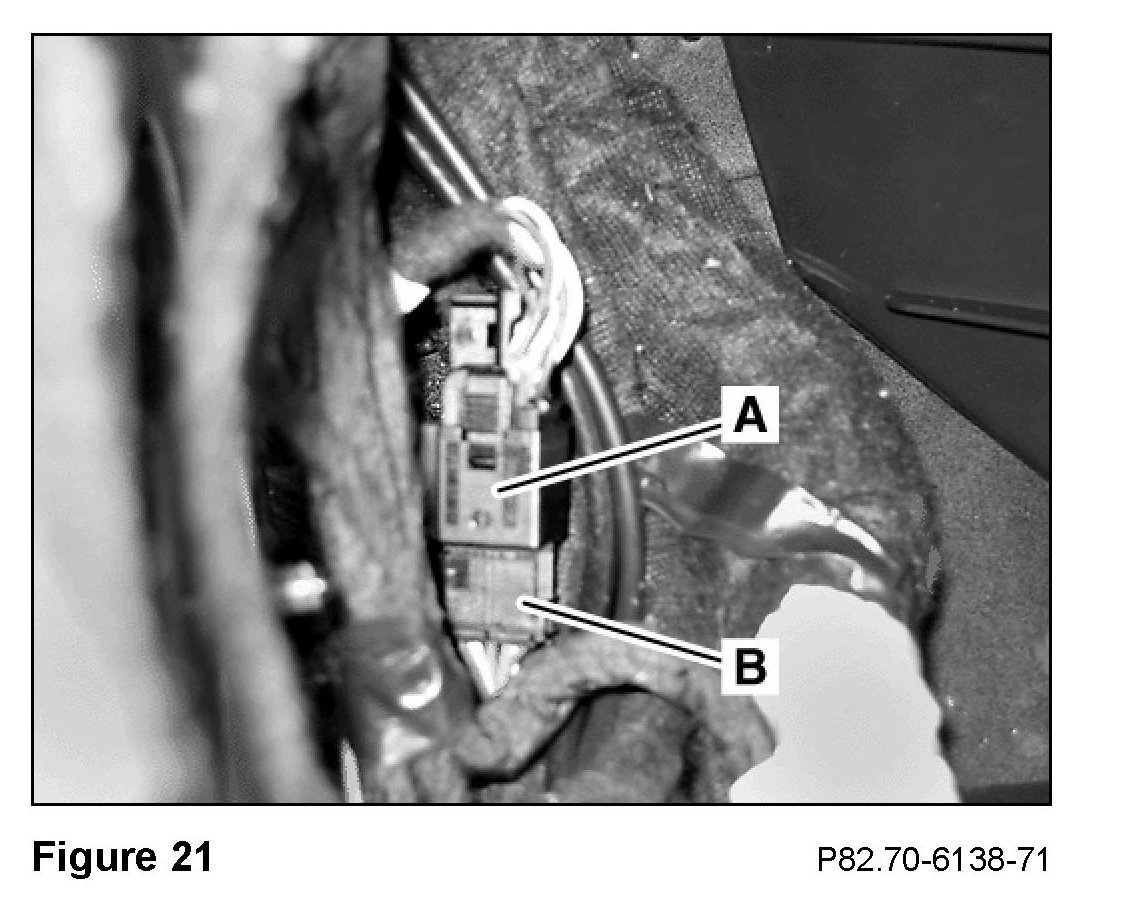

5. Connect the Telephone/VCS microphone array male connector (A Figure 21) to the Tele Aid microphone array female connector (B, Figure 21).

Note:
Listen for an audible click when connecting the microphone array connectors.
