F. Installing Contact Plate & Cradle

F. Installing the contact plate and cradle

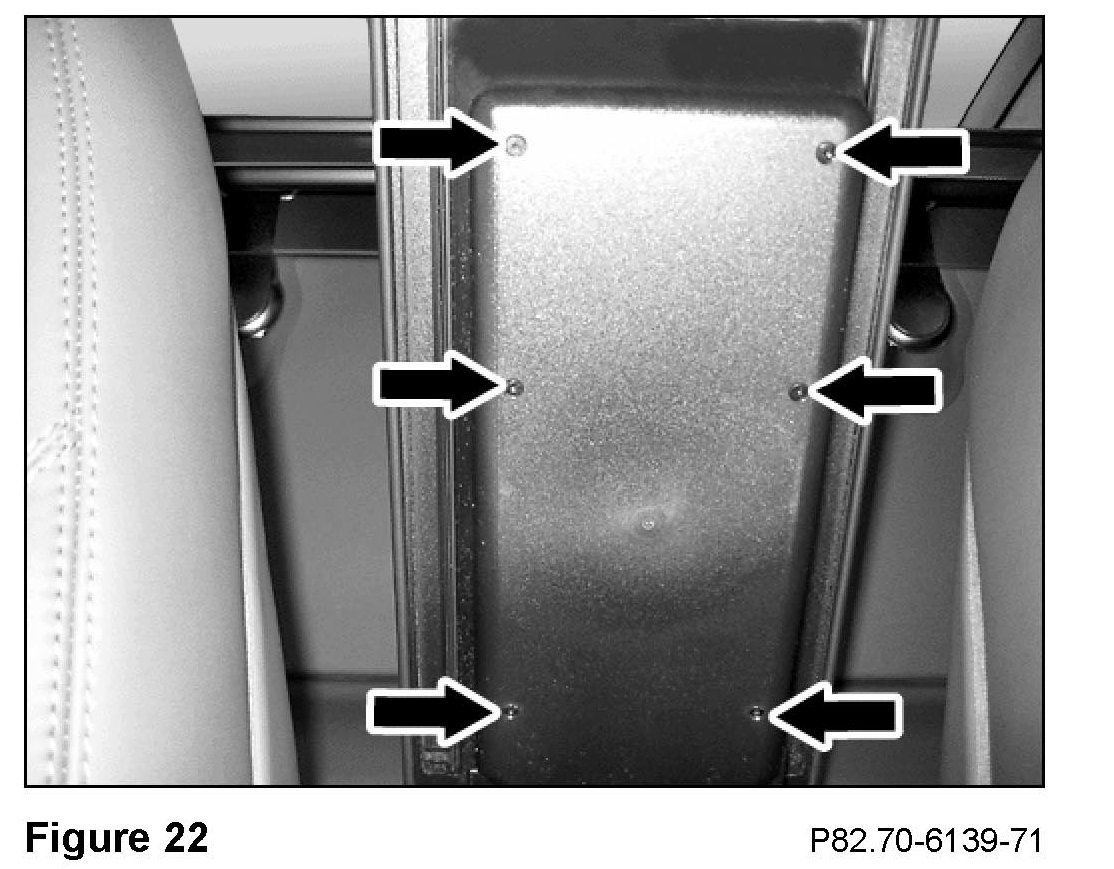

1. Open the lower compartment of the center console and remove the six T10 Torx screws (Figure 22) on the upper compartment underside securing the false floor.

2. Close the lower compartment and open the upper compartment of the center console.

3. Remove the coin holder/Tele Aid button assembly and disconnect the Tele Aid button assembly.





4. Lift out and turn over the false floor, and remove the knockout (Figure 23) by pressing it out from the underside.

NOTICE!
Excessive force will crack or break plastic.

Applying excessive force while removing the knockout can crack or break the plastic false floor.

Do not apply excessive force when removing the knockout from the false floor.





5. Find the kit-included contact plate (A, Figure 24) and identify the FAKRA antenna male connector (B, Figure 24) and the power supply male connector (C, Figure 24).





6. Feed the contact plate leads through the knockout from the top side of the false floor (Figure 25).

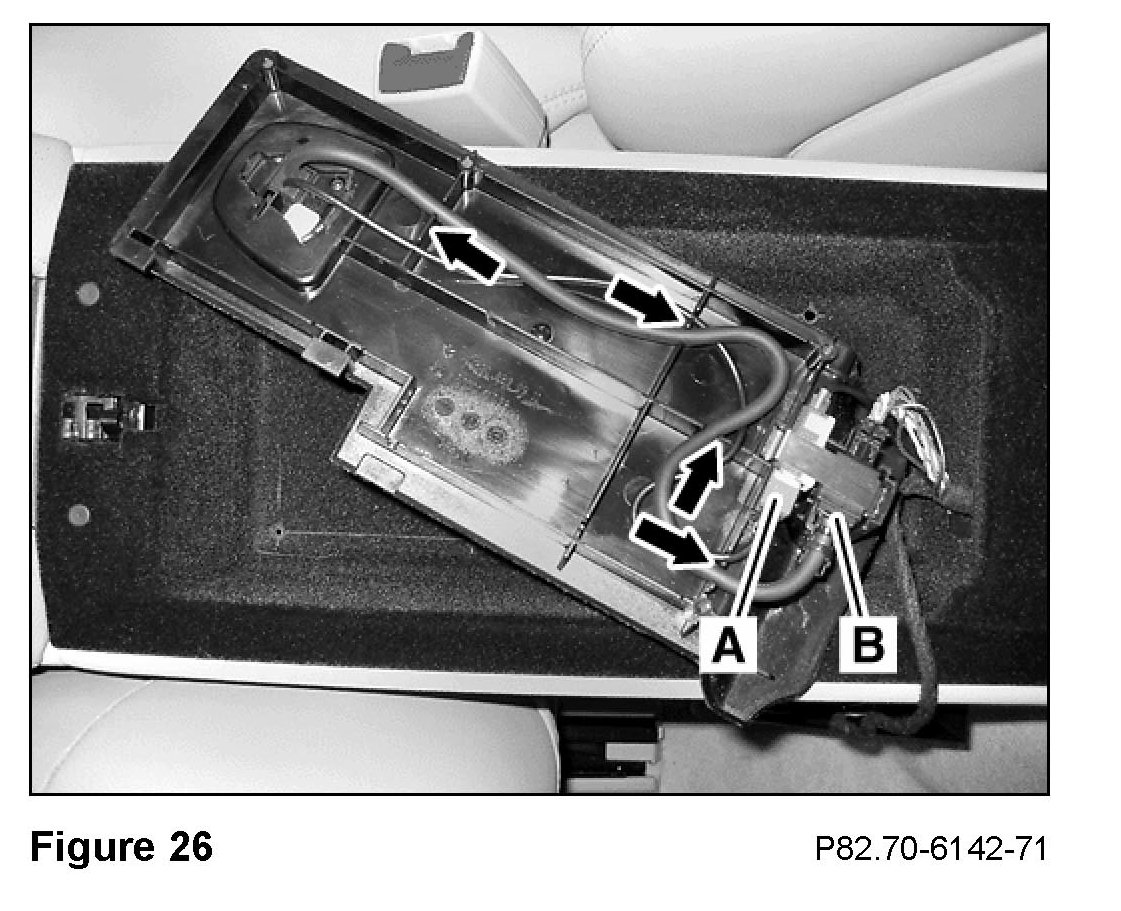

7. Connect the FAKRA antenna male connector of the contact plate to the FAKRA female connector ofthe center console harness (A, Figure 26).

8. Connect the power supply male connector of the contact plate to the power supply female connector ofthe center console harness (B, Figure 26).

9. Route the FAKRA antenna and power supply cables through the cable manager (Arrows, Figure 26) on the false floor underside.

10. Reconnect the Tele Aid button assembly.





11. Reinstall the false floor with mounted contact plate (Figure 27) and coin holder/Tele Aid button assembly with the previously removed six T10 Torx screws.

NOTICE!
Crimped or crushed cables can cause component malfunction or failure. Reinstalling the false floor incorrectly can damage underlying cabling.

Make sure the contact plate leads are not crimped or crushed when reinstalling the false floor.

12. Attach the cradle, according to telephone type, to the contact plate by placing it atop and slightly behind the contact plate and then sliding it forward until it audibly engages.

13. Insert the telephone into the cradle.
