Instrument Panel, Gauges and Warning Indicators
>>
Tire Monitoring System
>>
Description and Operation
>>
GF40.15-P-3001R Tire Pressure Monitor Control Unit, Location/Task/Design
GF40.15-P-3001R Tire Pressure Monitor Control Unit, Location/Task/Design
GF40.15-P-3001R Tire pressure monitor control unit, location/task/design
- with CODE (475) Tire pressure monitor

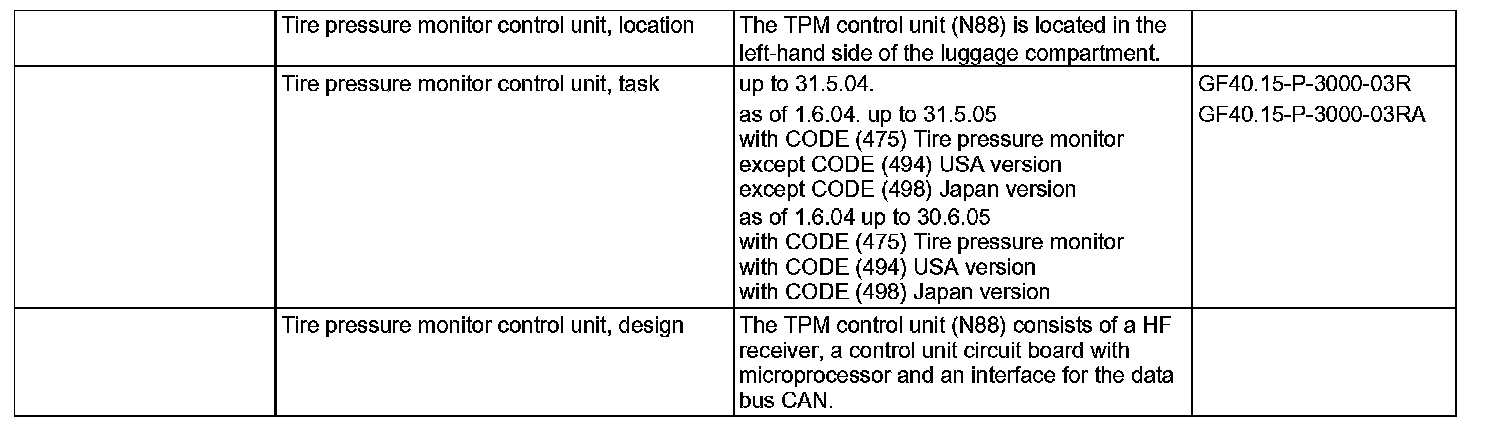

Component Identification:
