AR42.10-P-0010T Bleed Brake System

AR42.10-P-0010T Bleed brake system
- with Adaptive Brake (ABR) [model 211, 219]
- with CODE (P99) Special model "AMG Black Series" [model 230]

Component Identification:

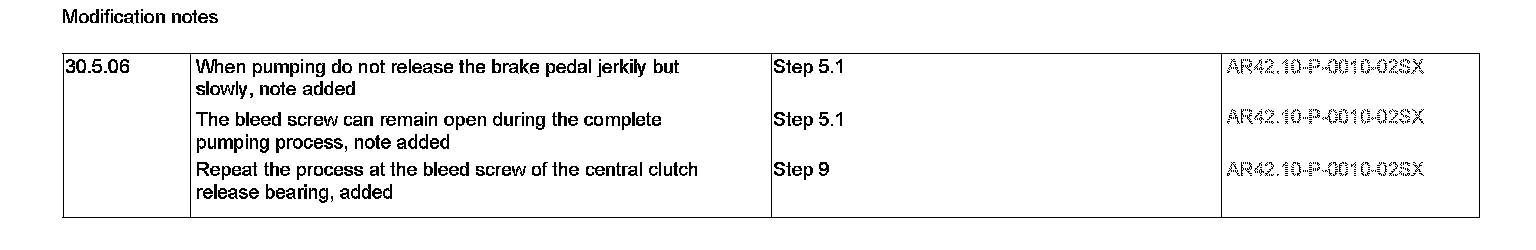

Modification Notes:

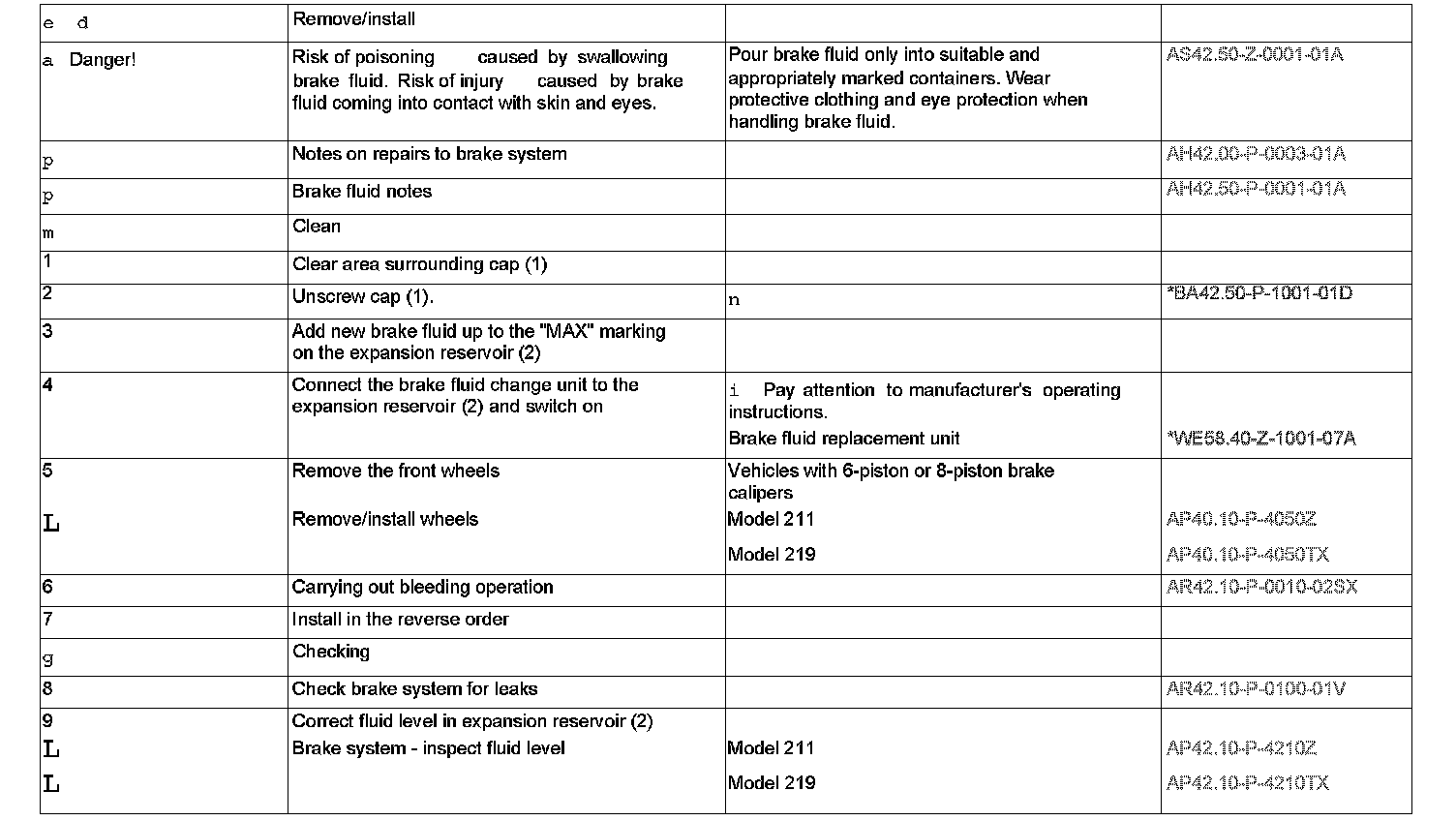

Steps 1 - 9:

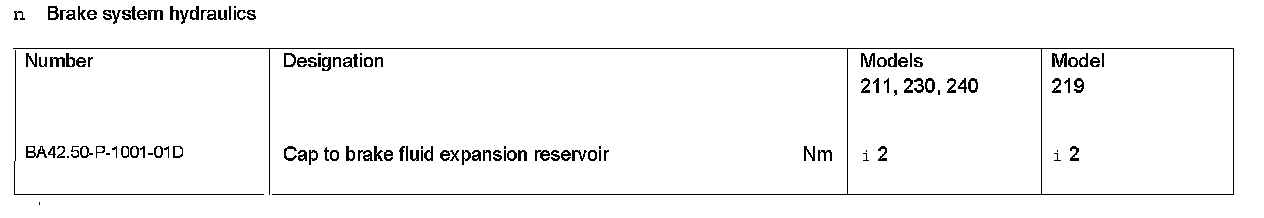

Brake System Hydraulics:

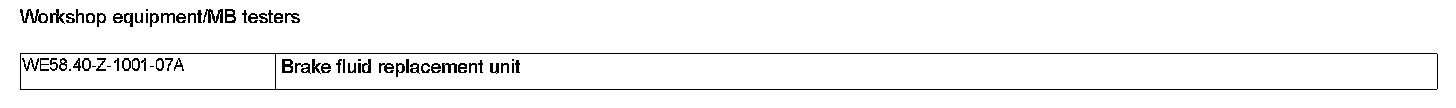

Workshop Equipment/MB Testers:
