Starter, Generator PE15.00-U-2000KD (Part 2)



Starter, Generator PE15.00-U-2000KD


Wiring Diagram, Part-1:

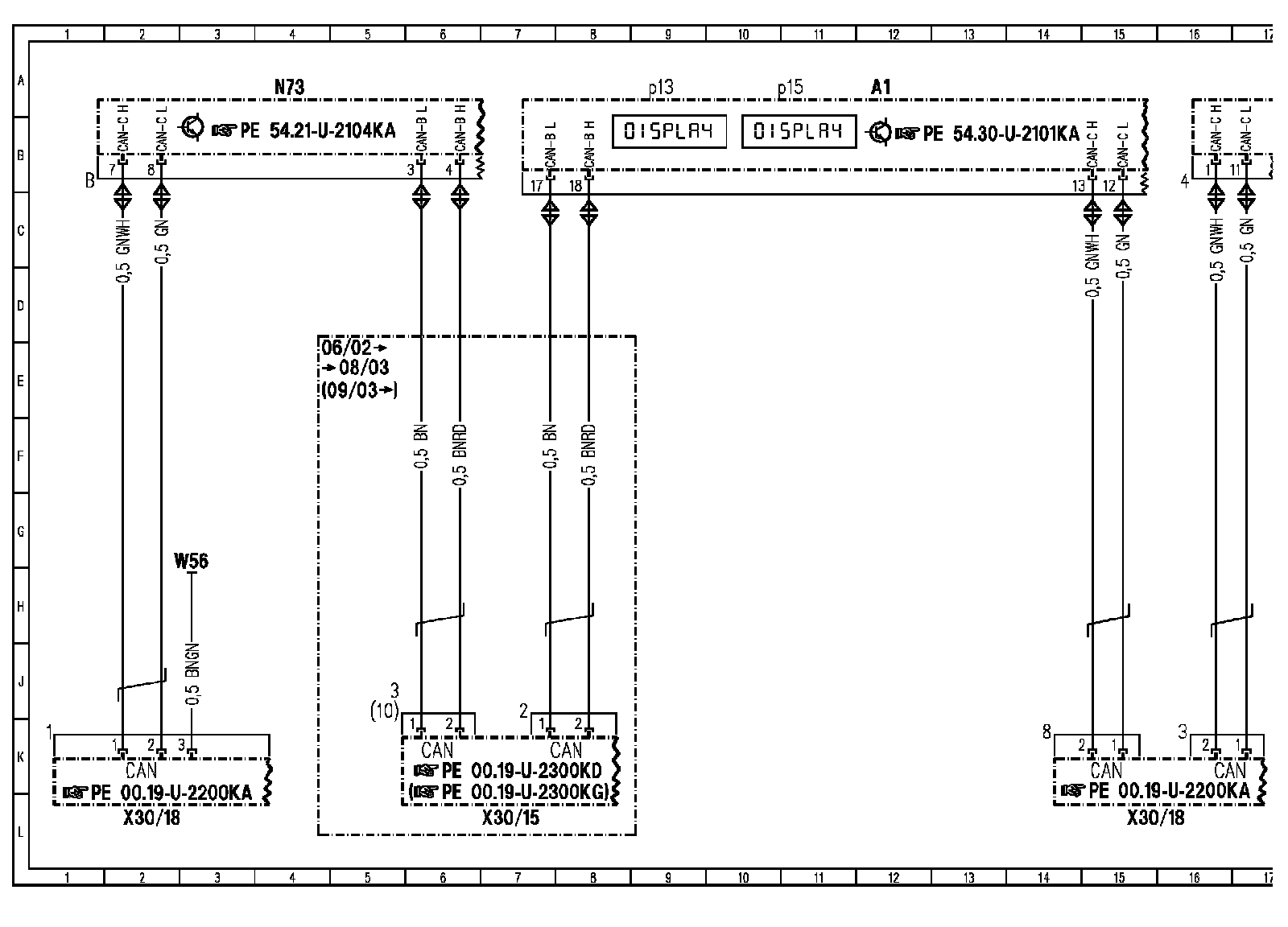

Wiring Diagram, Part-2:





Wiring Diagram, Part-3:





Wiring Diagram, Part-4:

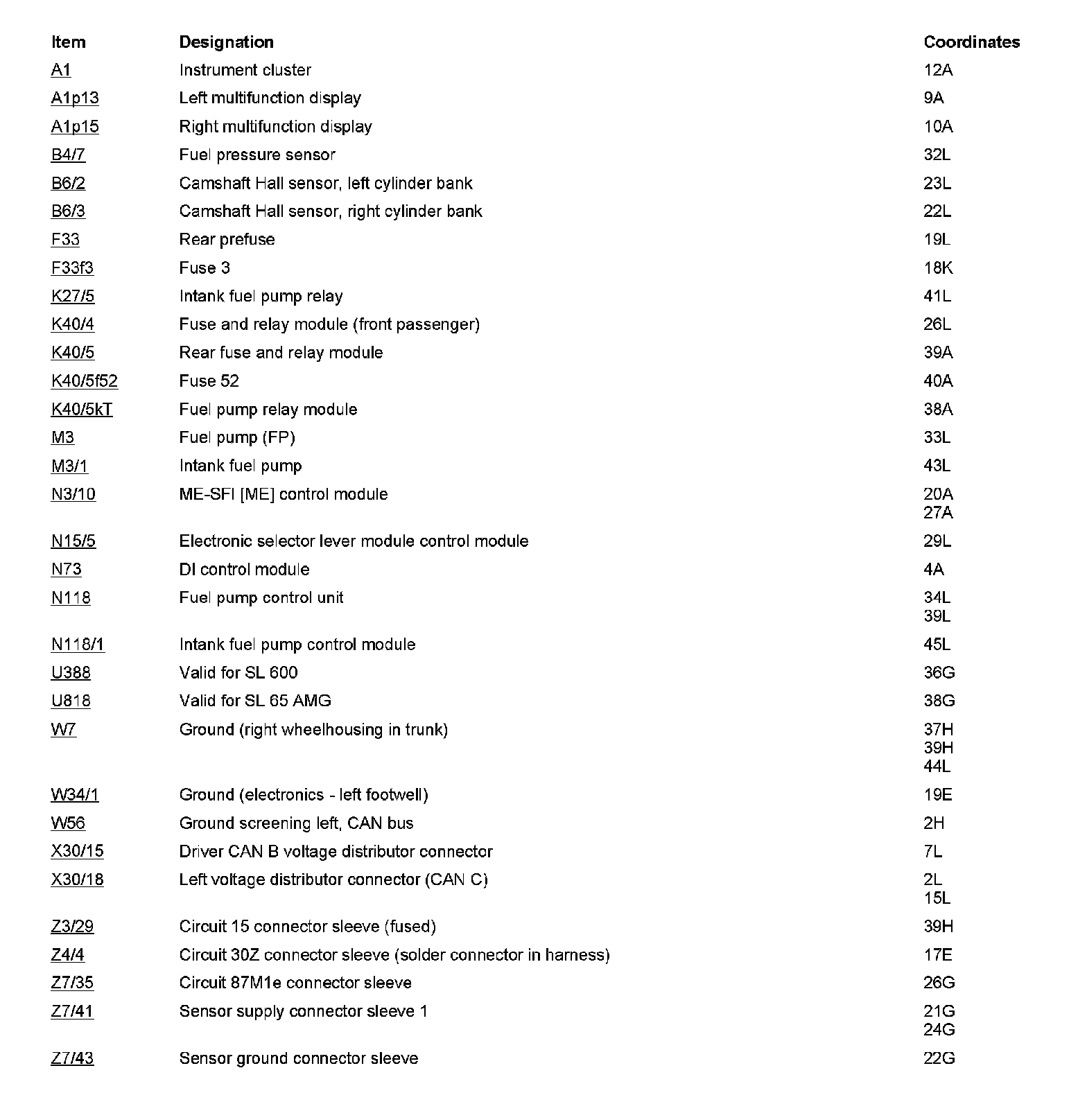

Component Description/Coordinates, A1 To Z7/43:
