Center Mounted Brake Lamp: Service and Repair
AR82.10-P-5375V Remove/install Center High-mounted Stop Lamp

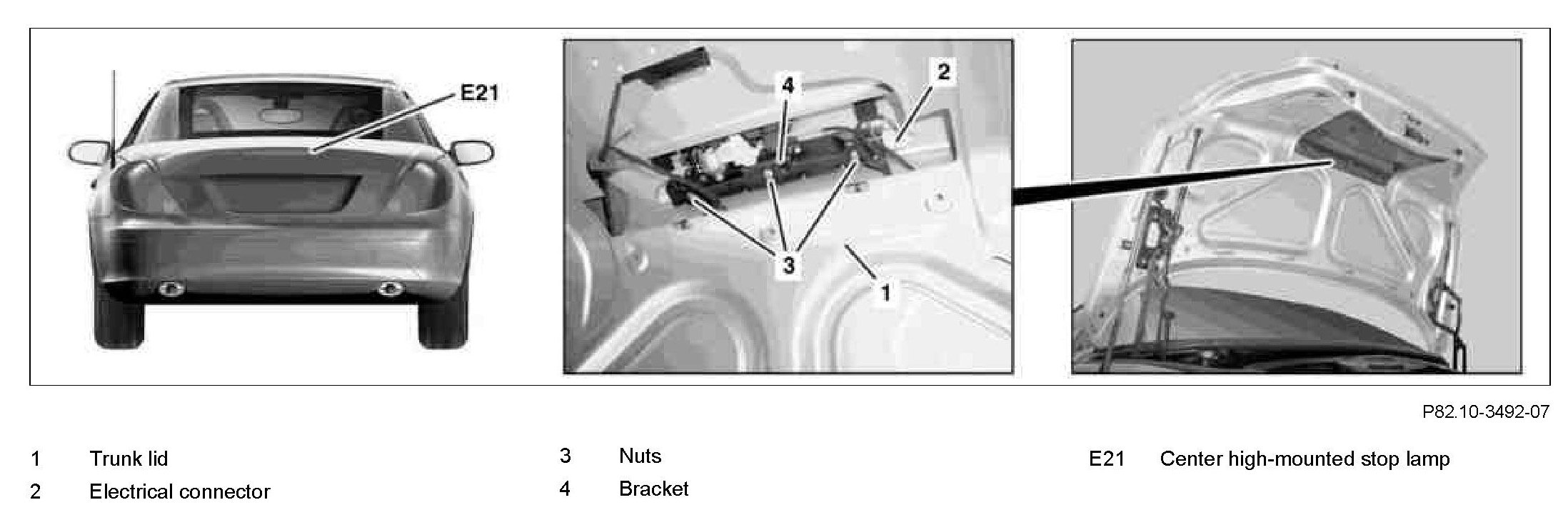

Component Identification:

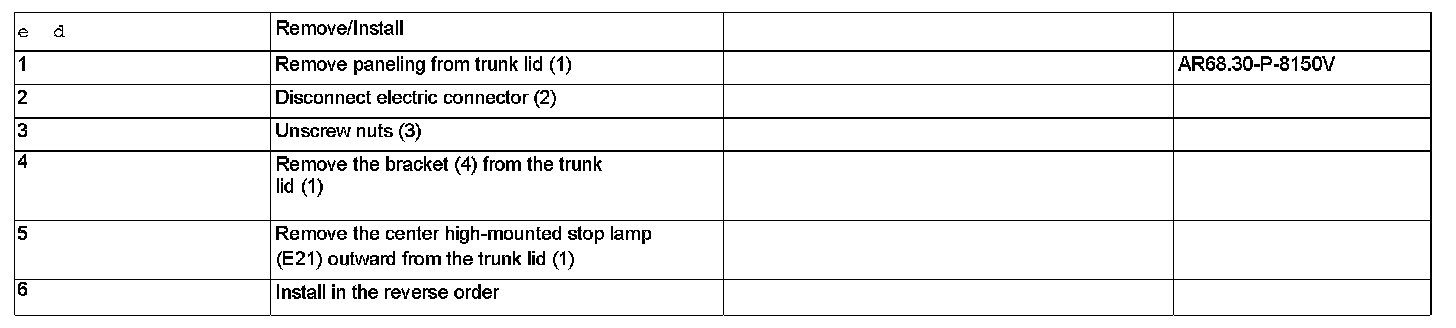

Steps 1 - 6:
