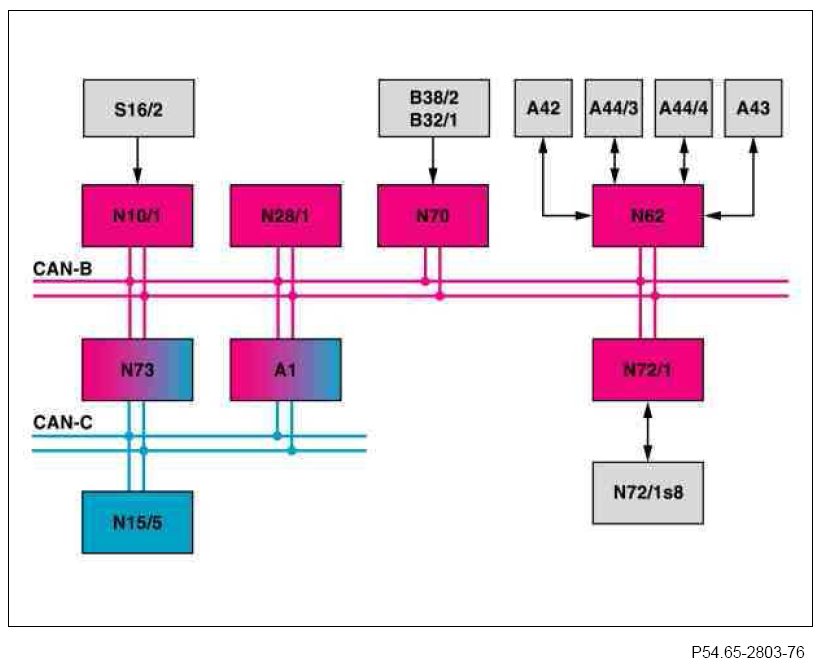

GF54.65-P-0001-01D Parktronic System (PTS) Block Diagram

GF54.65-P-0001-01D Parktronic System (PTS) Block Diagram
- MODEL 203.0 /2 /7
- with CODE (220) Parktronic system (PTS) up to Model Year 8






A1 Instrument cluster
A42 PTS sensor unit, front bumper
A43 PTS sensor unit, rear bumper
A44/3 PTS warning display, rear dome lamp
A44/4 PTS warning indicator, center of dashboard
B32/1 Automatic light switch daylight sensor (up to 31.5.03)
B38/2 Rain/light sensor (as of 1.6.03)
N10/1 Front SAM control unit with fuse and relay module
N15/5 Electronic selector lever module control unit (with transmission 722)
N28/1 Trailer recognition control unit (with code (550) trailer hitch
N62 PTS control unit
N70 Overhead control panel control unit
N72/1 Upper control panel control unit
N72/1s8 PTS OFF switch
N73 DI control unit
S16/2 Backup lamp switch (with transmission 716)
CAN-B Controller area network bus class B (interior compartment) (CAN B)
CAN-C Controller Area Network bus, class C (engine compartment) (CAN C)
