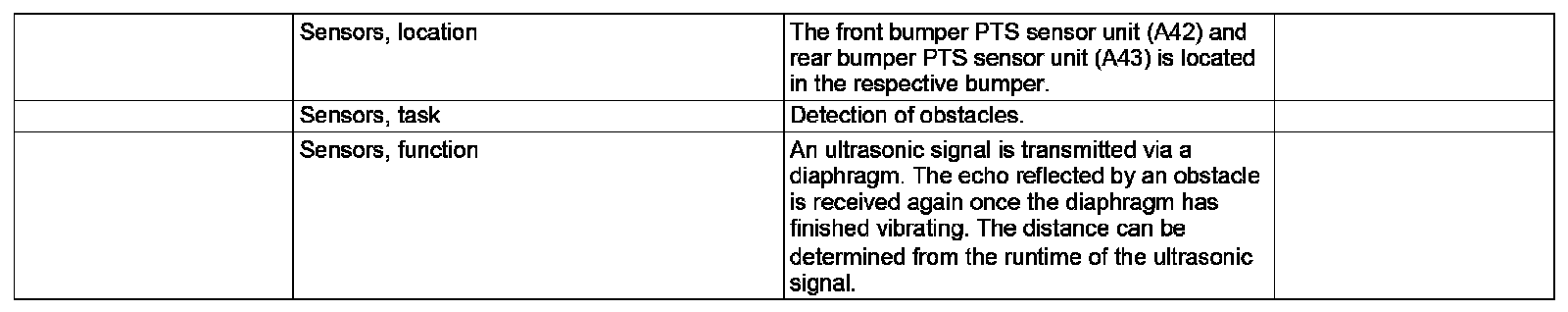

GF54.65-P-4102PP Sensors, Location/Task/Function

GF54.65-P-4102PP Sensors, Location/task/function
- MODEL 203.0 /2 /7 up to Model Year 8






Shown on model 203.0 as of 24.4.04

A42 PTS sensor unit, front bumper
A42b1 Left outer sensor
A42b2 Center left sensor, front bumper
A42b3 Left inner sensor, front bumper
A42b4 Right inner sensor, front bumper
A42b5 Center right sensor, front bumper
A42b6 Right outer sensor
A43 PTS sensor unit, rear bumper
A43b7 Right outer sensor, rear bumper
A43b8 Right inner sensor
A43b9 Left inner sensor
A43b10 Left outer sensor, rear bumper
