AZ82.61-P-0012-02BKK Retrofit Plug-In Connector To Portable Navigation Unit Wiring Harness

AZ82.61-P-0012-02BKK Retrofit Plug-in Connector To Portable Navigation Unit Wiring Harness
- MODEL 169.###, 203.###, 245.2## 1#

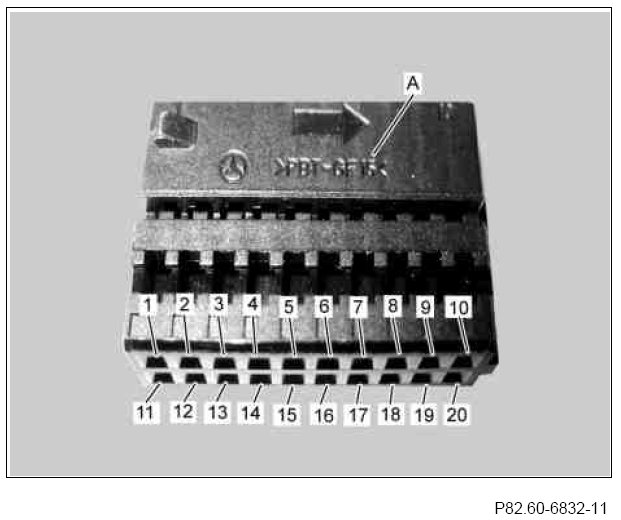

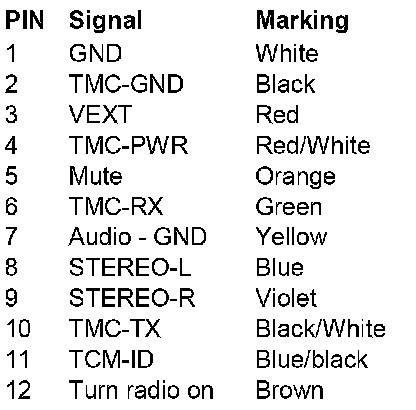

Pin assignments of 20-pin MQS coupling
Ensure that the spring shackles of the female contacts engage correctly in the connector housing (A).

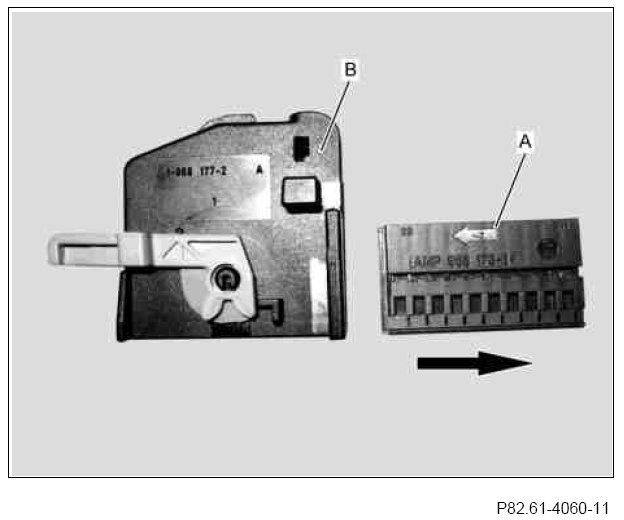

Secondary unlocking and locking of the MQS coupling






1 Remove connector housing (A) over the catch resistance in the direction of the arrow from the cap (B). Remove connector housing (A) from cap (B) in direction of arrow.
2 Lock in reverse order.
The connector housing (A) is mechanically coded and cannot be mixed up.
