AZ82.61-P-0012-02P Retrofit Plug-In Connector To Portable Navigation Unit Wiring Harness

AZ82.61-P-0012-02P Retrofit Plug-in Connector To Portable Navigation Unit Wiring Harness
- MODEL 169.### 1#
- with CODE (520) Audio 5 CD radio
- with CODE (523) MB Audio 20 radio
- MODEL 203.### 1#
- with CODE (523) MB Audio 20 radio
- with CODE (535) Audio 20 CD radio, USA

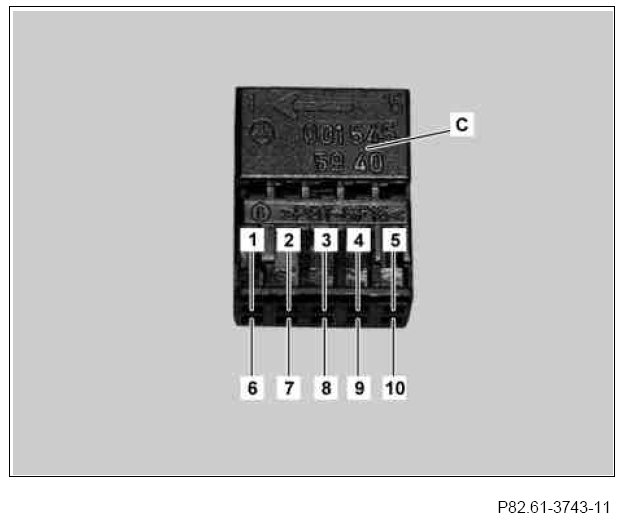

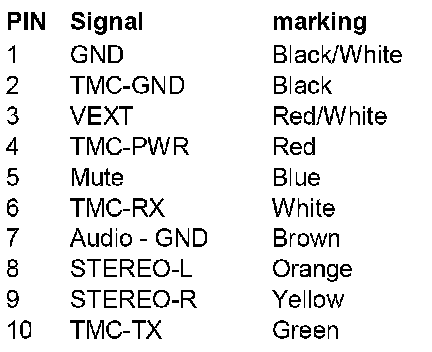

Pin assignments of 10-pin MQS coupling
Ensure that the spring shackles of the female contacts engage correctly in the connector housing (C).

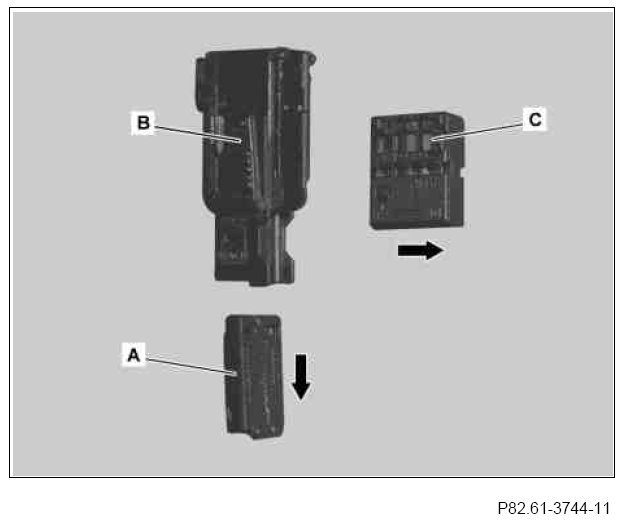

Secondary unlocking and locking of the MQS coupling






1 Detach cover (A) from cap (B) in direction of arrow over the catch resistance.
2 Remove connector housing (C) from cap (B) in direction of arrow.
3 Lock in reverse order.
