AR88.70-P-9020P Remove/Install Mirror Glass

AR88.70-P-9020P Remove/Install Mirror Glass











1 Remove cover from outside rearview mirror
2 Unhook retaining spring (2)

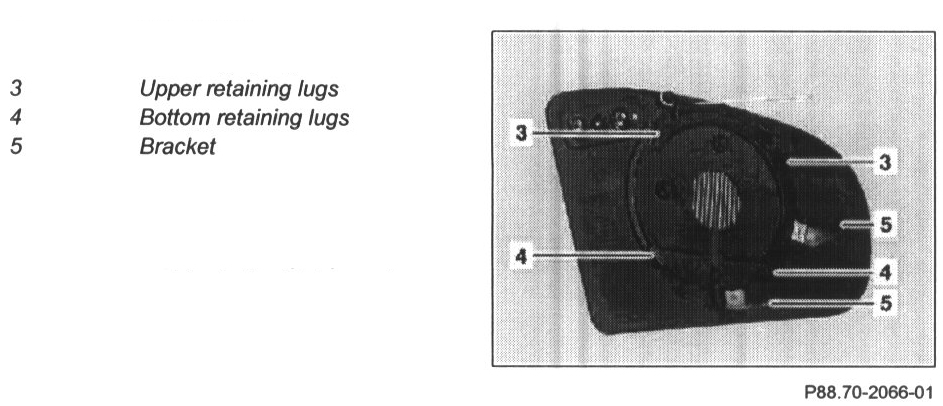

3 Press retaining lugs (3) to side
4 Remove mirror glass (1) from drive

NOTE: Installation: First move mirror glass (1) with brackets (5) into retaining pockets at bottom of drive

5 Disconnect outside rearview mirror connector

NOTE: Left electrically adjustable and heated outside rearview mirror (M21/1x1), right (M21/2x1) connectors

6 Install in the reverse order
