GF91.29-P-0004PQ Electric seat adjustment (ESA), function

GF91.29-P-0004PQ Electric Seat Adjustment (ESA), Function

- except CODE (275) Electrically adjustable driver seat, steering column and outside mirrors with memory
- except CODE (242) Electrically adjustable front passenger seat with memory
- up to Model Year 8

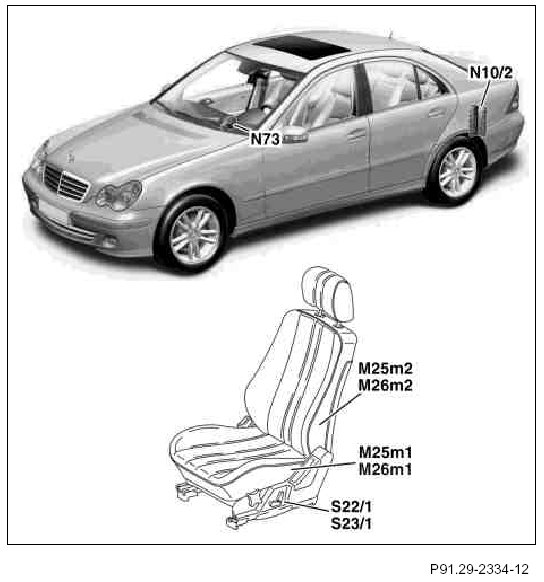

Shown on driver seat in model 203.0 as of 24.4.04







M25m1 Seat height up/down motor
M25m2 Backrest motor
M26m1 Seat height up/down motor
M26m2 Backrest motor
N10/2 Rear SAM control unit with fuse and relay module
N73 DI control unit
S22/1 Driver partially-electric seat adjustment switch
S23/1 Front passenger partially-electric seat adjustment switch

Function requirement
- Circuit 15R ON or
- Circuit 15 ON or
- Door open

Function
Driver and front passenger seats are partially electrically adjustable. Manual adjustment is performed using the driver-side partially electric seat adjustment switch (S22/1) on the driver seat and the front passenger partially electric seat adjustment switch (S23/1) on the front passenger seat.

The rear SAM control unit with fuse and relay module (N10/2) supplies the driver-side partially electric seat adjustment switch (S22/1) and front passenger partially electric seat adjustment switch (S23/1) with voltage.
The driver-side partially electric seat adjustment switch (S22/1) actuates the motor for the driver seat height up and down (M25m1) to achieve the desired seat height and backrest motor (M25m2) for the desired driver-side seat backrest inclination.
The front passenger partially electric seat adjustment switch (S23/1) actuates the motor for the seat height up and down (M26m1) to achieve the desired front passenger seat height and the backrest motor (M26m2) for the desired front passenger seat backrest inclination.
