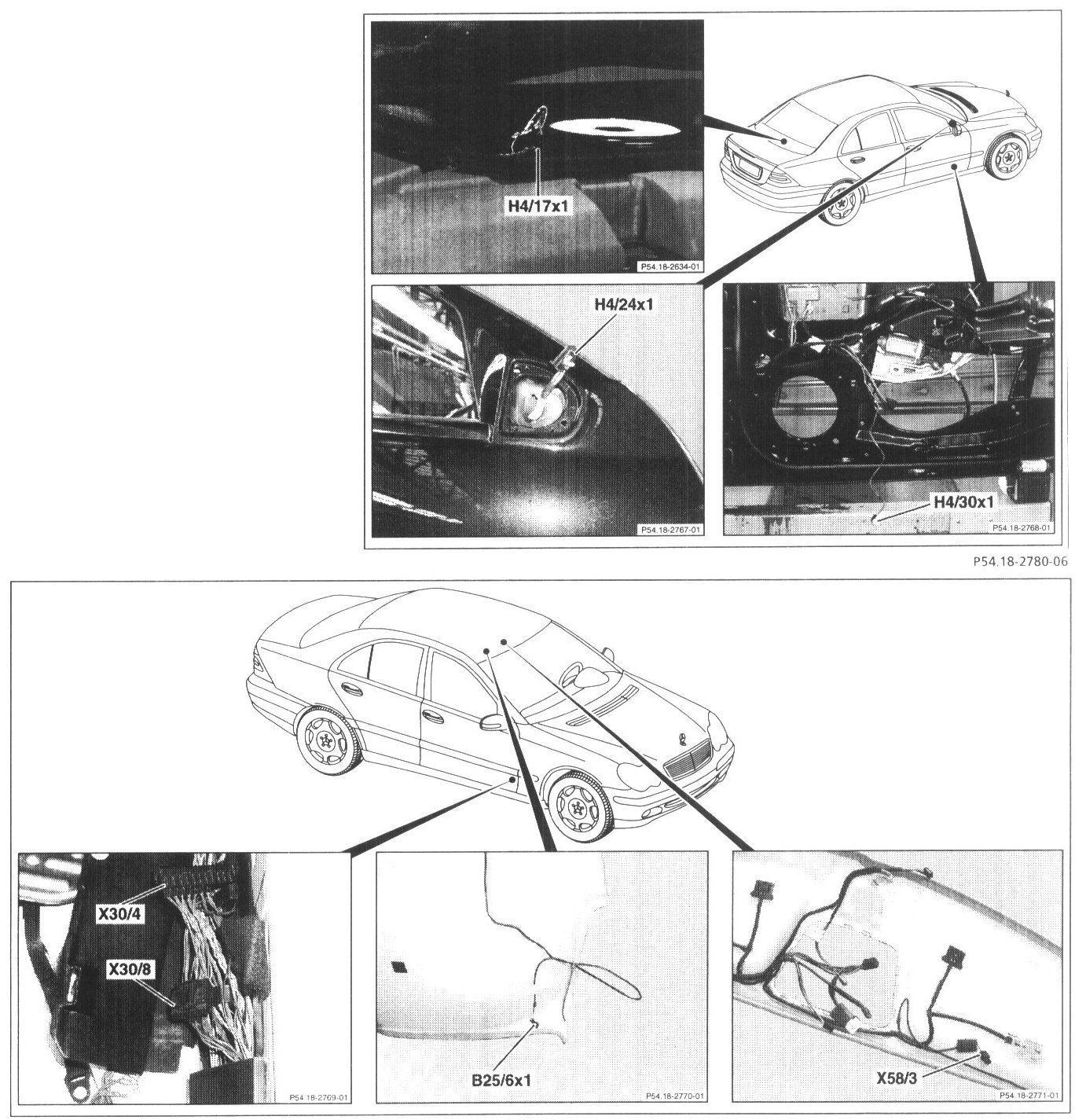

B1.5 - Interior Compartment (Right)
B1.5 - Interior Compartment (Right)

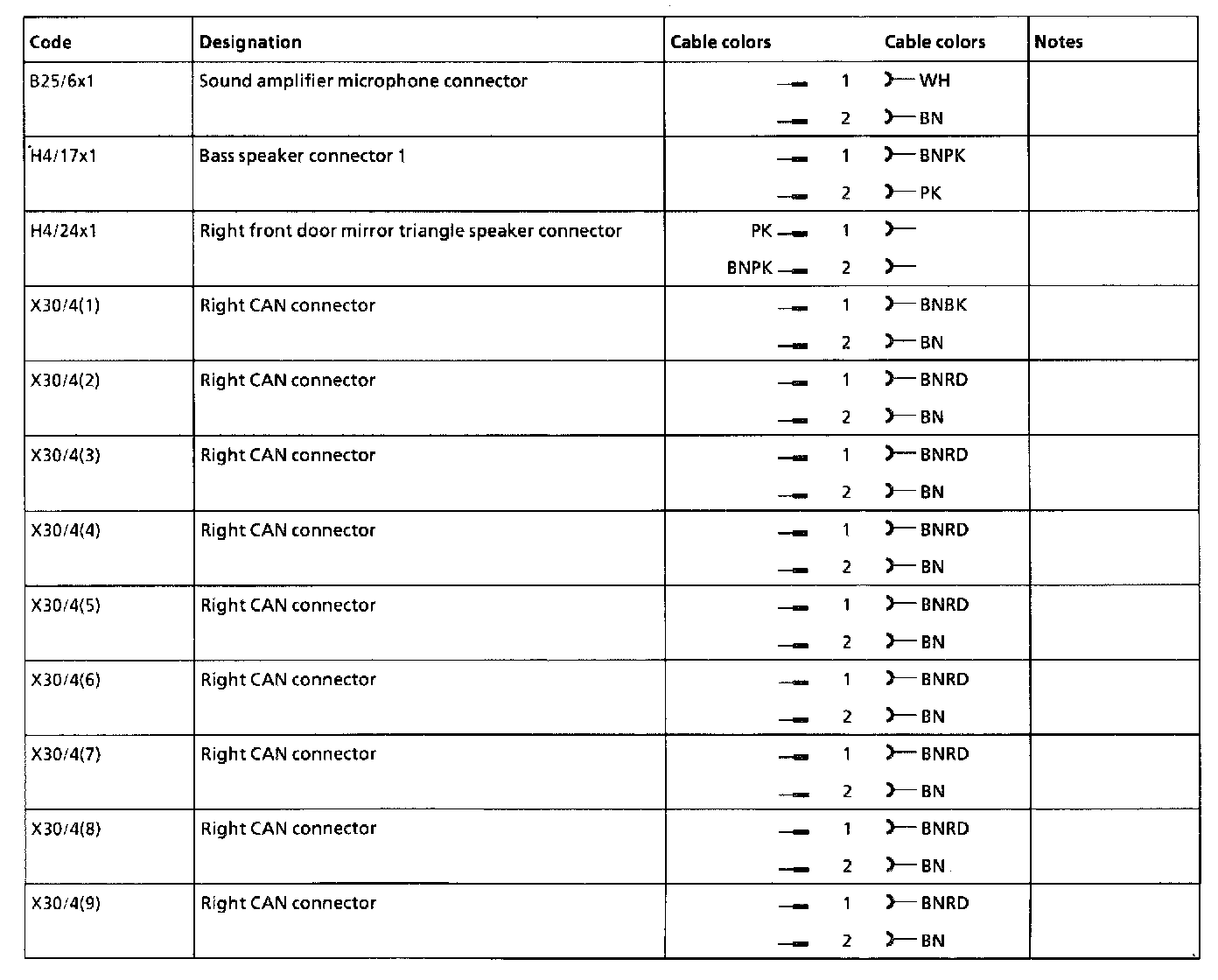

B25/6x1 - X30/4(9):

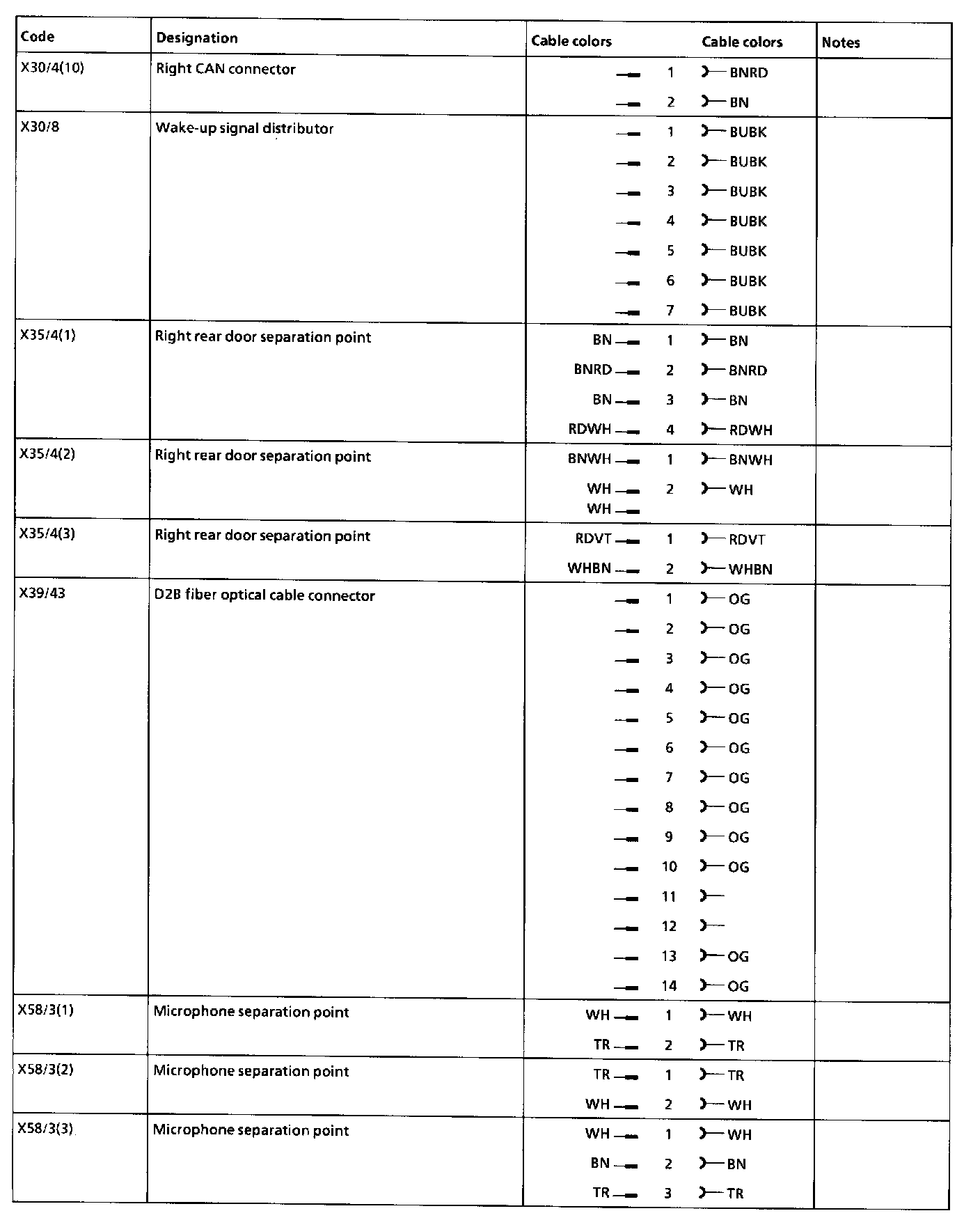

X30/4(10) - X58/3(3):
