Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
C 280 4MATIC (203.092) V6-3.0L (272.941)
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>

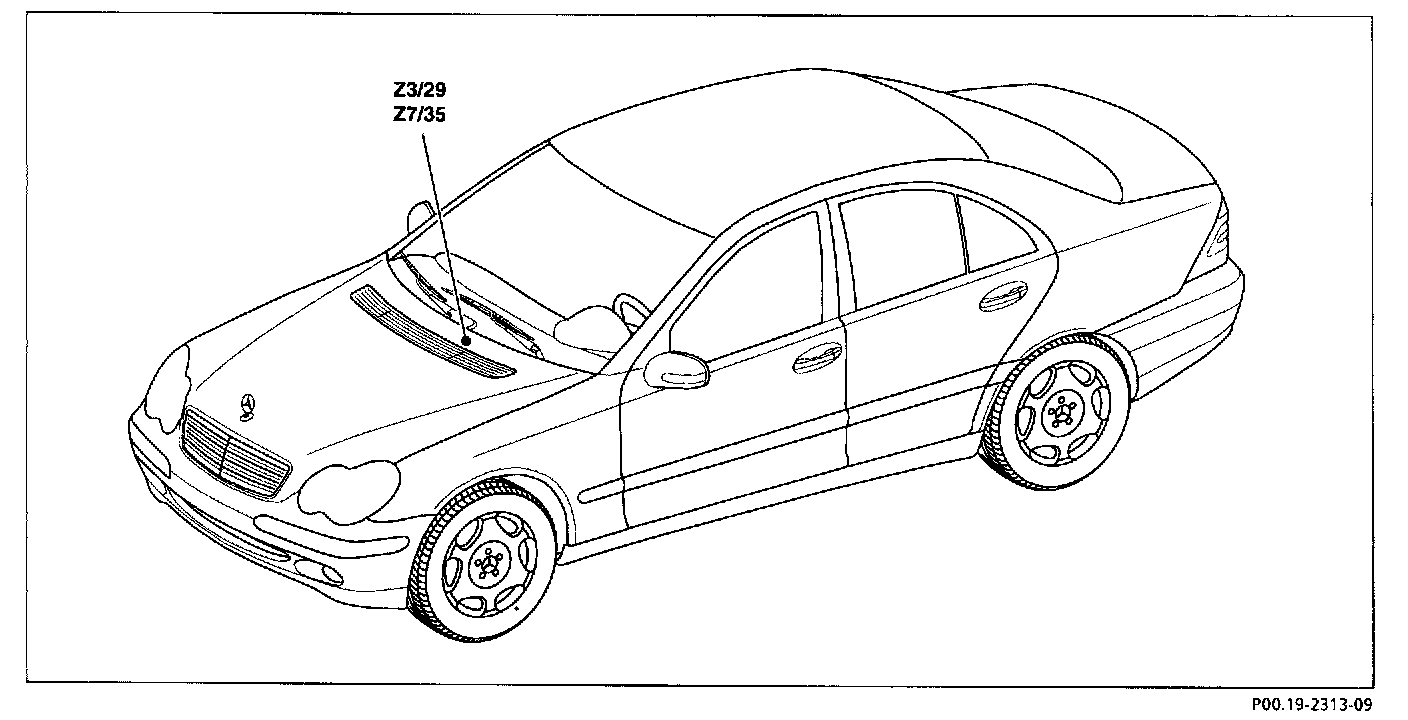

B3.1 - Engine Compartment (Left)
B3.1 - Engine Compartment (Left)

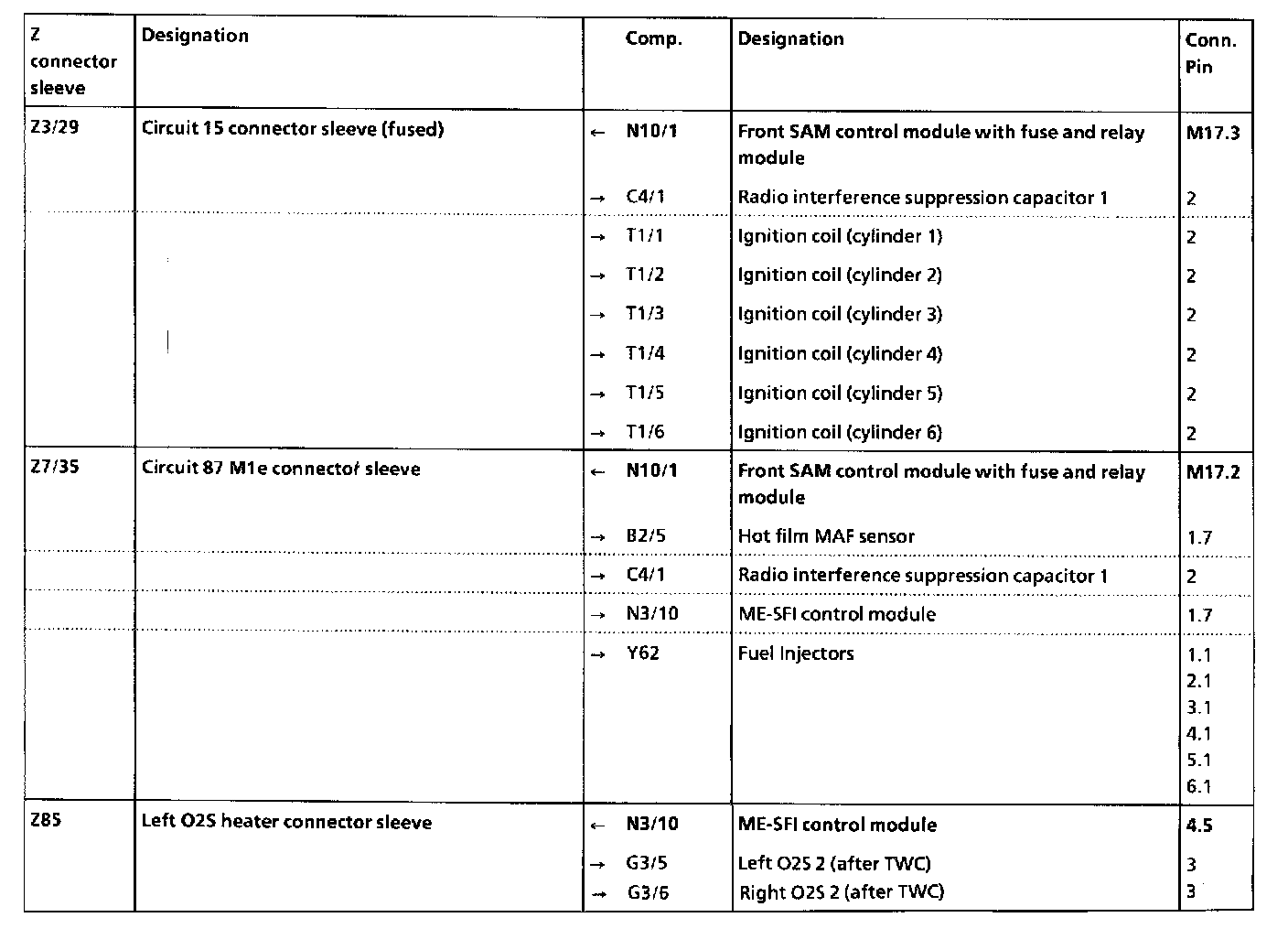

Z3/29 - Z85:
