Air Duct: Service and Repair
AR83.25-P-1401P Remove And Install Air Inlet

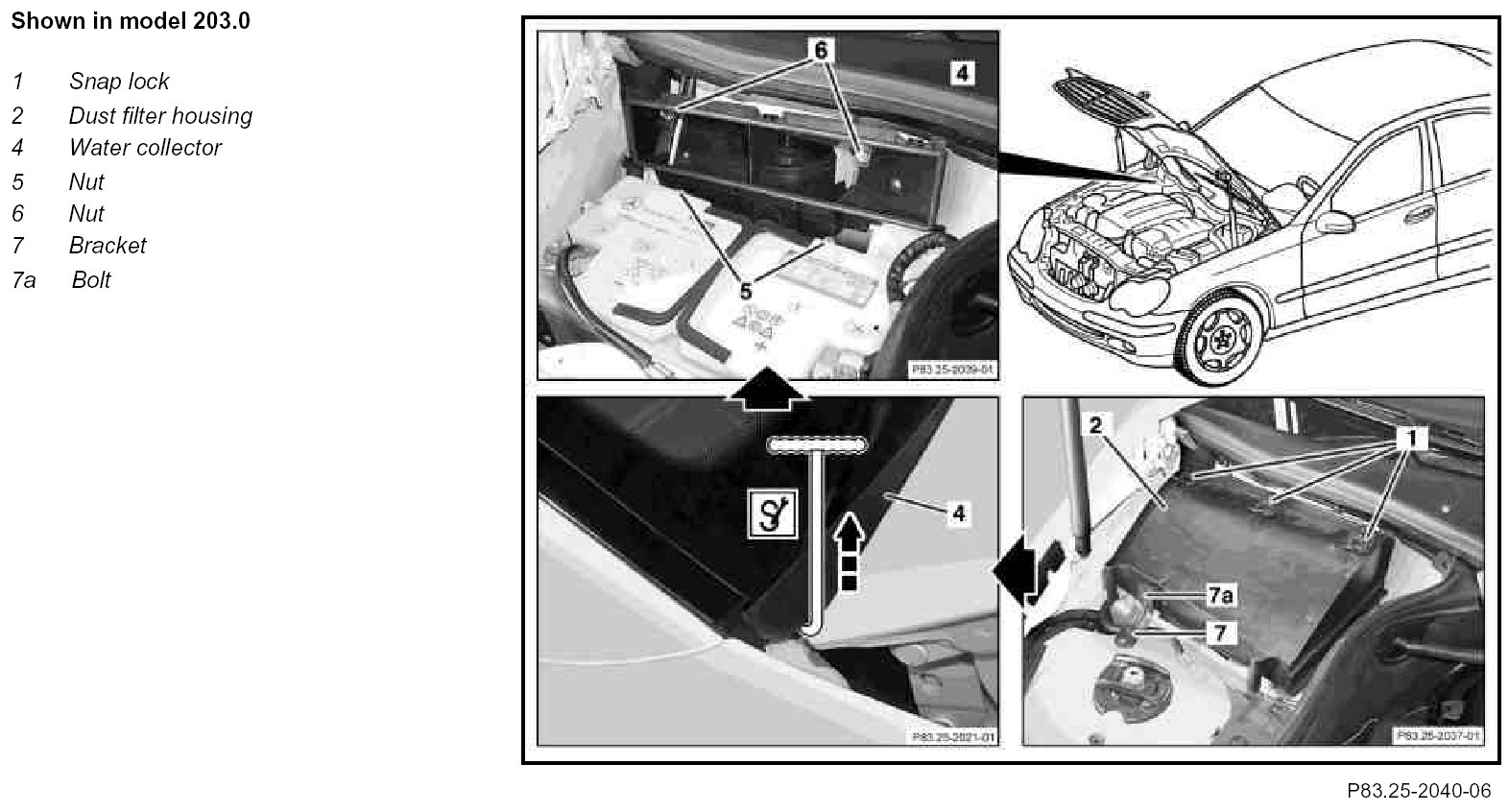

Component Identification:

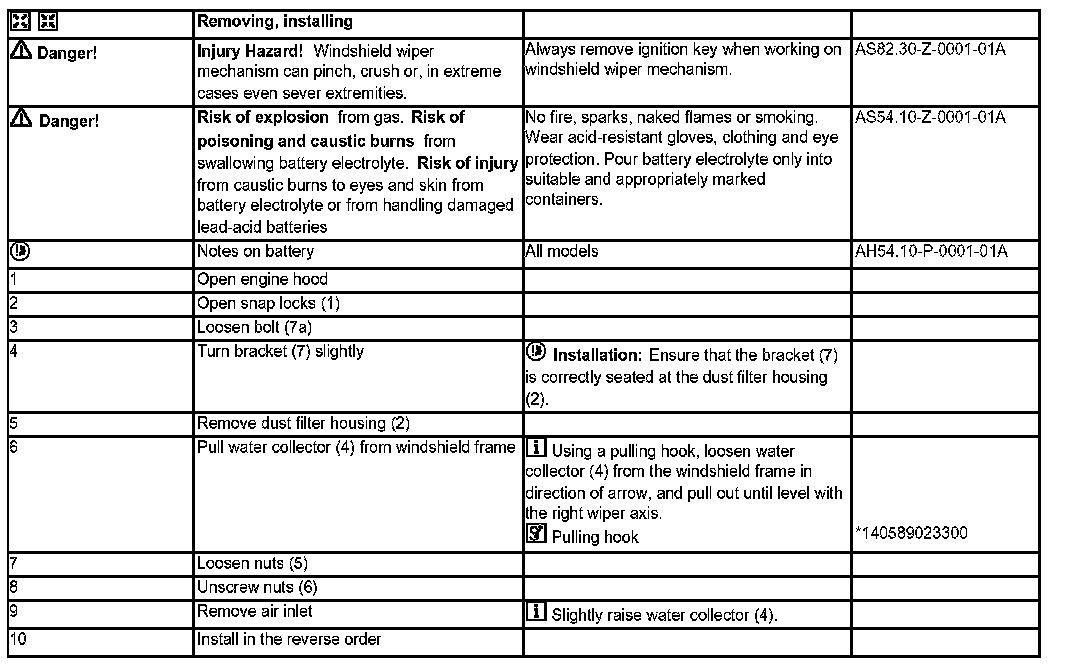

Steps 1 - 10:
Special Tools:
