Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
C 280 4MATIC (203.092) V6-3.0L (272.941)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Dashboard / Instrument Panel
>>
Service and Repair
>>
Procedures
Procedures
AZ68.20-P-0001P Retrofitting CTEL Flank

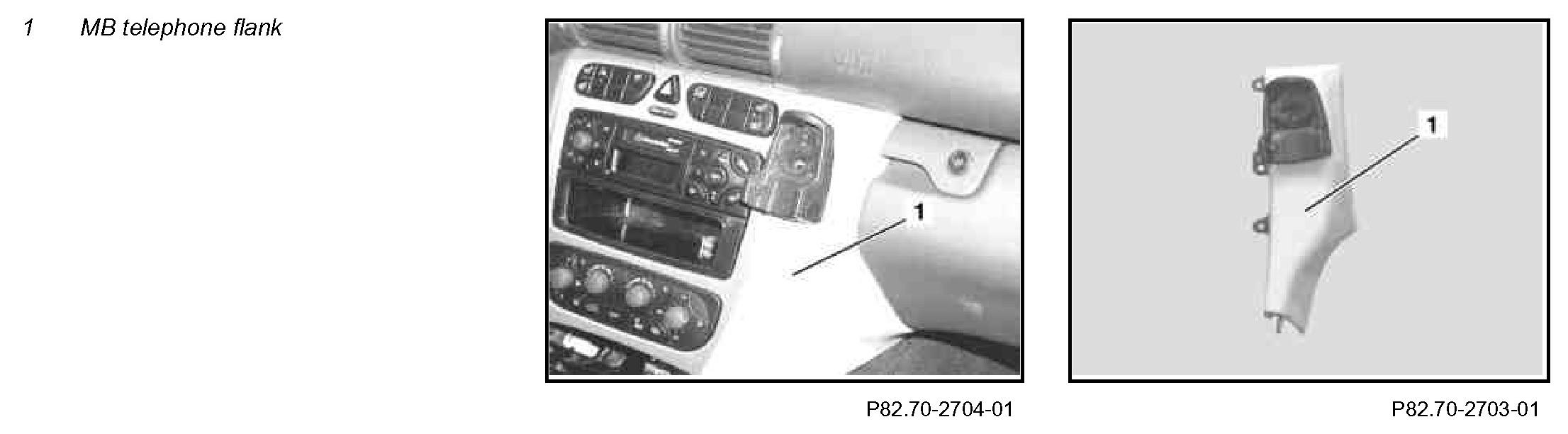

Component Identification:

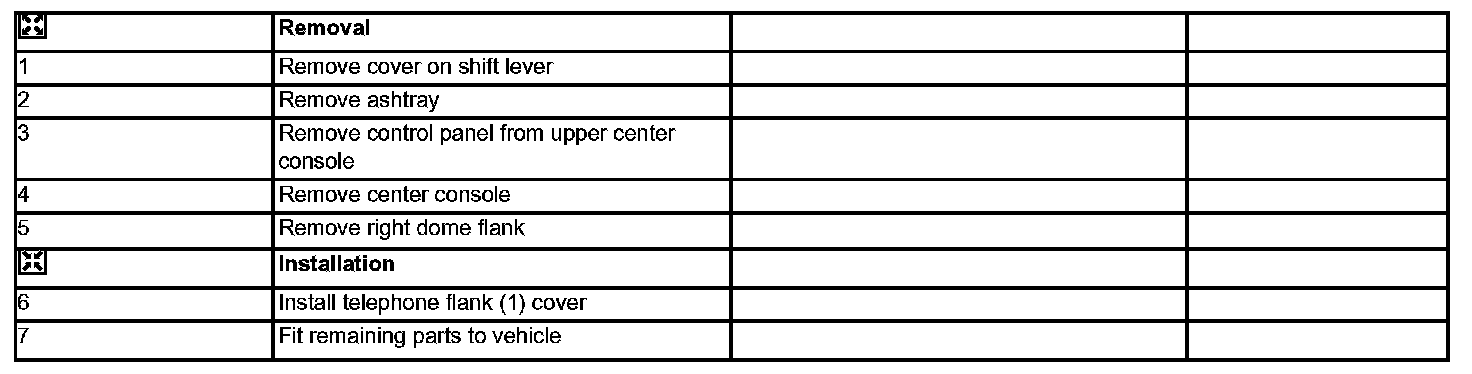

Steps 1 - 7:

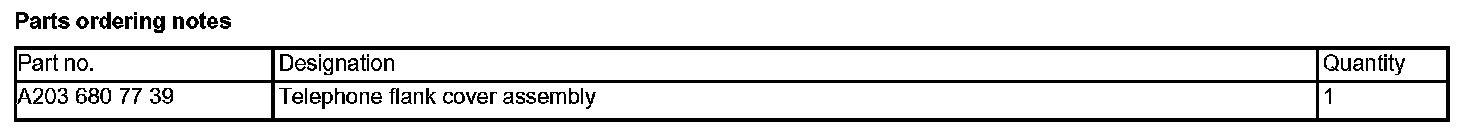

Parts Ordering Notes:
