Exterior Lights PE82.10-U-2000FB (Part 2)

Exterior Lights PE82.10-U-2000FB (Part 2)

��k�"�kwF�kWiring Diagram PE82.10-U-2000FB:

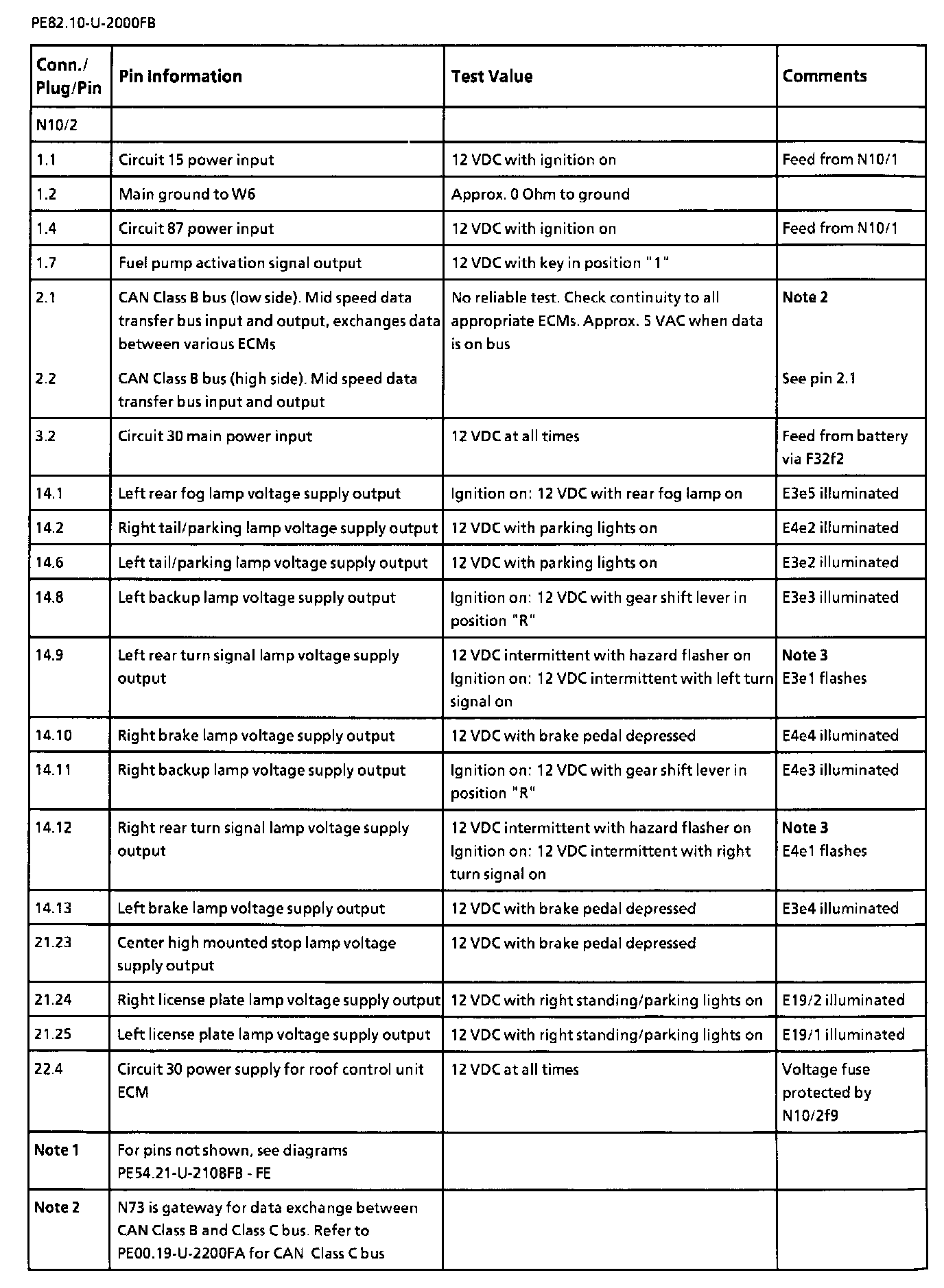

Pin Information, Part 1:

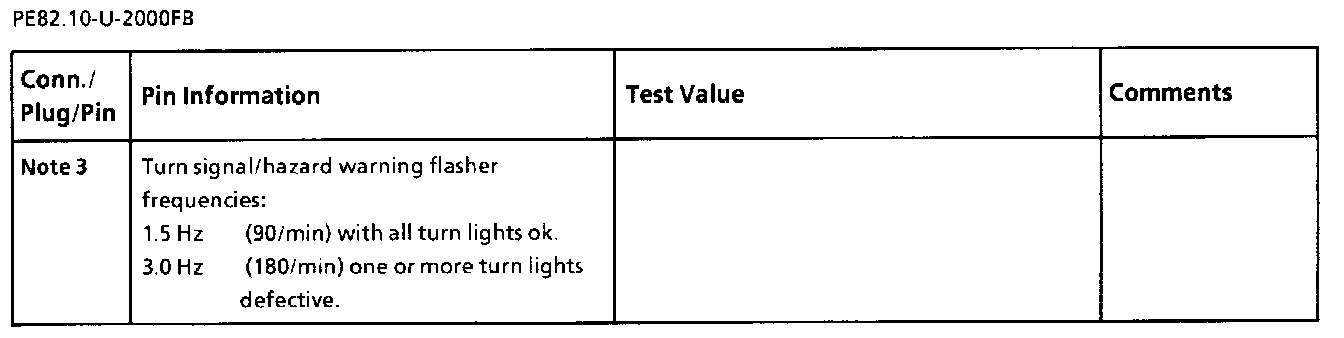

Pin Information, Part 2:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
