GF82.10-P-3006B Fog Lamp Actuation, Function

GF82.10-P-3006B Fog Lamp Actuation, Function

MODEL 203 up to Model Year 8







Fog lamp actuation, function
1 interior CAN.
E1e2 Low beam
E1e3 Side light and parking light
E2e2 Low beam
E2e3 Side light and parking light
E3e2 Tail light and parking light
E4e2 Tail light and parking light
E5/1 Left fog lamp
E5/2 Right fog lamp
E19/1 Left license plate lamp
E19/2 Right license plate lamp
N10/1 Front SAM control module with fuse and relay module
N10/2 Rear SAM control module with fuse and relay module
S1 Lamp switch module
S1e1 Fog lamp indicator lamp

Operating procedure
Basic requirements:
- The exterior lamp switch in the lamp switch module (S1) is in position "Headlamps ON" or "Side lights ON".

1 The exterior lamp switch (S1s1) of the light switch module (S1) is pulled out to 1st. notch position "fog lamp ON".
2 The green fog lamp indicator lamp (S1e1) on the light switch module (S1) lights and indicates actuation of the fog lamp.
3 The front SAM control module with fuse and relay module (N10/1) records along with the "headlamps ON" or "standing lamp ON" position the "fog lamp ON" signal.
4 The front SAM control module with fuse and relay module (N10/1) actuates the left fog lamp (E5/1) and right fog lamp (E5/2).

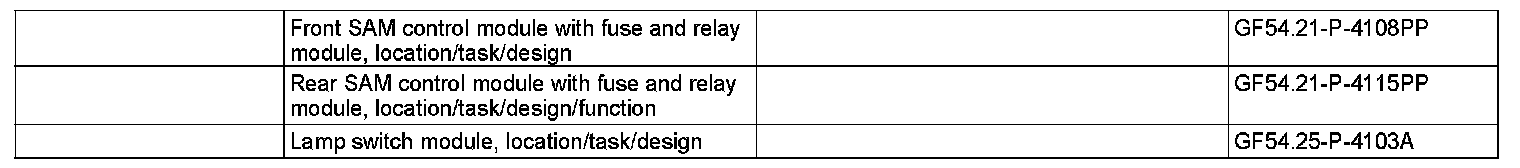

Main beam
Except in the national versions (United States of America) (CDN), the fog lamps and the high beam can be actuated simultaneously. In (United States of America) (CDN) versions, the actuation triggered first has priority.
