BF83.30-P-1000-01B Air Conditioning
Modification notes
Modification Notes:

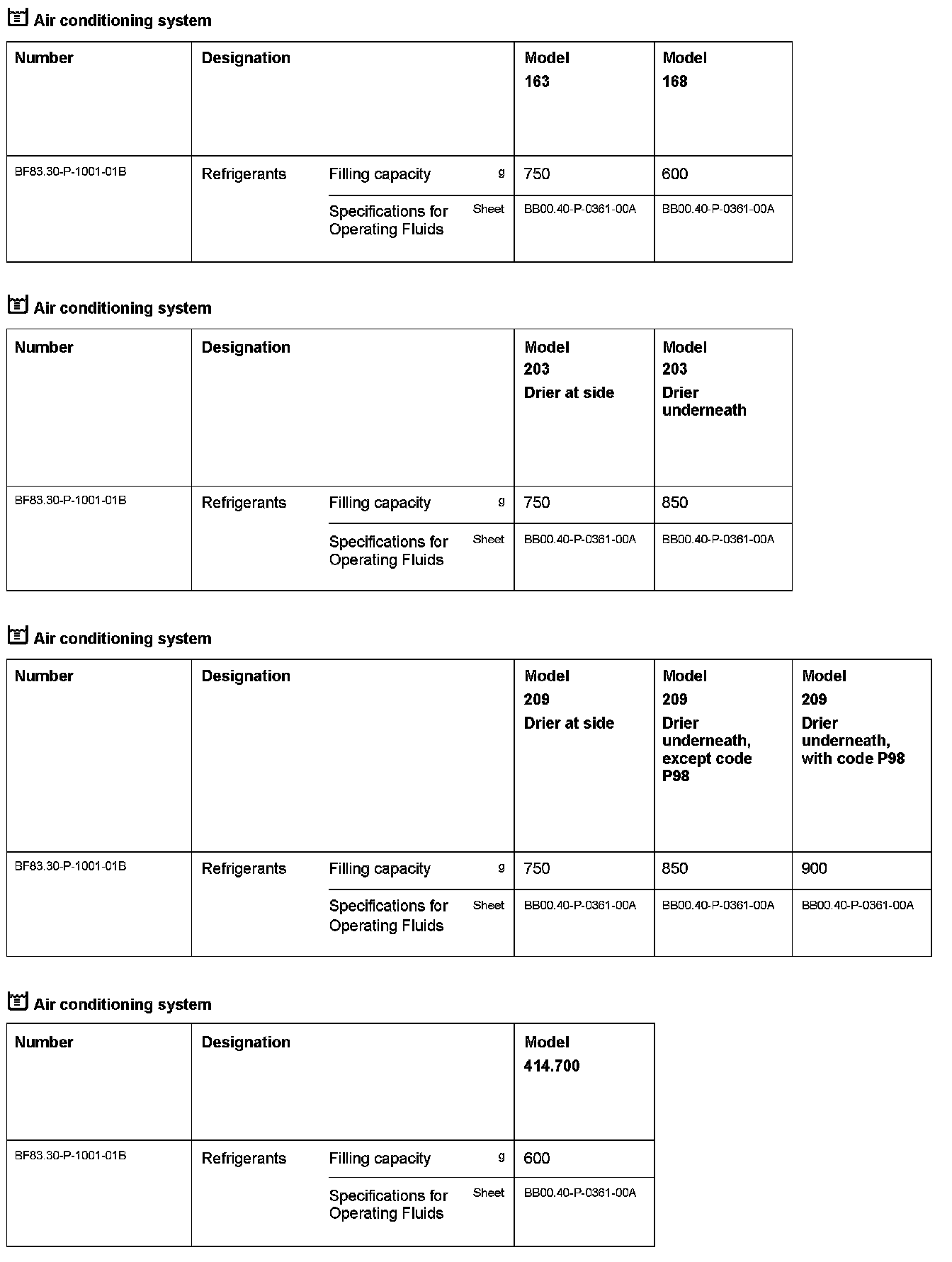

Air conditioning system
Air Conditioning System:
