Specifications
>>
Mechanical Specifications
>>
Alignment
>>

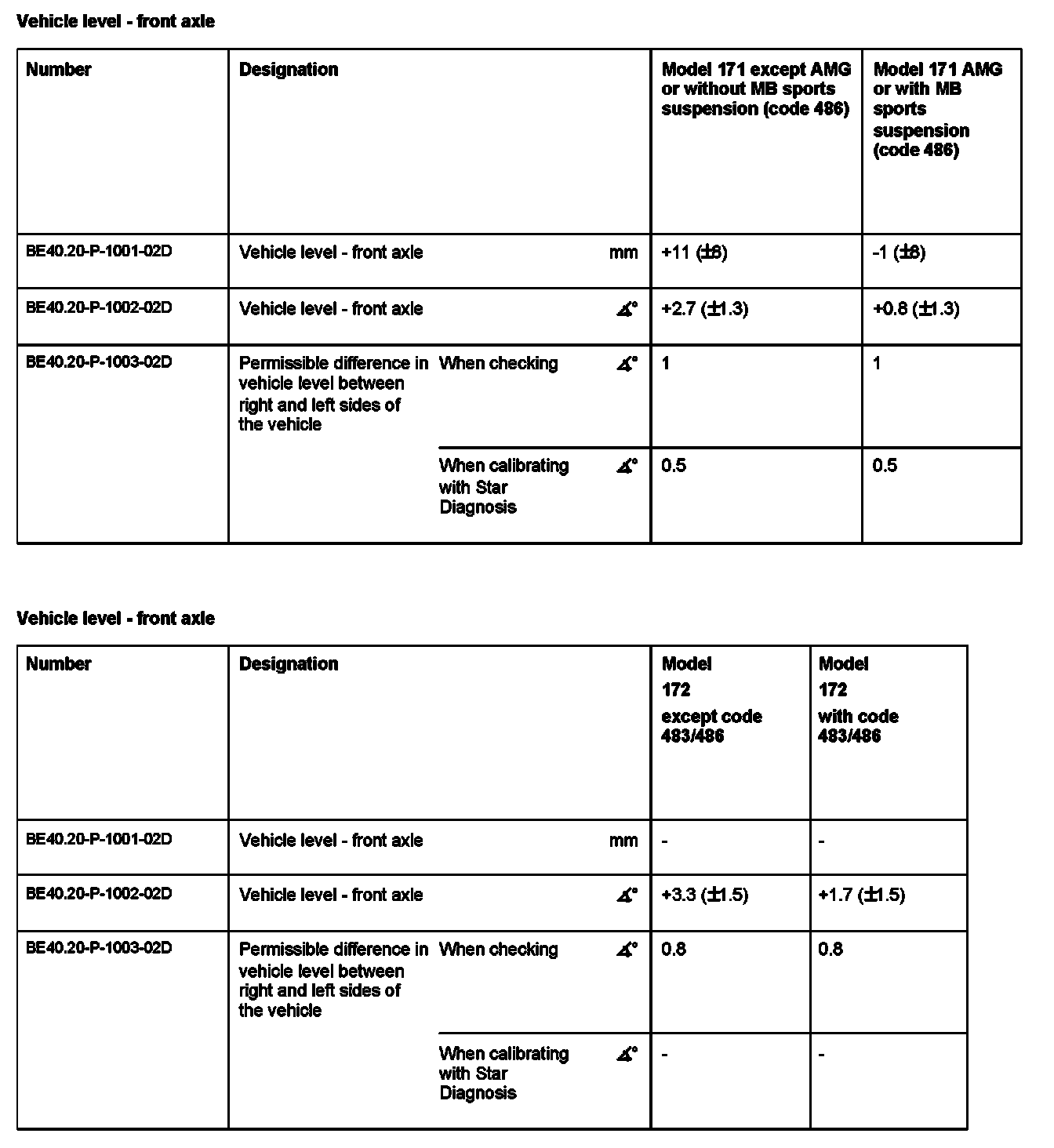

BE40.20-P-1000-02D Vehicle Level - Front Axle
BE40.20-P-1000-02D Vehicle Level - Front Axle
BE40.20-P-1002-02D Vehicle Level - Front Axle
