BE28.50-P-1000-01B Transfer Case Gear Set, Shafts
BE28.50-P-1000-01B Transfer Case Gear Set, Shafts
BE28.50-P-1000-01B
Transfer case
gear set, shafts

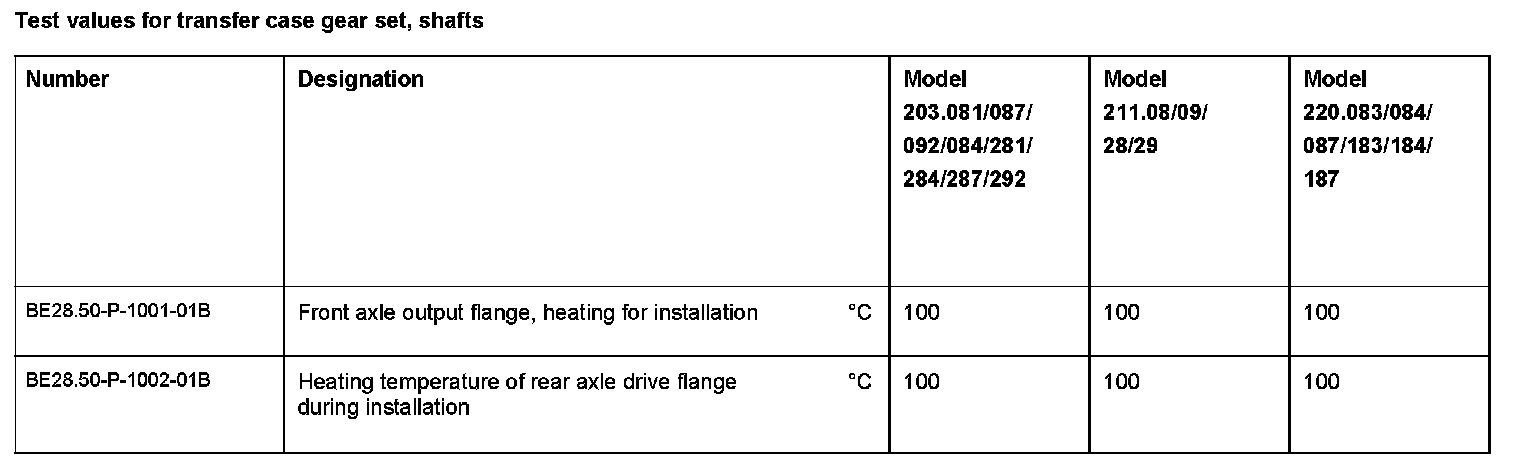

Test Values For Transfer Case Gear Set, Shafts:
