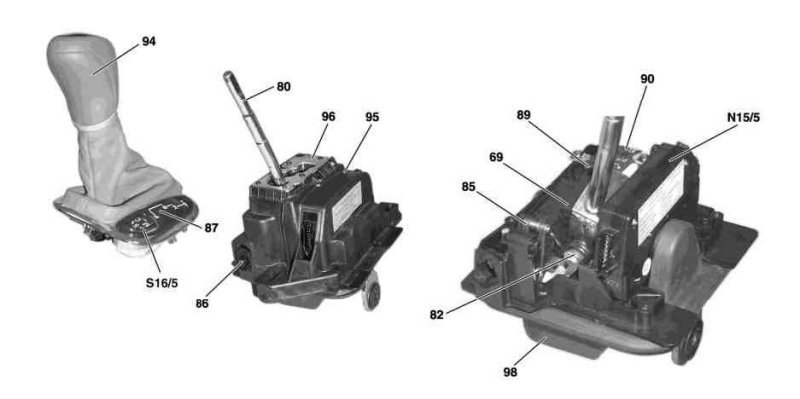

GF27.10-P-0001-04NPL Automatic Transmission (AT), Location of Components, Floor Shift

GF27.10-P-0001-04NPL Automatic Transmission (AT), Location of Components, Floor Shift
- Transmission 722.9 in model 203 with code (428) steering wheel shift buttons





69 Locking lever
80 Selector lever
82 Return spring
85 Spring of shift detent mechanism
86 Connection for ignition lock cable
87 Shift pattern display
89 R/P locking solenoid
90 Lever for Shift-Lock-Override
94 Selector lever handle
95 Flap for Shift-Lock-Override
96 Touch shift module ±
98 R/P-lock return spring

N15/5 Electronic selector lever module control unit
S16/5 Transmission mode switch
