AR25.10-P-0050P Remove/install clutch
Component Identification:
Modification notes:

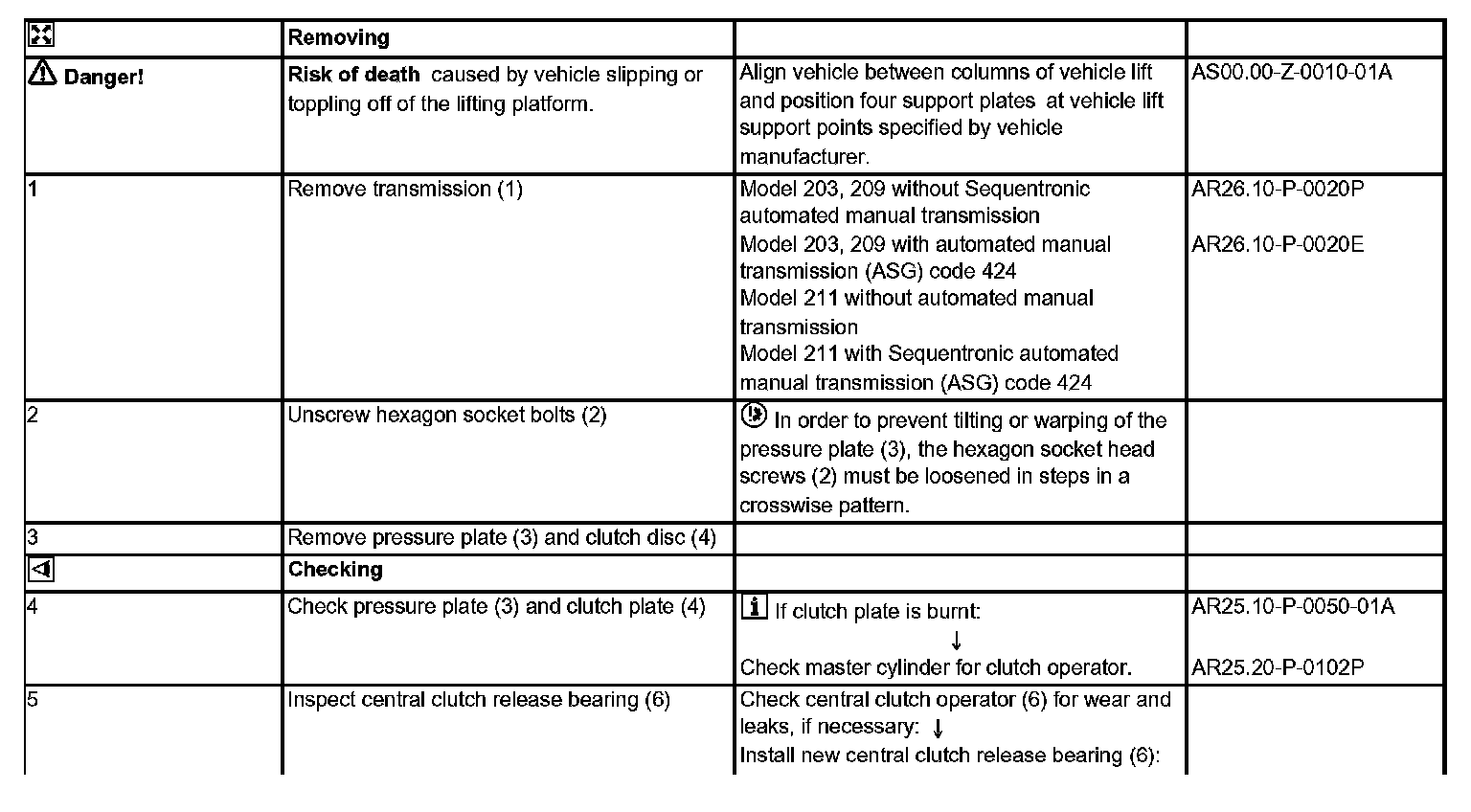

Steps 1-5:

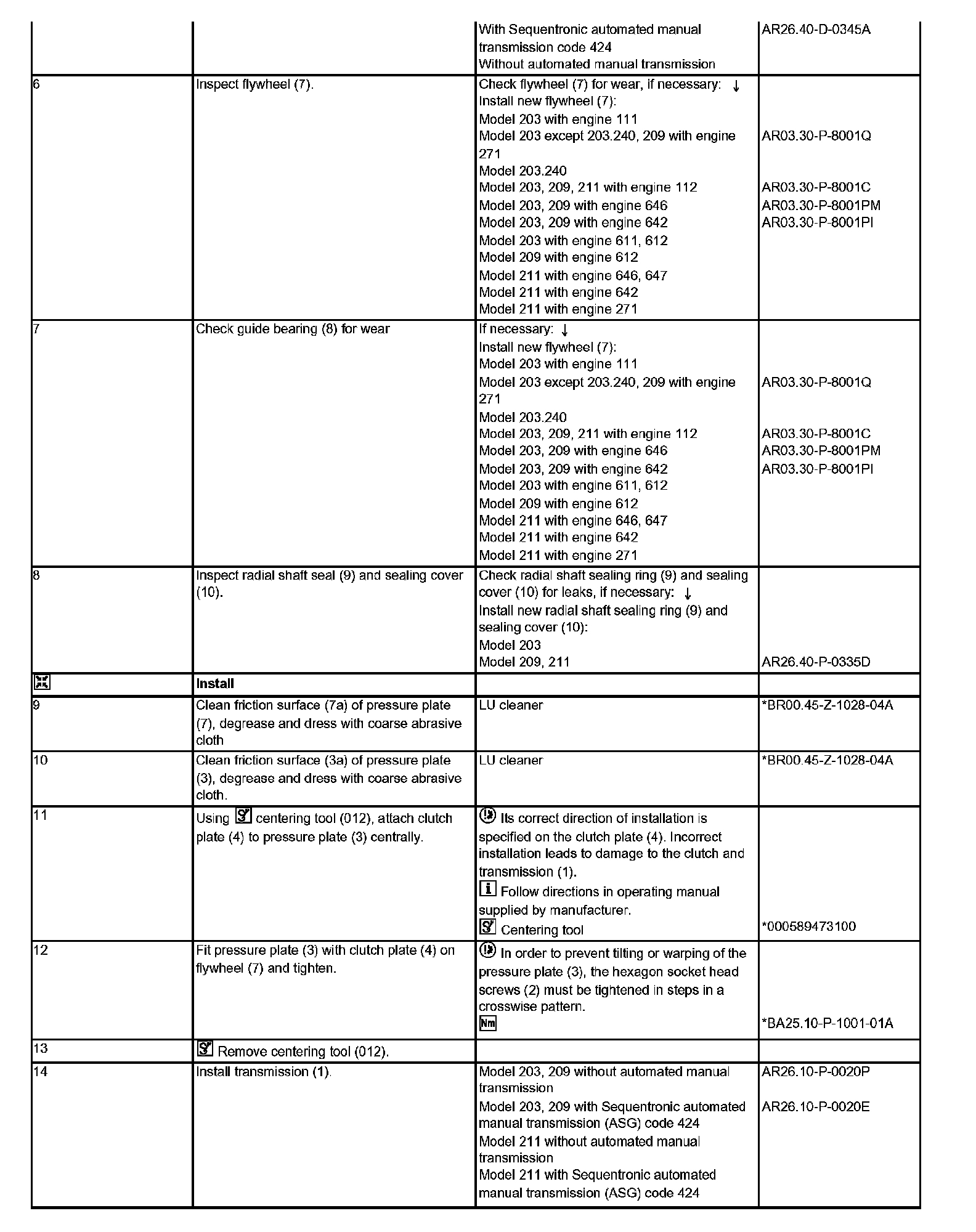

Steps 5 (Continued)-14:
Clutch:

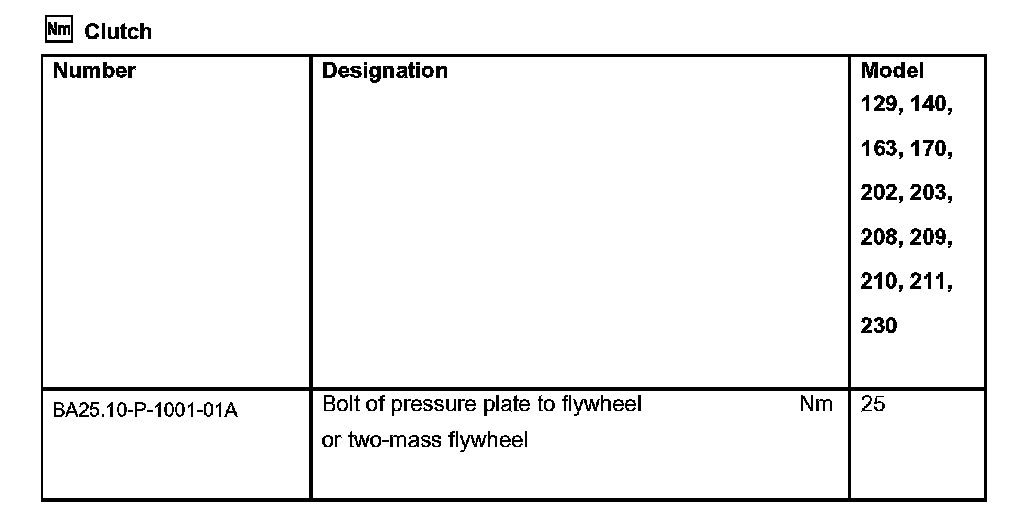

Special Tools:

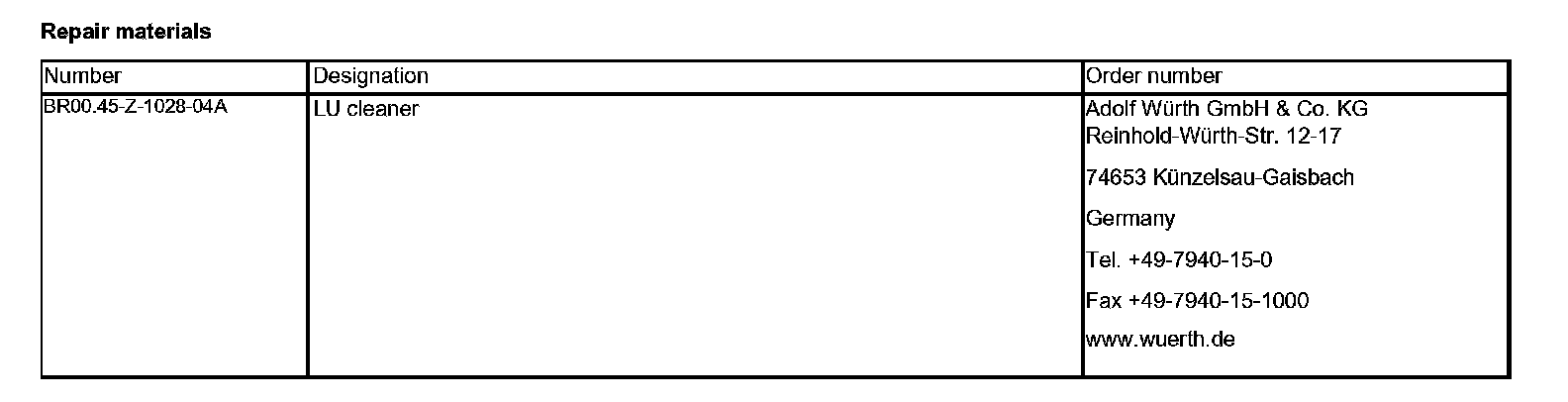

Repair materials:
